Solenoid Valve Operation Chart

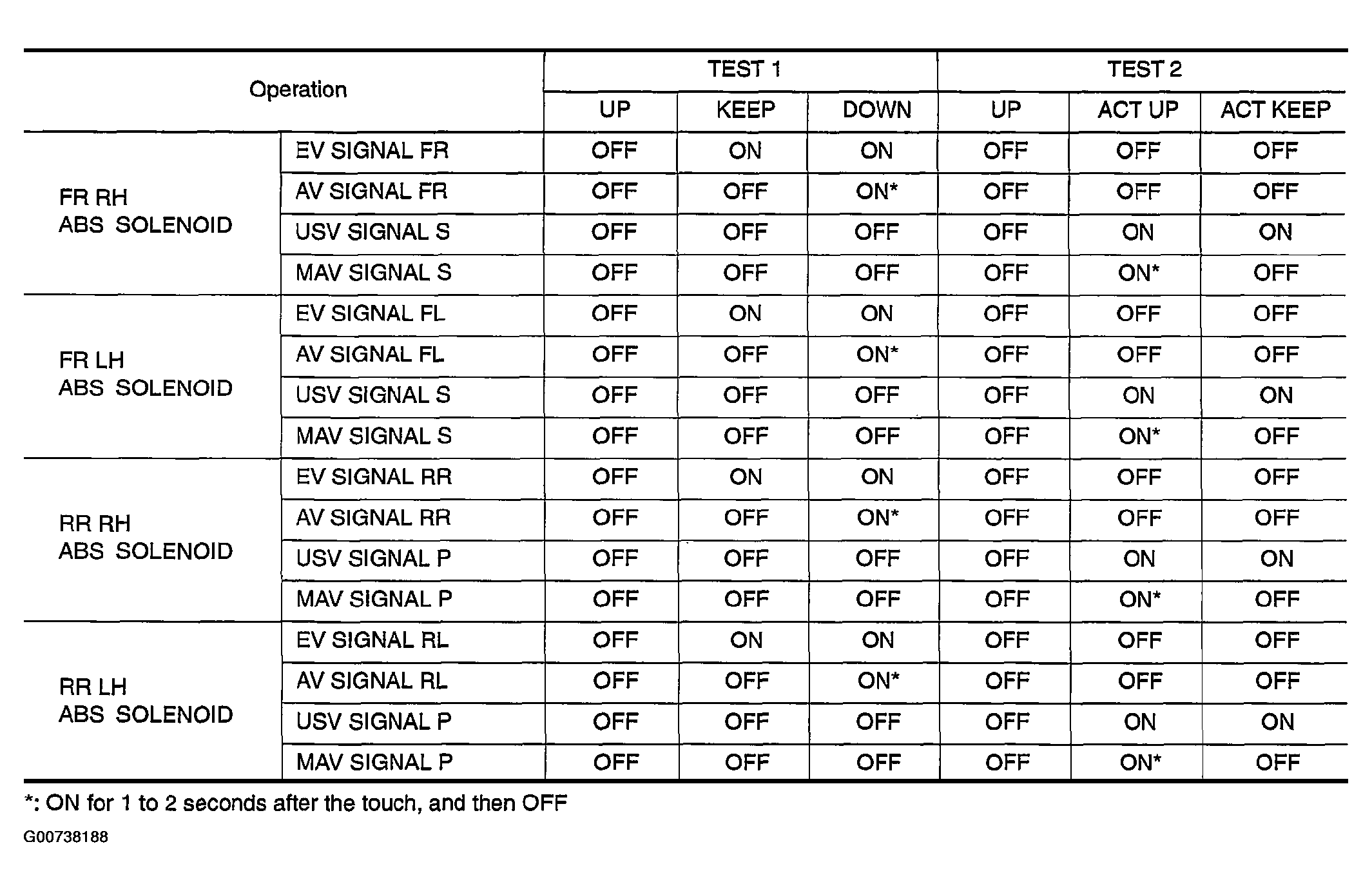

Fig 1: Displaying Solenoid Valve Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST STOP" is displayed approximately 6 seconds after operation starts.
After "TEST STOP" is displayed, to perform test again, repeat step 6.
