Wiring Diagram - SW/Ill -

NOTE: For wiring diagram references to PG-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION .

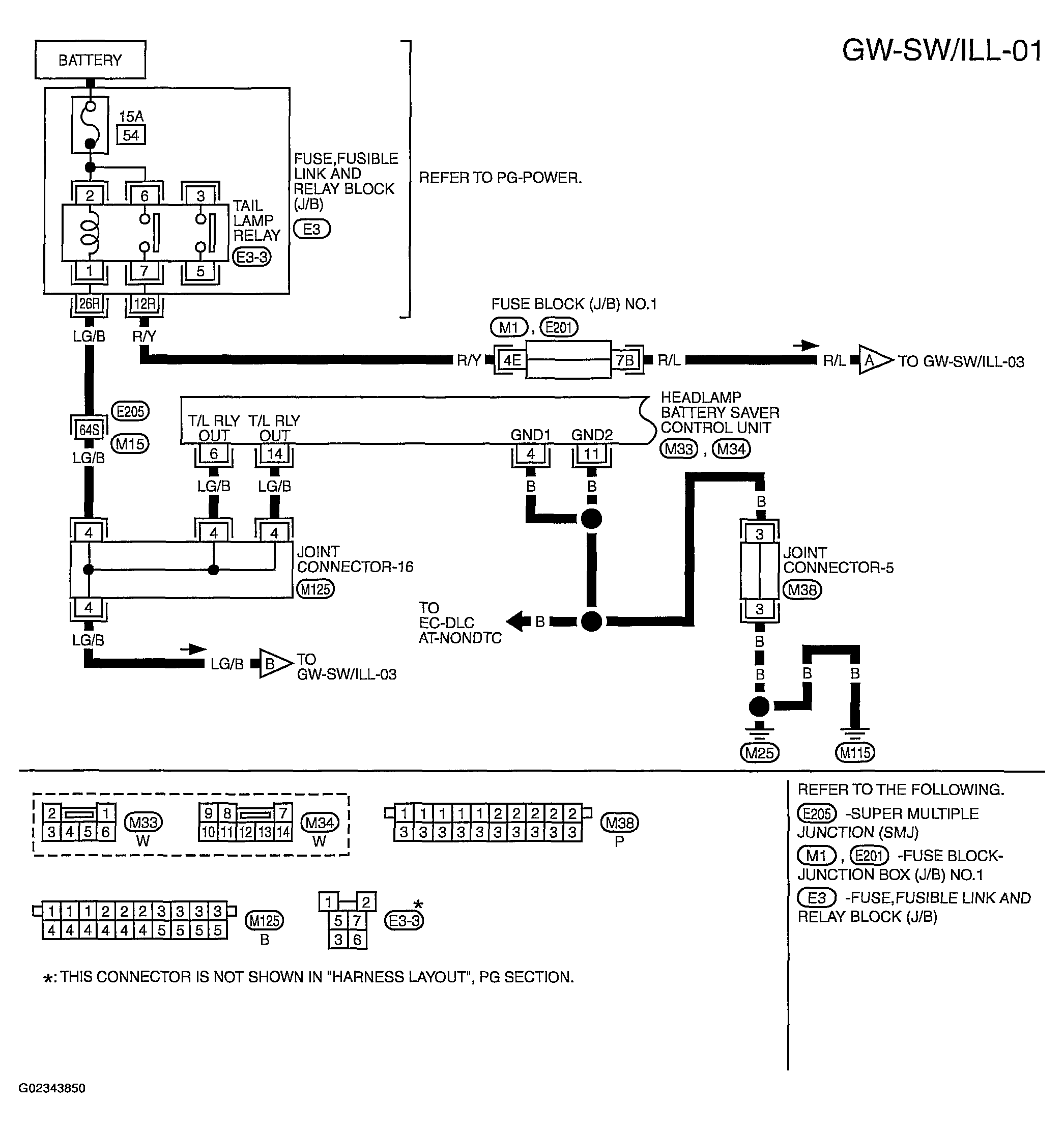

Fig 1: Power Window Switch Illumination Wiring Diagram And Identifying Connectors - GW-SW/ILL-01

Courtesy of NISSAN MOTOR CO., U.S.A.

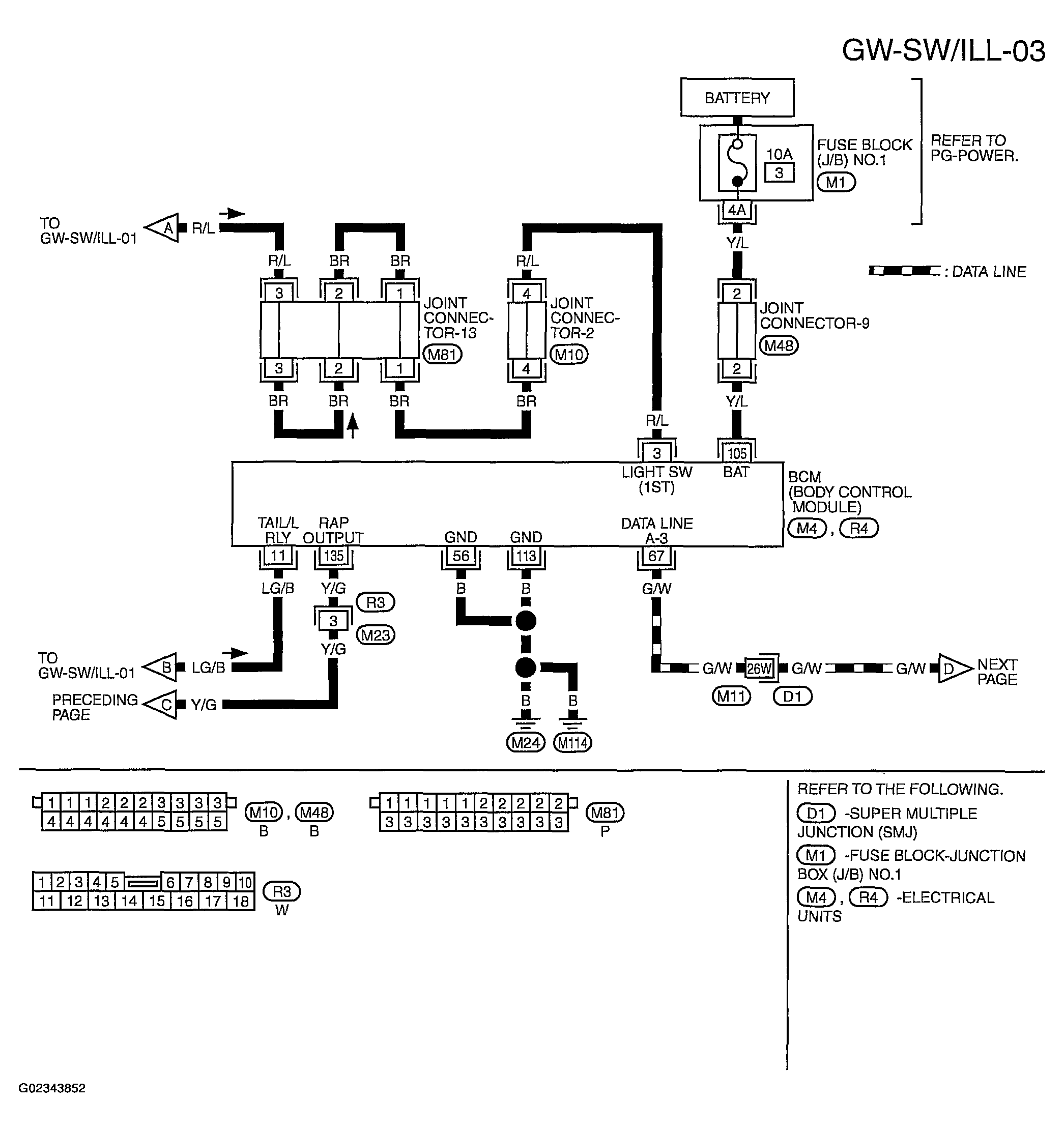

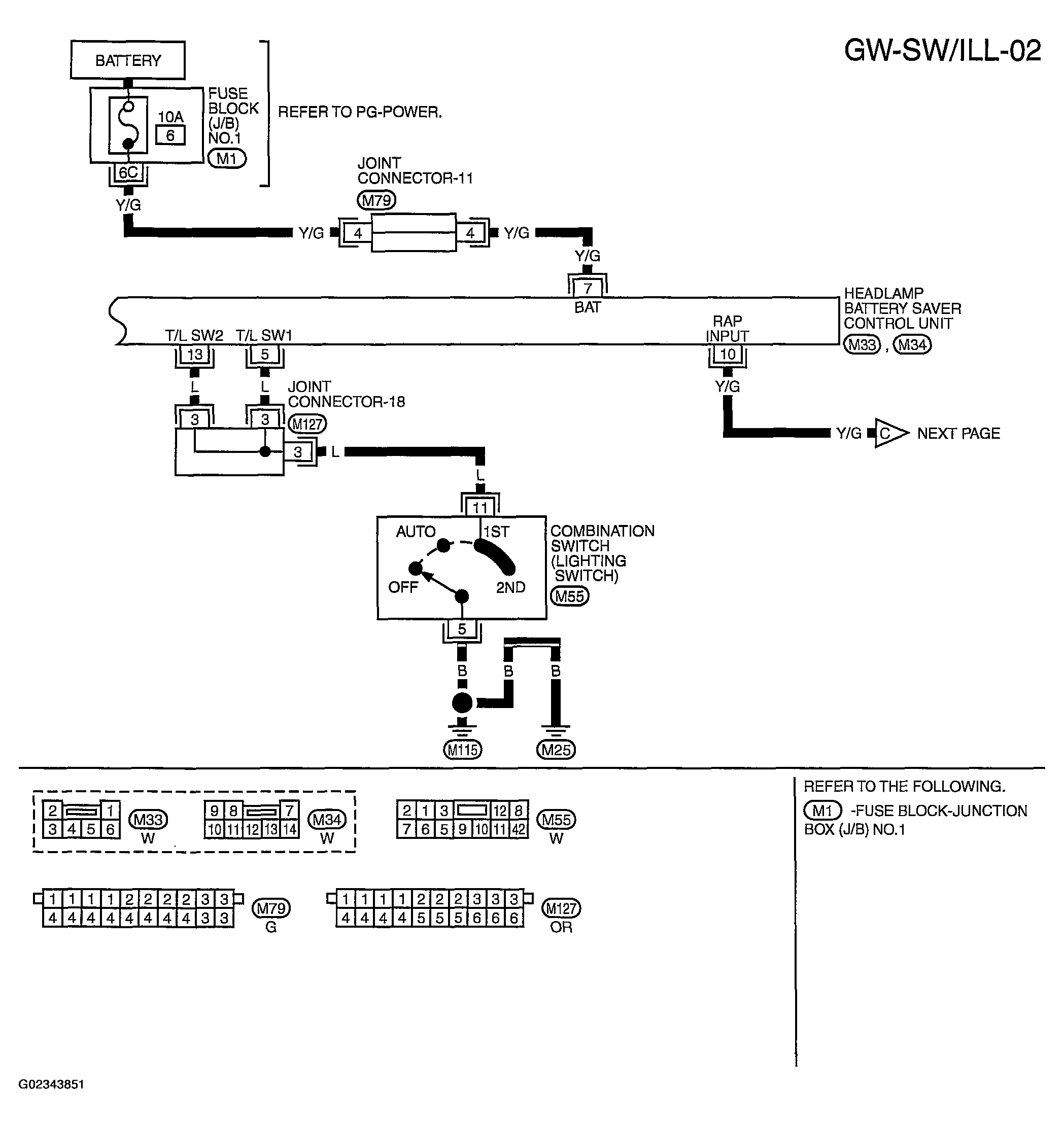

Fig 2: Power Window Switch Illumination Wiring Diagram And Identifying Connectors - GW-SW/ILL-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Power Window Switch Illumination Wiring Diagram And Identifying Connectors - GW-SW/ILL-03

Courtesy of NISSAN MOTOR CO., U.S.A.

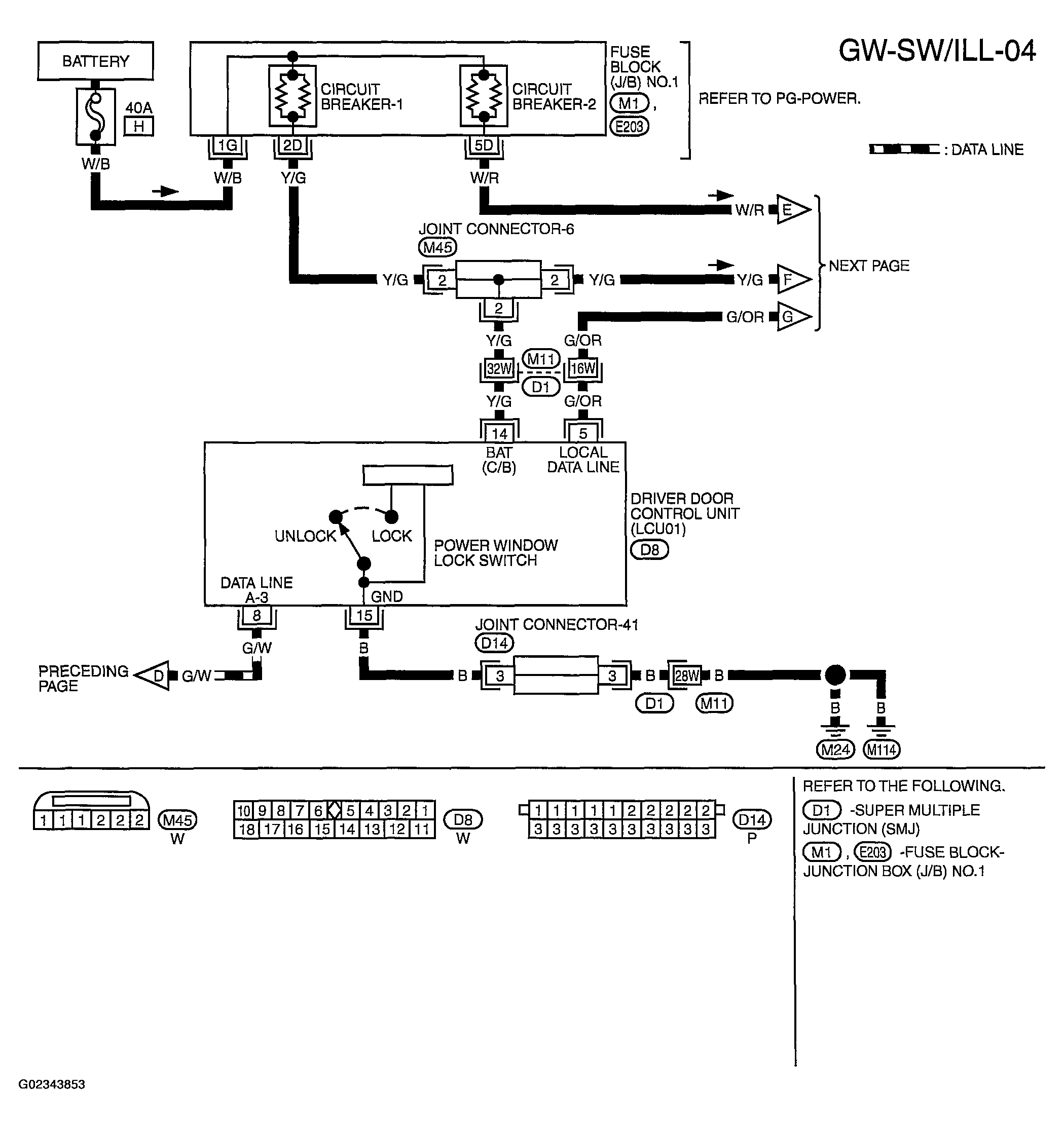

Fig 4: Power Window Switch Illumination Wiring Diagram And Identifying Connectors - GW-SW/ILL-04

Courtesy of NISSAN MOTOR CO., U.S.A.

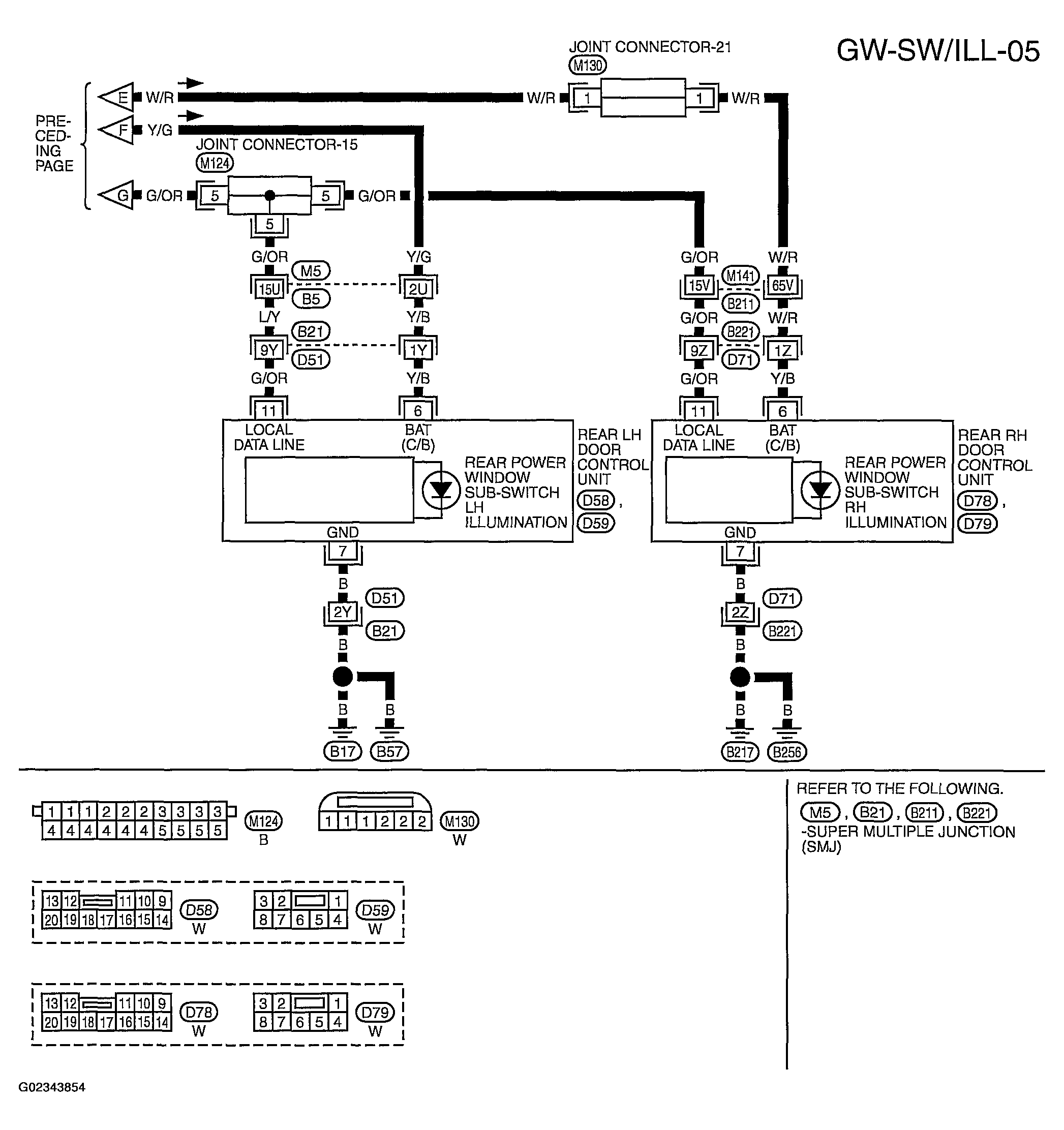

Fig 5: Power Window Switch Illumination Wiring Diagram And Identifying Connectors - GW-SW/ILL-05

Courtesy of NISSAN MOTOR CO., U.S.A.
