Diagnostic Procedure

With CONSULT-II:

1. Start engine.
2. Select "MAIN SIGNALS" in "DATA MONITOR" mode for A/T with CONSULT-II and read out the value of "GEAR".

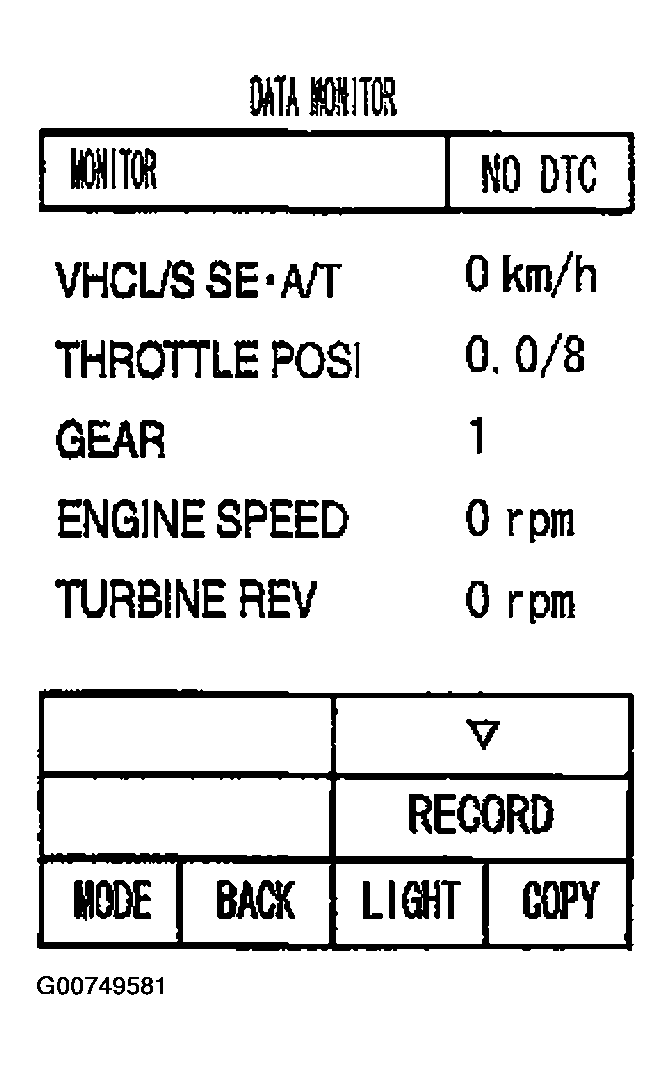

   Fig 1: Viewing ECU Input Signals In DATA MONITOR Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Drive vehicle in the manual mode, and confirm that the actual gear position and the meter's indication of the position mutually coincide when the select lever is shifted to the "+ (up)" or "- (down)" side (1st --> 5th gear).

OK or NG

1. OK : Inspection end.

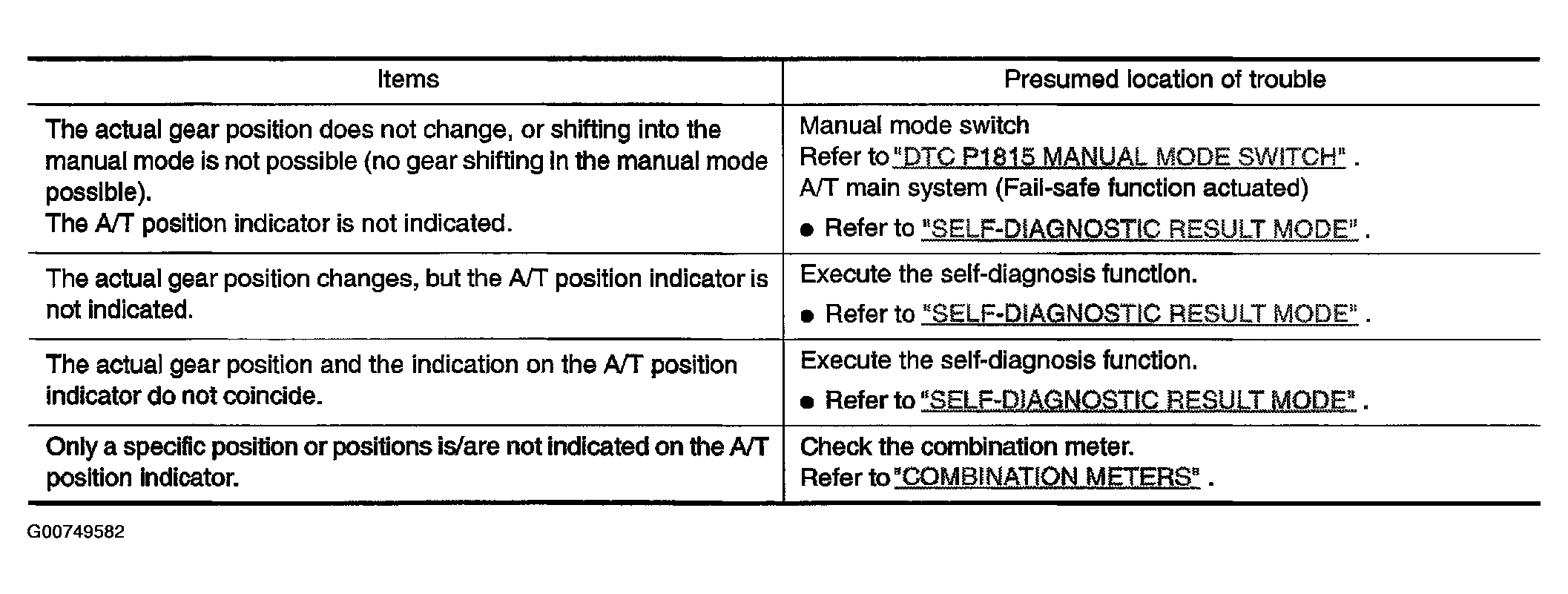

2. NG : Check the following items.
