Removal And Installation: Installation

In following items with care, install components in reverse order of removal. Refer to REMOVAL AND INSTALLATION  .

• Confirm rear cover cap on steering gear consists with steering gear when front wheels are set in straight ahead direction as shown.

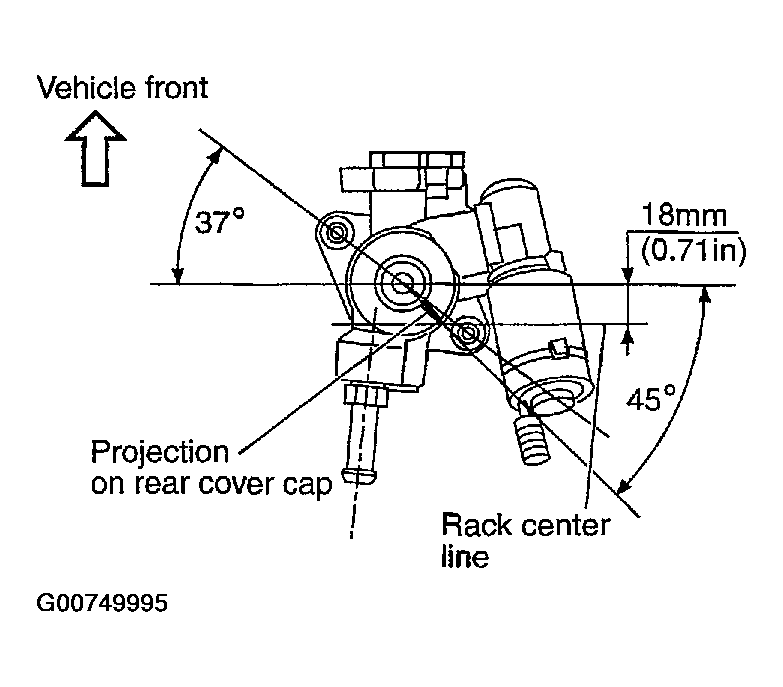

  Fig 1: Confirming Steering Gear Consists When Front Wheels Are Straight Ahead

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Tighten steering gear assembly as shown.

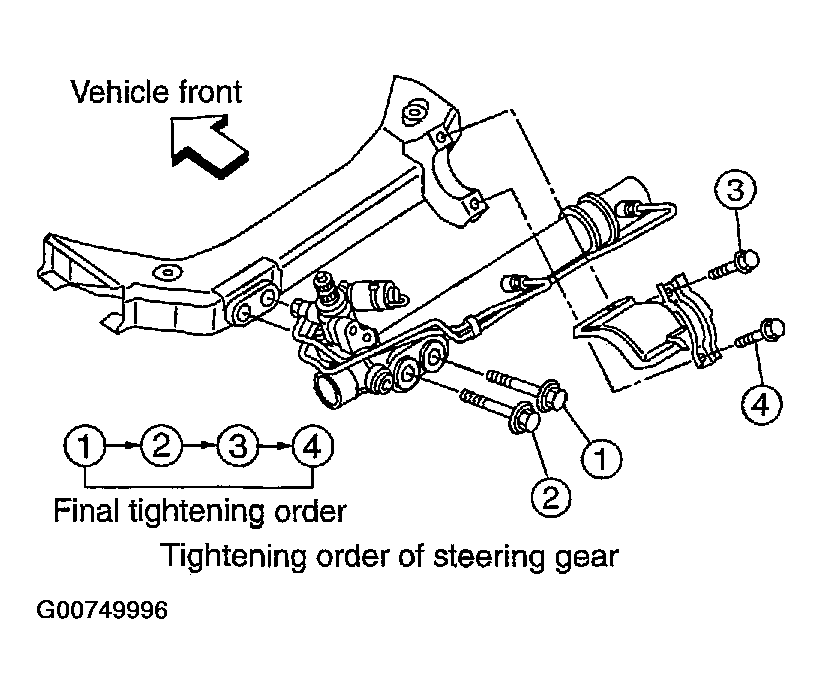

  Fig 2: Tightening Steering Gear Assembly

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Confirm if slit of lower yoke of lower joint fits with projection on rear cover cap.
• After installation, bleed air from piping. Refer to AIR BLEEDING FROM HYDRAULIC SYSTEM  .

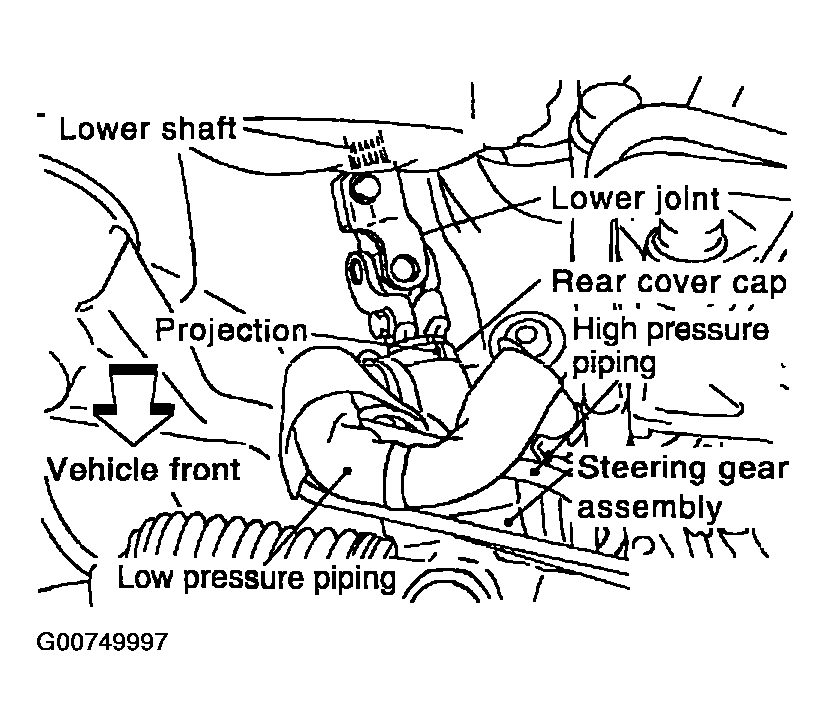

  Fig 3: Identifying Steering Assembly Components

  Courtesy of NISSAN MOTOR CO., U.S.A.
