System Description

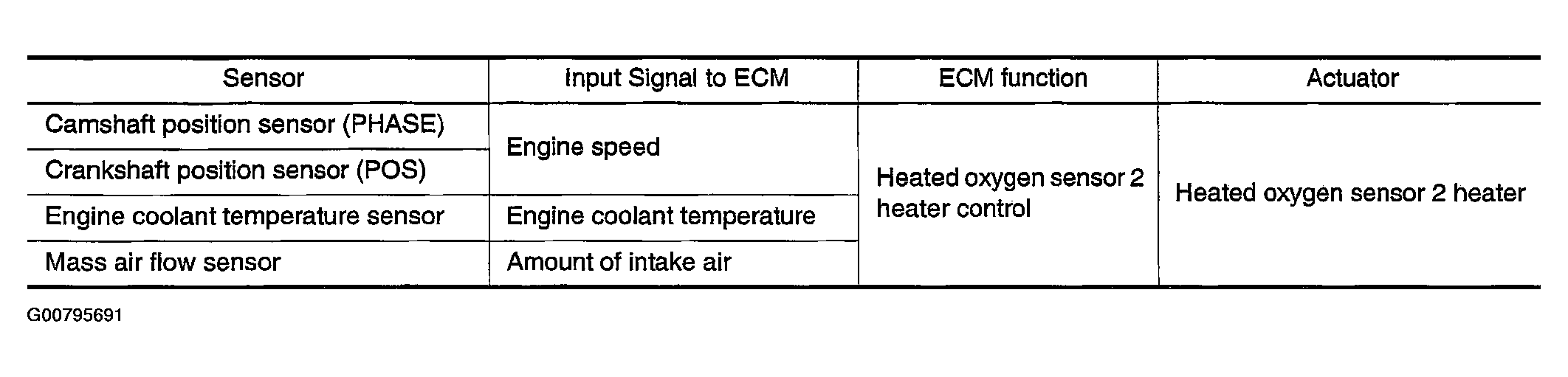

Fig 1: Identifying System Description Information
G00795691Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed, amount of intake air and engine coolant temperature.
