Hydrometer Temperature Correction

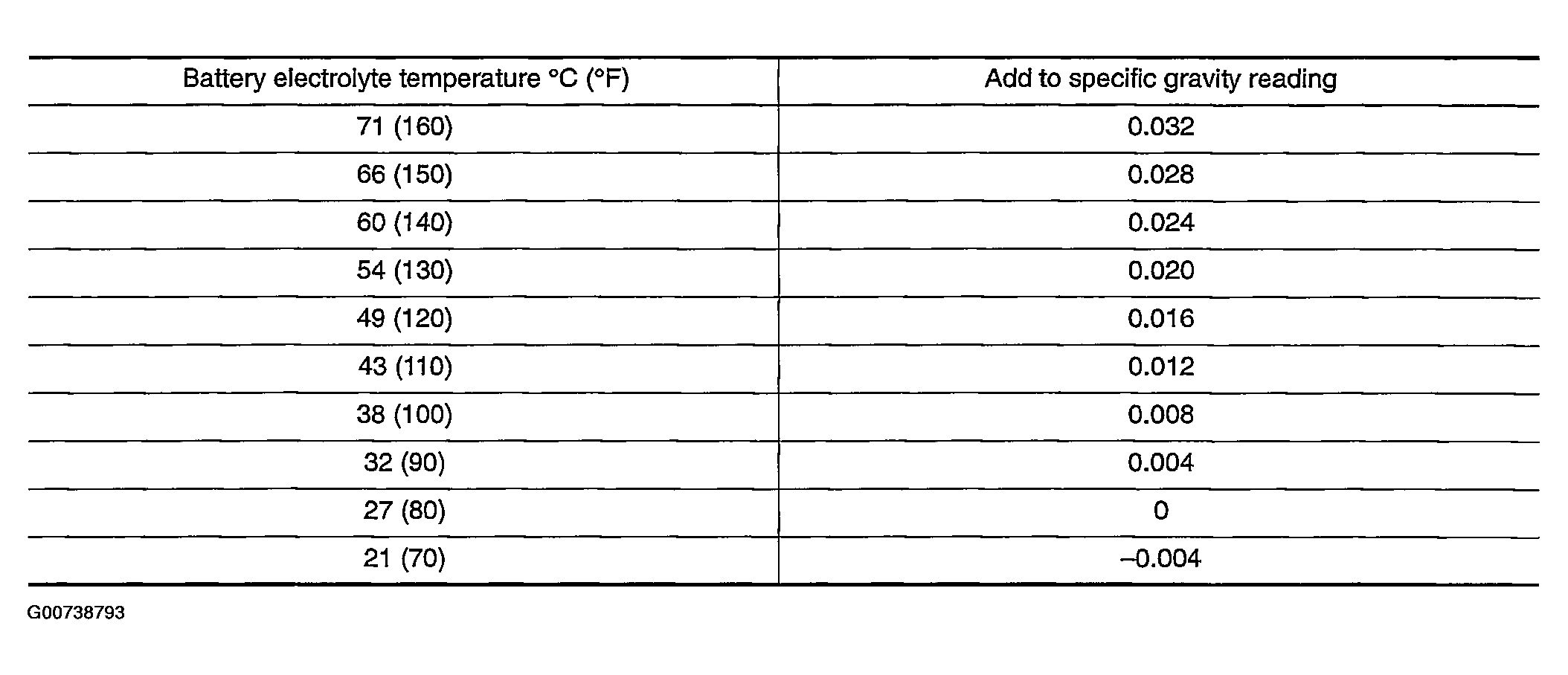

Fig 1: Determining Hydrometer Temperature Correction (1 Of 3)
G00738793Courtesy of NISSAN MOTOR CO., U.S.A.

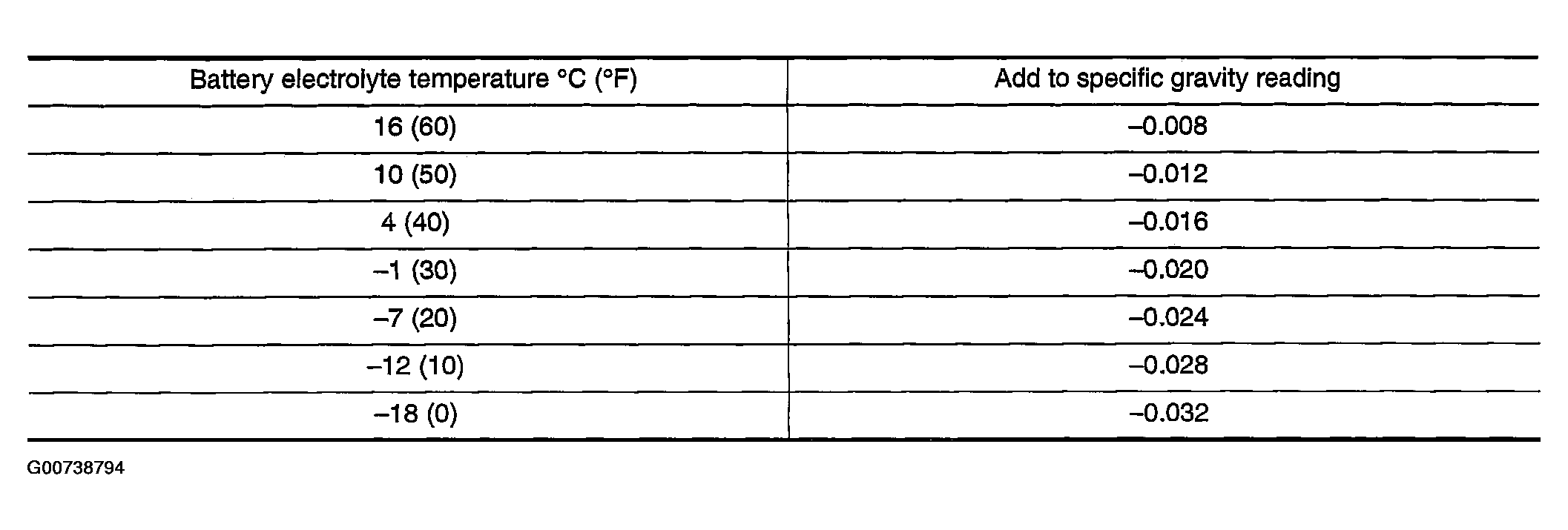

Fig 2: Determining Hydrometer Temperature Correction (2 Of 3)
G00738794Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Determining Hydrometer Temperature Correction (3 Of 3)
G00738795Courtesy of NISSAN MOTOR CO., U.S.A.
