Trouble Diagnosis With Battery/Starting/Charging System Tester
>>
Work Flow
Work Flow

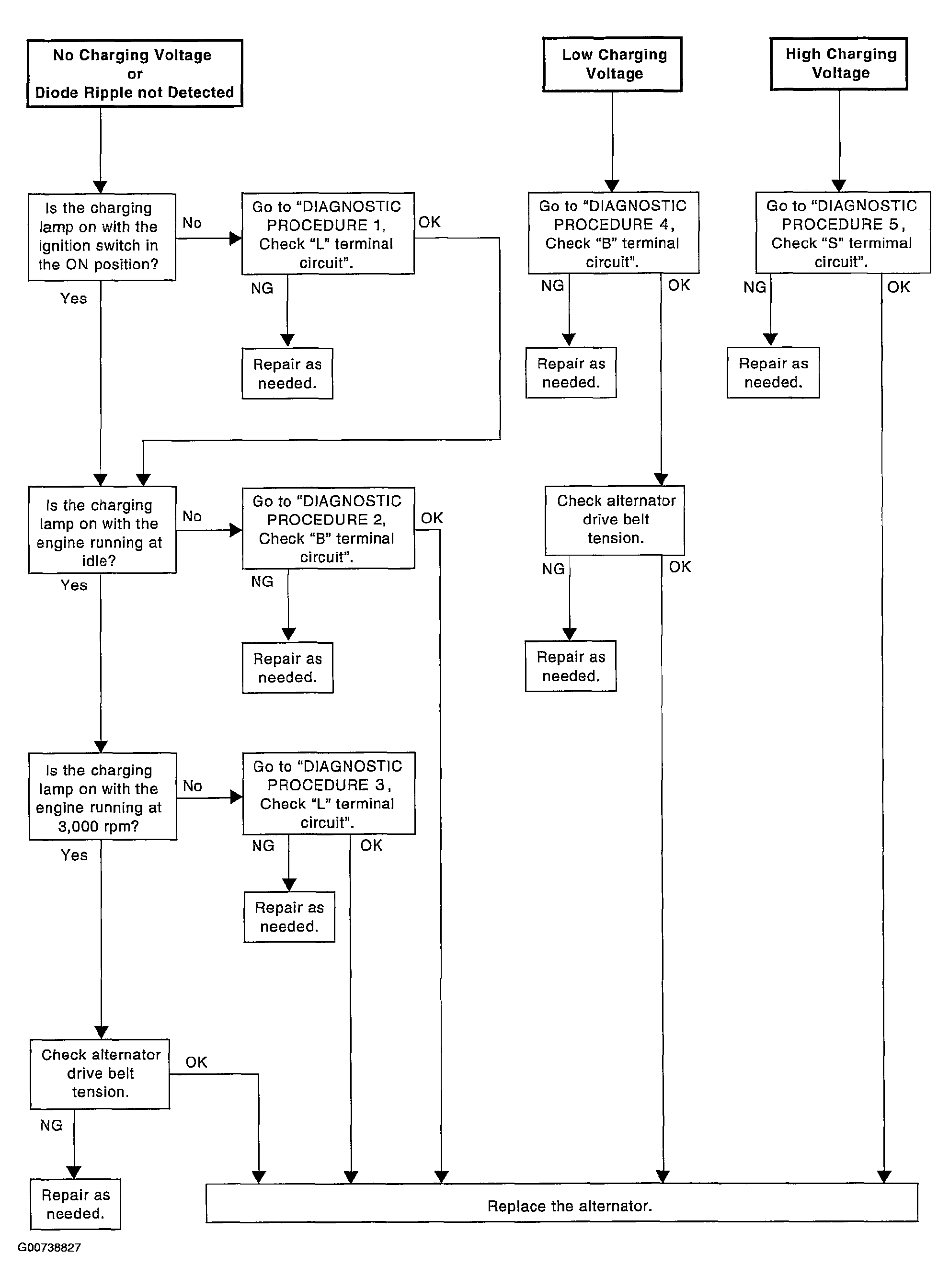

Fig 1: Determining No Charging Voltage Or Diode Ripple Not Detected
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
