Removal And Installation: Removal

  1. Remove battery. Refer to REMOVAL AND INSTALLATION .
  2. Remove air intake duct. Refer to AIR CLEANER AND AIR DUCT .
  3. Remove alternator, water pump and A/C compressor belt. Refer to REMOVAL AND INSTALLATION .
  4. Remove power steering hose clamp mounting bolt.
  5. Remove alternator stay mounting bolts and alternator stay.

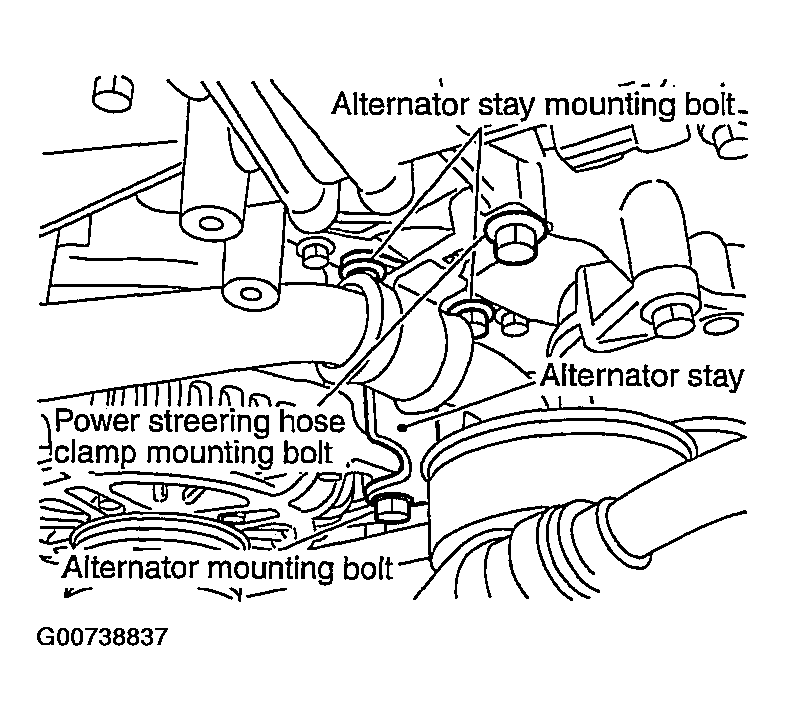

    Fig 1: Locating Alternator Stay Mounting Bolts & Alternator Stay
    G00738837Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove radiator reservoir tank and radiator reservoir tank bracket. Refer to RADIATOR .
  7. Remove battery ground harness mounting bolt.

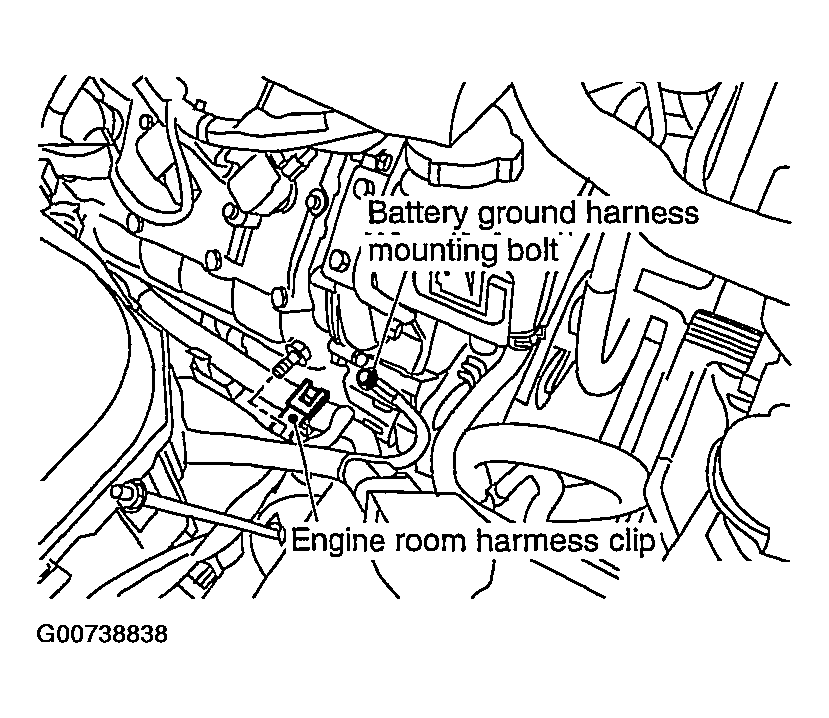

    Fig 2: Locating Battery Ground Harness Mounting Bolt
    G00738838Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove engine room harness clip.
  9. Remove alternator mounting bolt.
  10. Remove alternator bracket mounting bolts and alternator bracket.

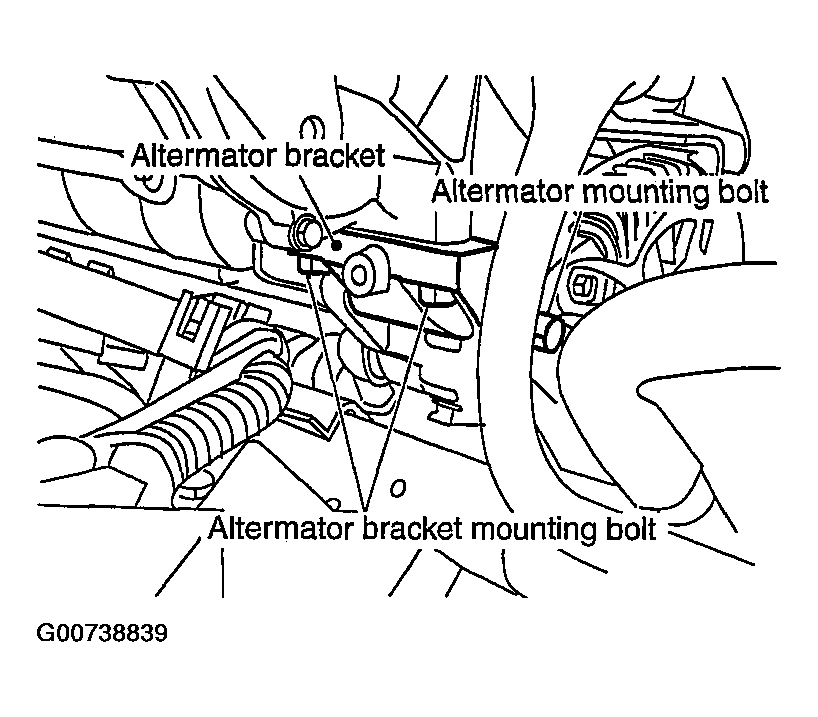

    Fig 3: Locating Alternator Bracket & Mounting Bolts
    G00738839Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove B terminal nut.
  12. Disconnect alternator connector.
  13. Remove alternator ground harness mounting bolt.
  14. Remove power steering oil reservoir tank mounting bolts, then slide power steering oil reservoir tank.

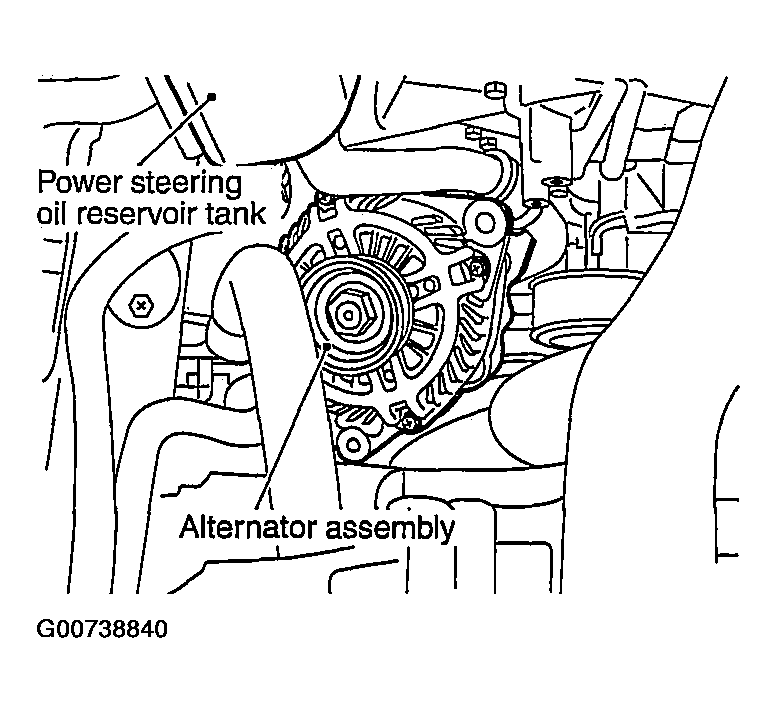

    Fig 4: Locating Power Steering Oil Reservoir Tank & Alternator Assembly
    G00738840Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove alternator assembly from vehicle upper side.
