How To Proceed With Diagnosis
>>
Diagnosis Flowchart
Diagnosis Flowchart

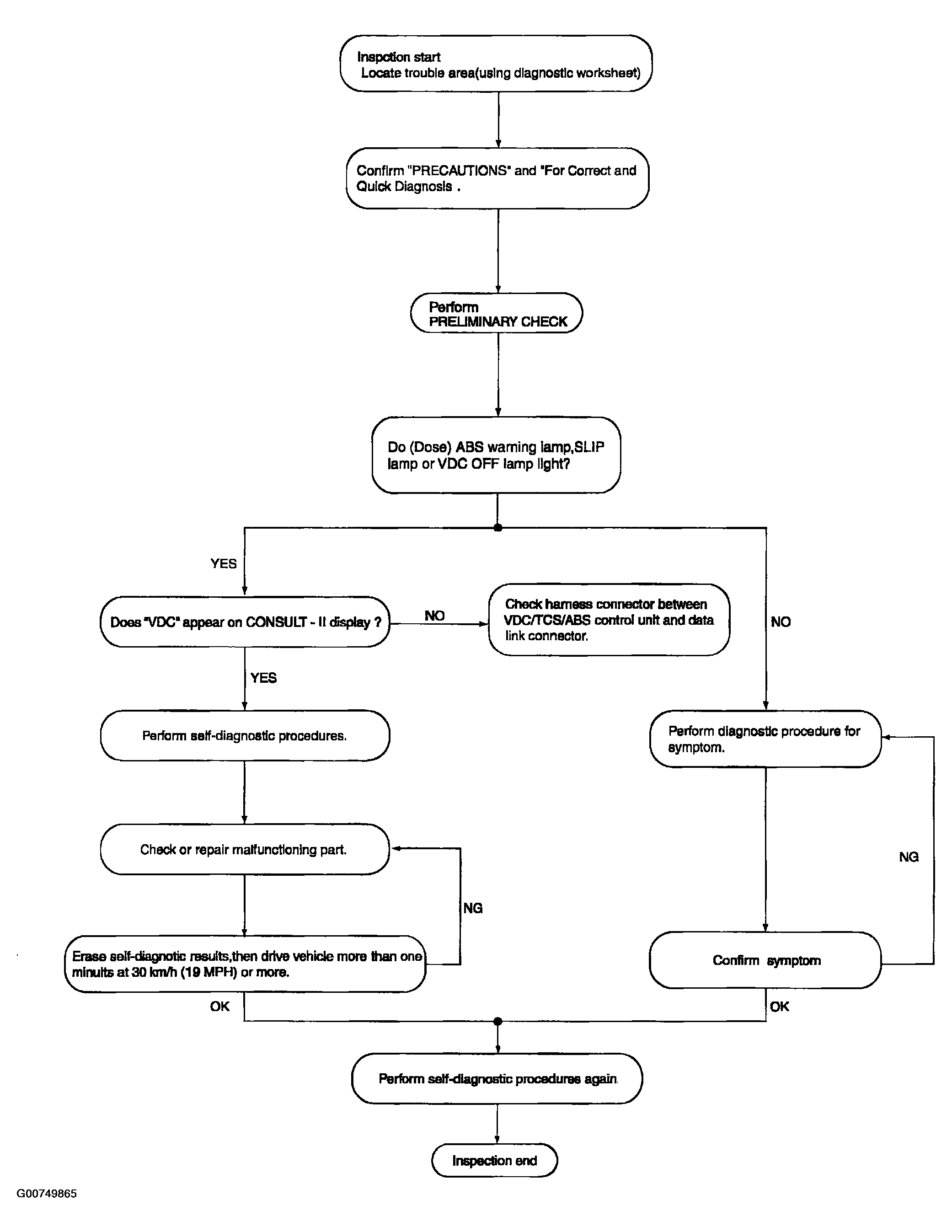

Fig 1: Determining Diagnostic Steps Based On Flowchart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
