Solenoid Valve

To perform active test of ABS functions, select major items for each test item. To perform active test of VDC/TCS functions, select item menu for each test item.
For ABS solenoid valve, touch "UP", "KEEP", and "DOWN". For ABS solenoid valve (ACT), touch "UP," "ACT UP," and "ACT KEEP". Use screen monitor to make sure solenoid valve operates as shown in Solenoid Valve Operation Chart. Refer to Fig 2 .

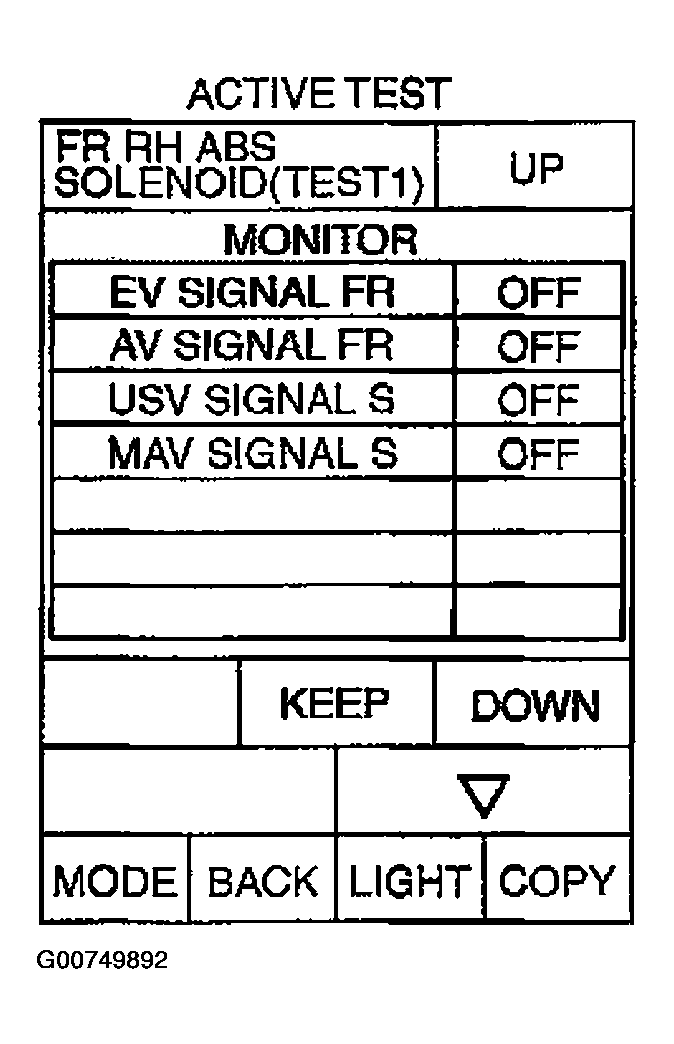

Fig 1: Viewing SOLENOID VALVE Function On Active Test Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

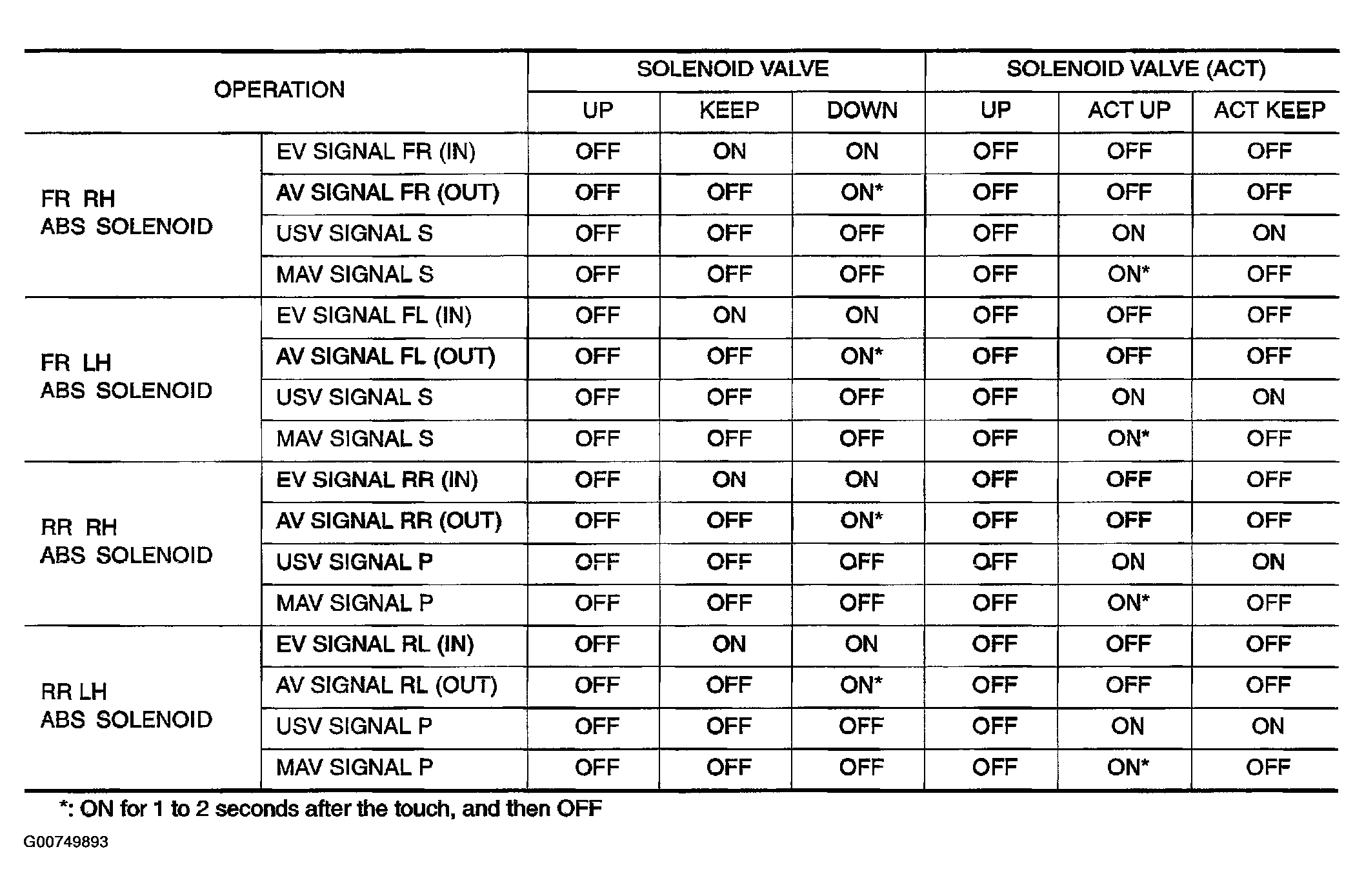

Fig 2: Defining SOLENOID VALVE Test Result
Courtesy of NISSAN MOTOR CO., U.S.A.
