Brake Control System - TCS
>>
Component Parts And Harness Connector Location
Component Parts And Harness Connector Location

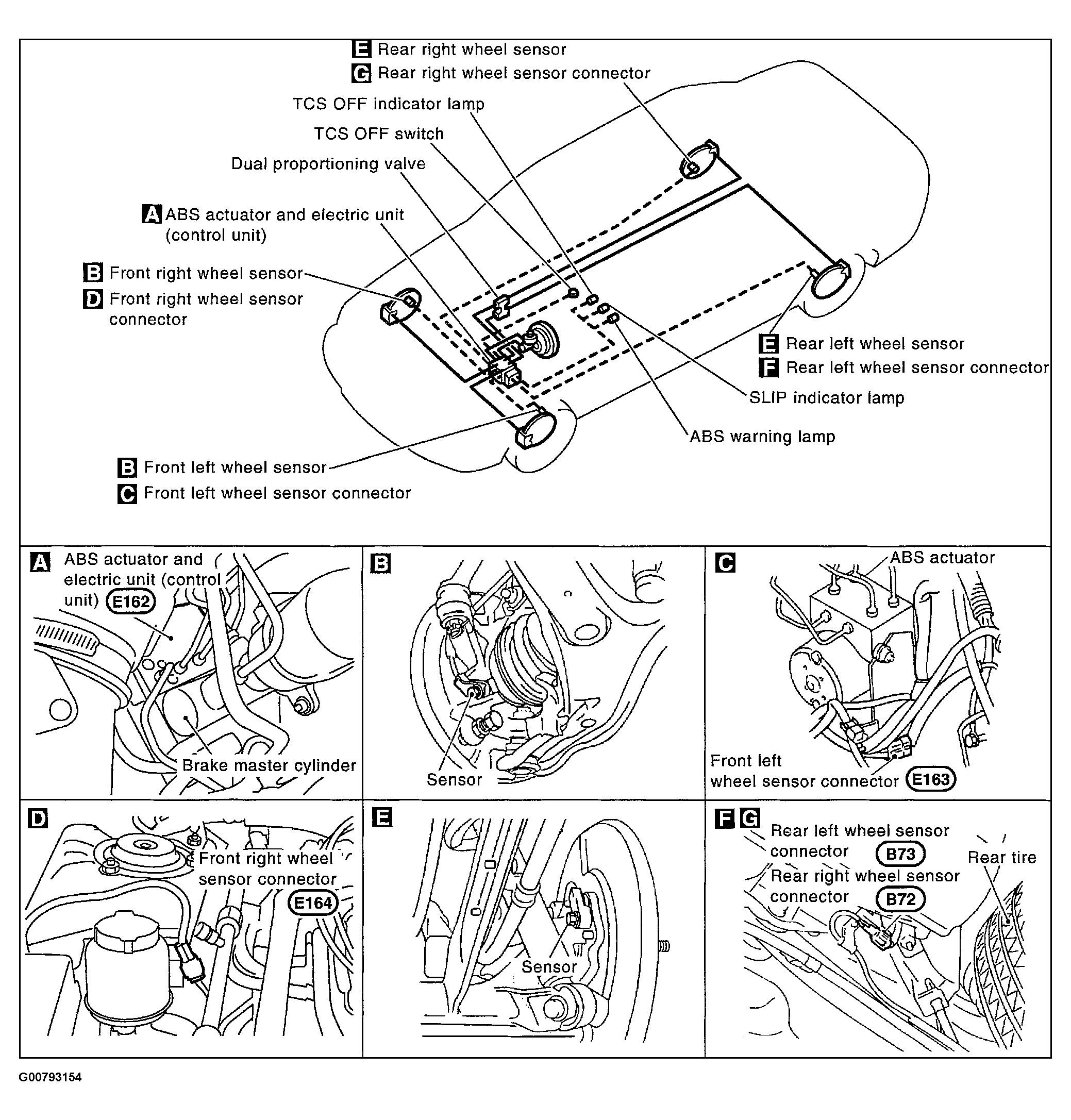

Fig 1: Locating TCS Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
