DTC U1000 & U1001 Can Communication Line: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

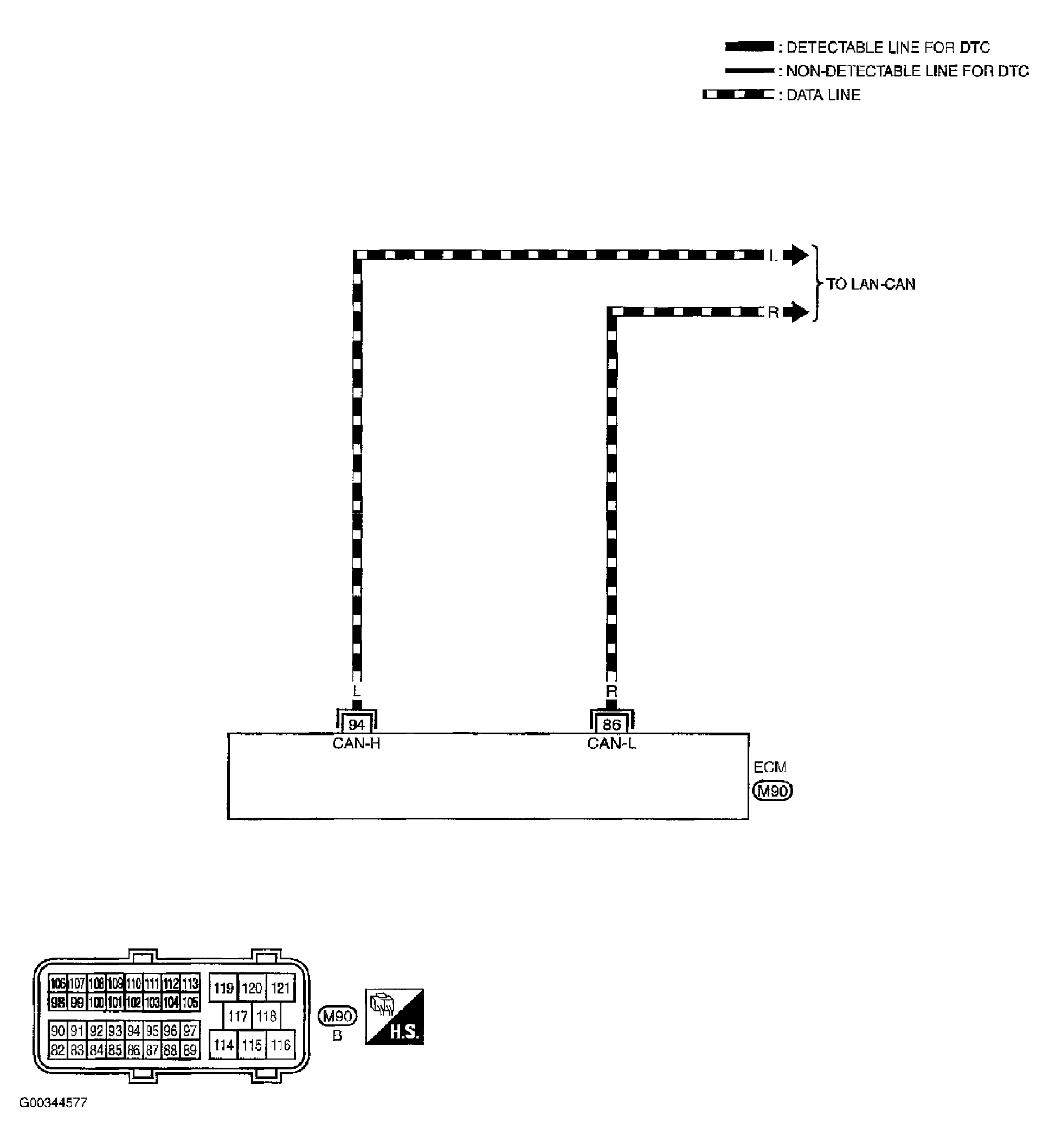

Fig 1: EC-CAN Communications Circuit

G00344577

Courtesy of NISSAN MOTOR CO., U.S.A.
