Differential Case Assembly

Apply gear oil to contact surfaces of each gear, thrust washers and differential case.
Install the removed thrust washer or same thickness washer to side gear.

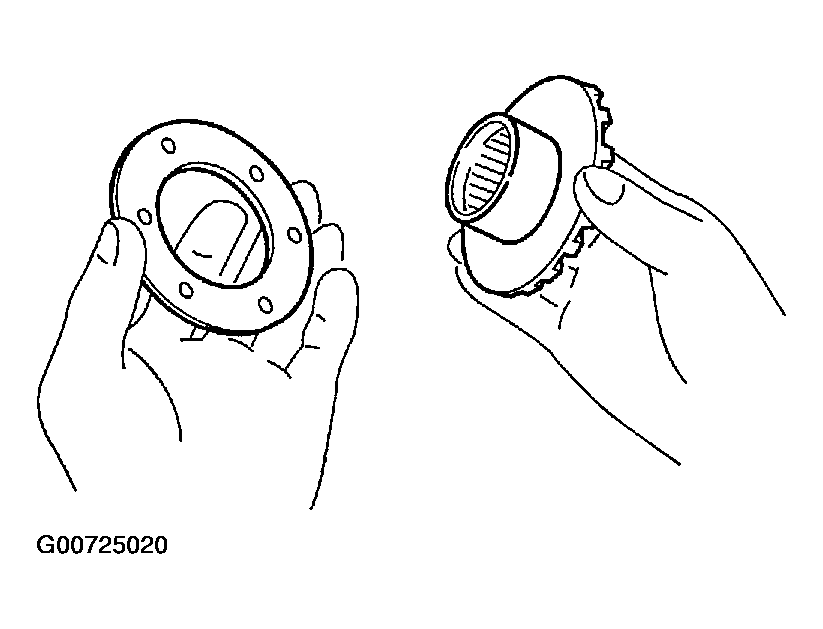

Fig 1: Installing Thrust Washer To Side Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the side gear, thrust washers, pinion mate gears and thrust washers to differential case.
NOTE: Install the circlip equipped side gear to the side retainer side.
Install pinion mate gears by placing the pair of gear facing each other, and turning them.

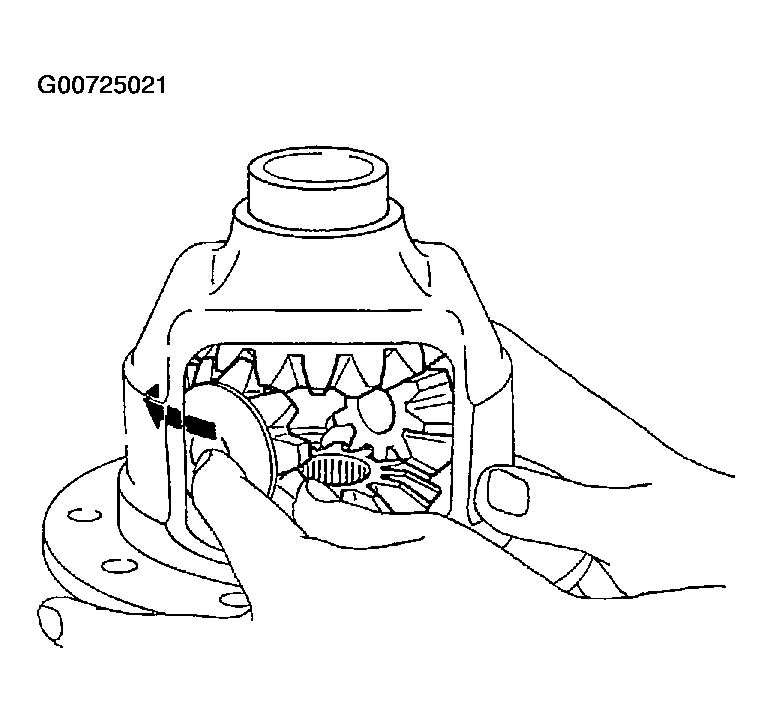

Fig 2: Displaying Turning Direction For Installation
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the pinion mate shaft while aligning the lock pin holes between the differential case and pinion mate shaft.

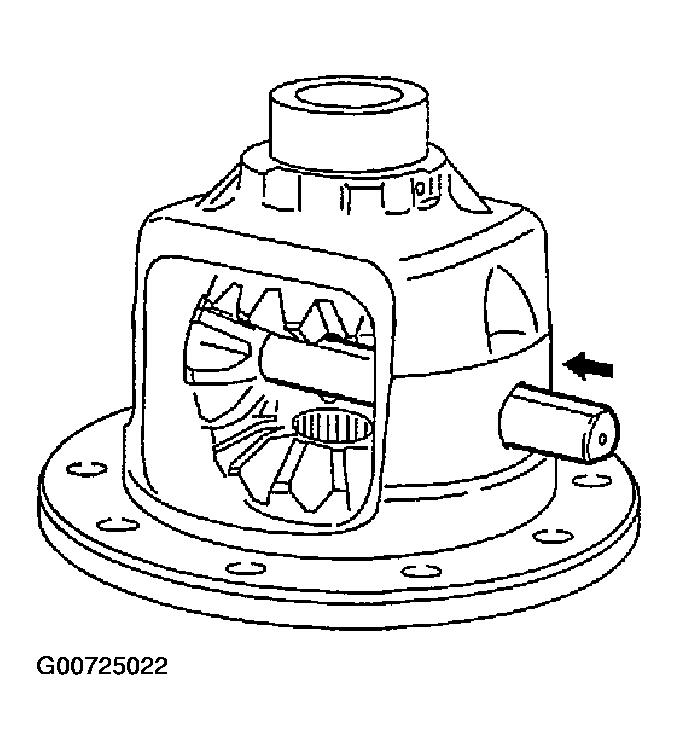

Fig 3: Displaying Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Place the differential gear case so that measurement point facing up as shown.

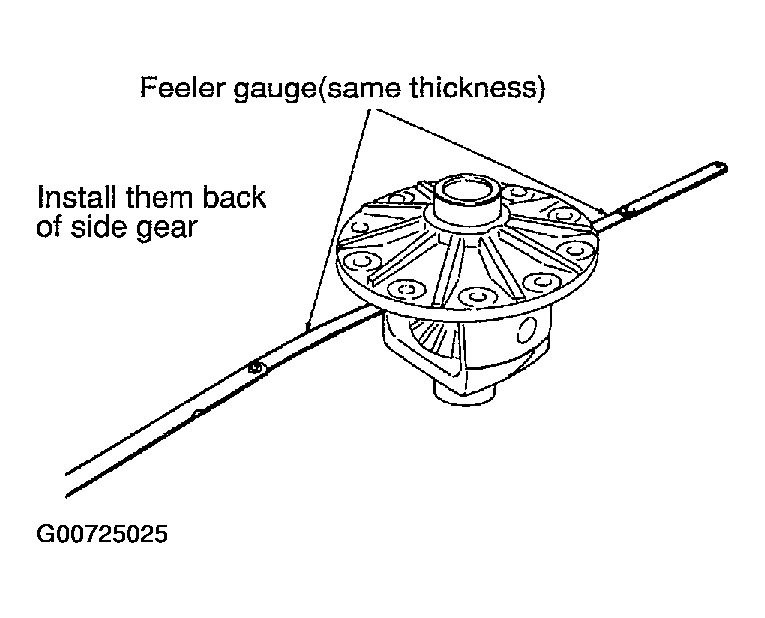

Fig 4: Displaying Proper Differential Placing
Courtesy of NISSAN MOTOR CO., U.S.A.

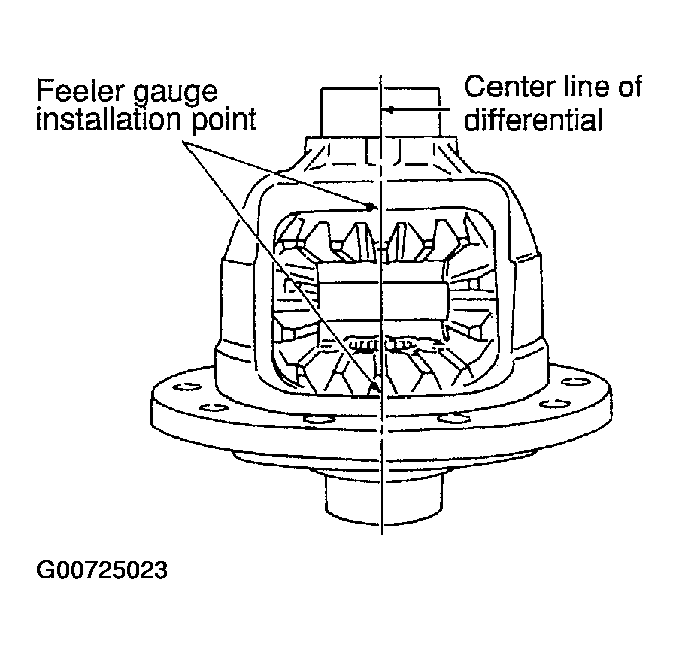

Use two feeler gauges to prevent leaning of side gear as shown.
Measure the clearance at 3 points by turning the side gear.
Select side gear thrust washer so that the clearance is within standard.
1. Rear face of side gear and differential case clearance:
  1. 0.20 mm (0.0079 in) or less
NOTE: Check the smooth gear movement.

Fig 5: Checking Side Gear Clearance (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Place the differential gear case upside down, and measure the opposite side clearance.

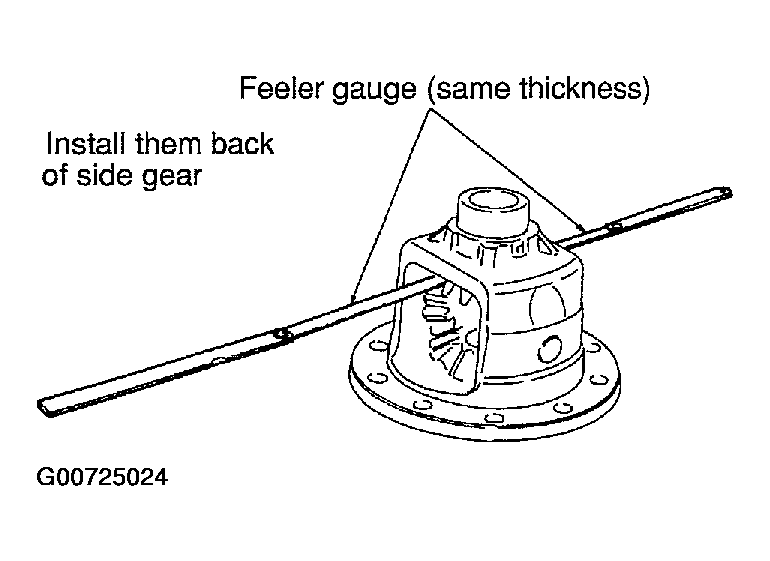

Fig 6: Checking Side Gear Clearance (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
If clearance exceed limit, adjust the clearance by selecting adjusting shim.
- If clearance too large, increase thrust washer thickness.
- If clearance too small, decrease thrust washer thickness.
Drive the lock pin into the pinion mate shaft using punch.
1. Tool number : KV31100300 ( - )
NOTE: Do not reuse the lock pin. Always replace the with a new one.

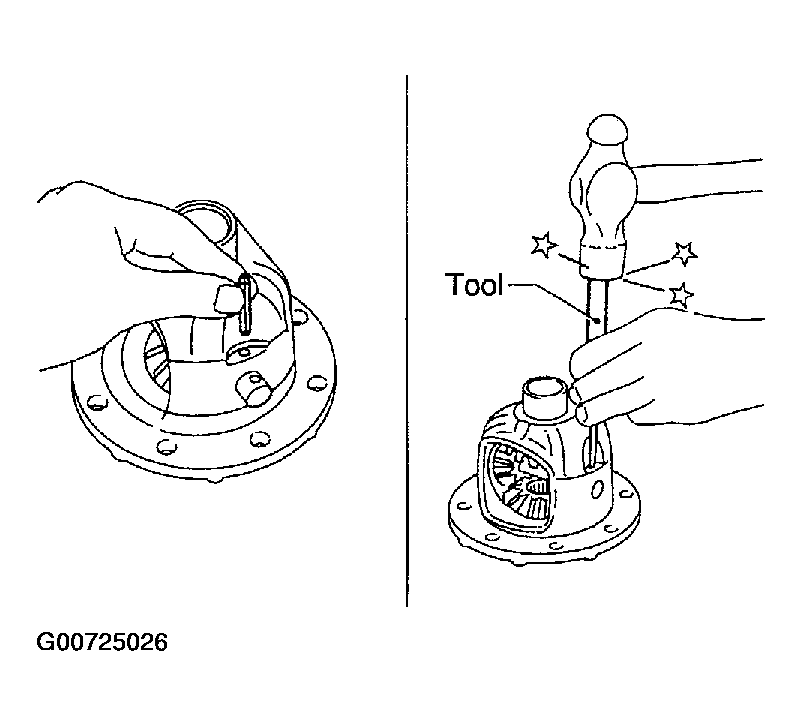

Fig 7: Driving Lock Pin Into Pinion Mate Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply genuine medium strength locking sealant or equivalent to the drive gear bolt hole thread. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

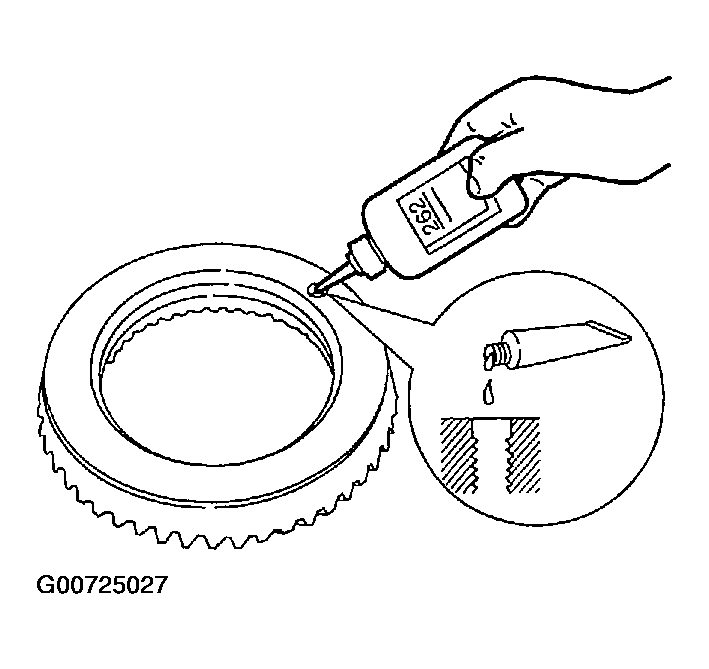

Fig 8: Applying Locking Sealant
Courtesy of NISSAN MOTOR CO., U.S.A.
Assemble the drive gear and differential case.
Apply gear oil to the mounting bolt seating surface, tighten the bolt in criss-cross fashion to specified torque. Refer to COMPONENTS (VK45DE) or COMPONENTS (VQ35DE) .

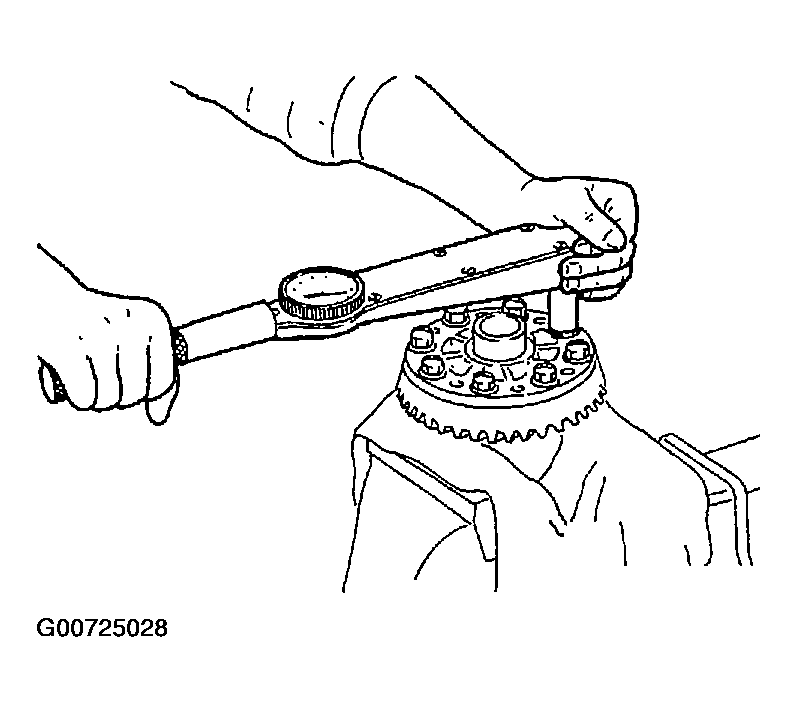

Fig 9: Assembling Drive Gear & Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Press-fit side bearing inner race on differential case with tool.
1. Tool number
  1. A: ST33230000 ( - )
  2. B: ST35321000 ( - )

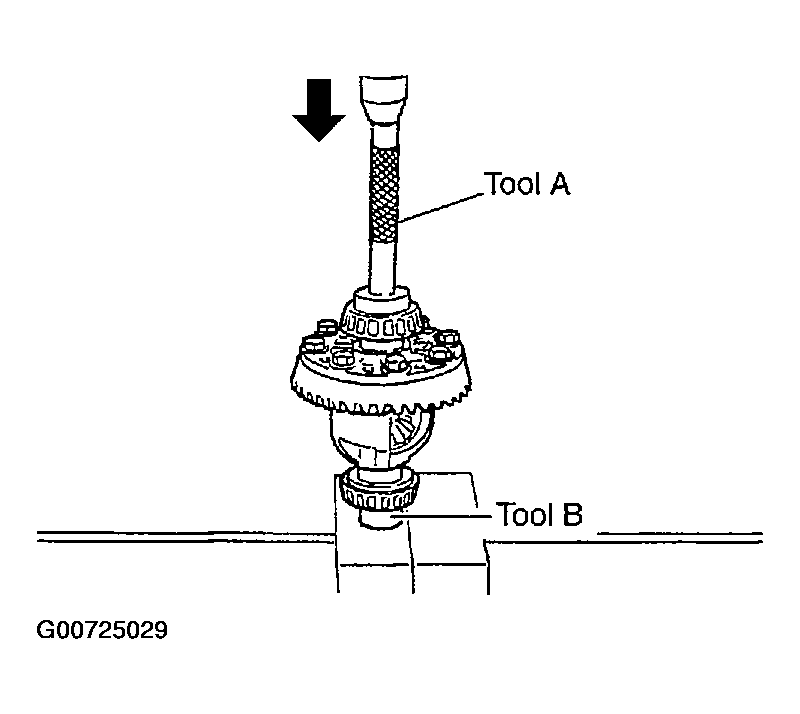

Fig 10: Pressing-fit Side Bearing Inner Race On Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
