CAN Communication Line Check

1. Start display control unit self-diagnosis. Refer to "Self-Diagnosis Mode (DCU)  "
2. Select "CAN DIAG SUPPORT MONITOR". Refer to "Can Diag Support Monitor  ".

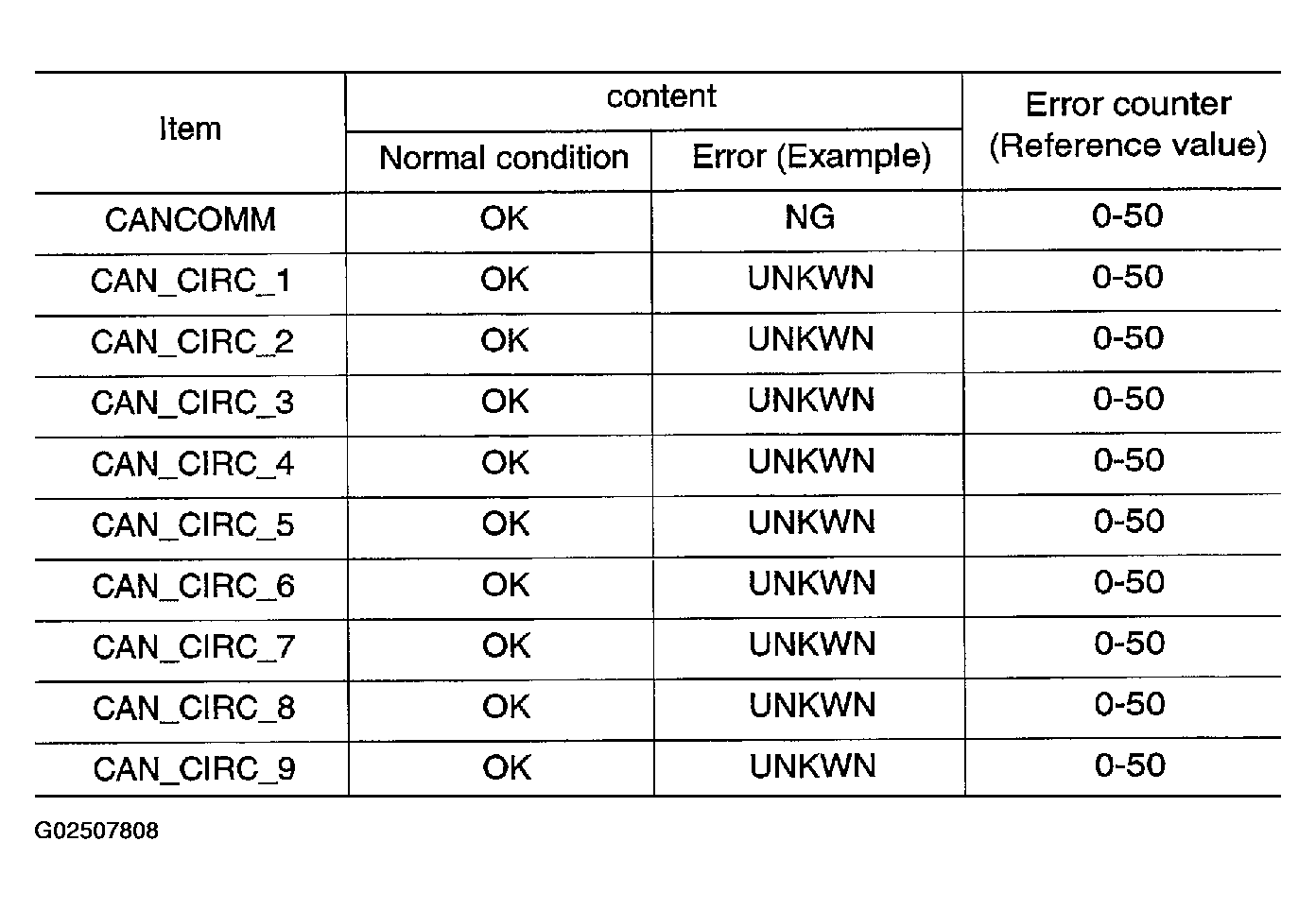

   Fig 1: CAN DIAG Support Monitor Description

   Courtesy of NISSAN MOTOR CO., U.S.A.

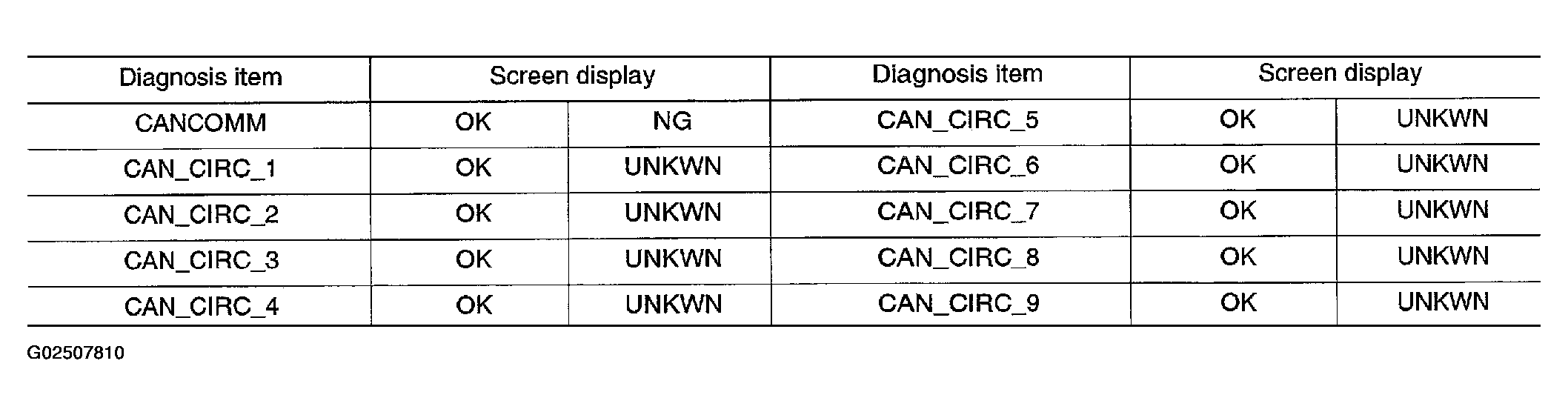

   Fig 2: Displaying CAN DIAG Support Monitor

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Record each item display description (OK/NG/UNKWN) displayed on the following CAN DIAG SUPPORT MONITOR Check Sheet.

CAN DIAG SUPPORT MONITOR Check Sheet

Fig 3: CAN DIAG Support Monitor Check Sheet

Courtesy of NISSAN MOTOR CO., U.S.A.

1. After filling in CAN DIAG SUPPORT MONITOR Check Sheet. Go to PRECAUTIONS WHEN USING CONSULT-II .
