Terminals And Reference Value For A/C And Av Switch

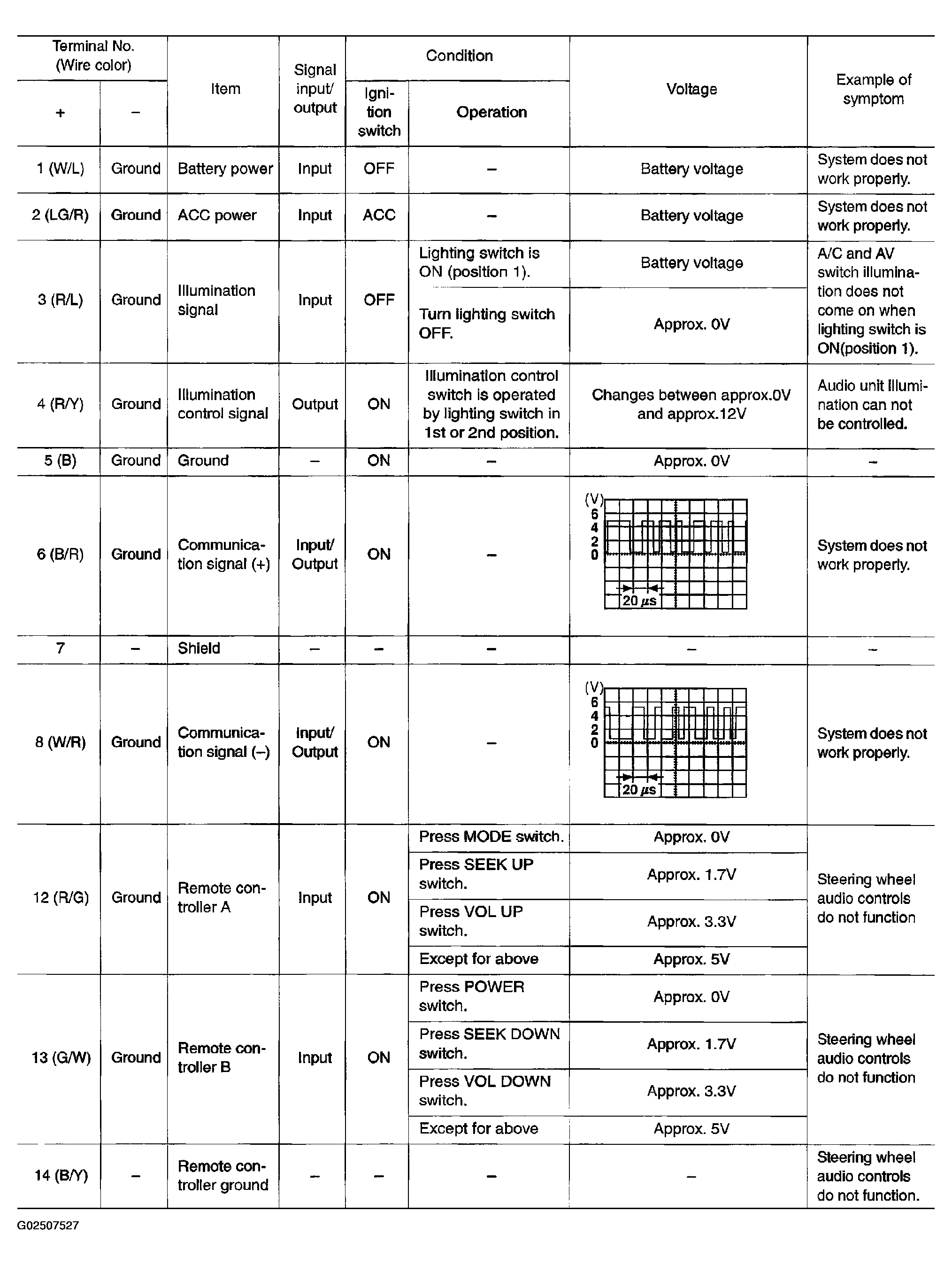

Fig 1: Displaying Terminals & Reference Value Chart For A/C & AV Switch
G02507527Courtesy of NISSAN MOTOR CO., U.S.A.
