Schematic -Base System-
>>
With Navigation System
With Navigation System

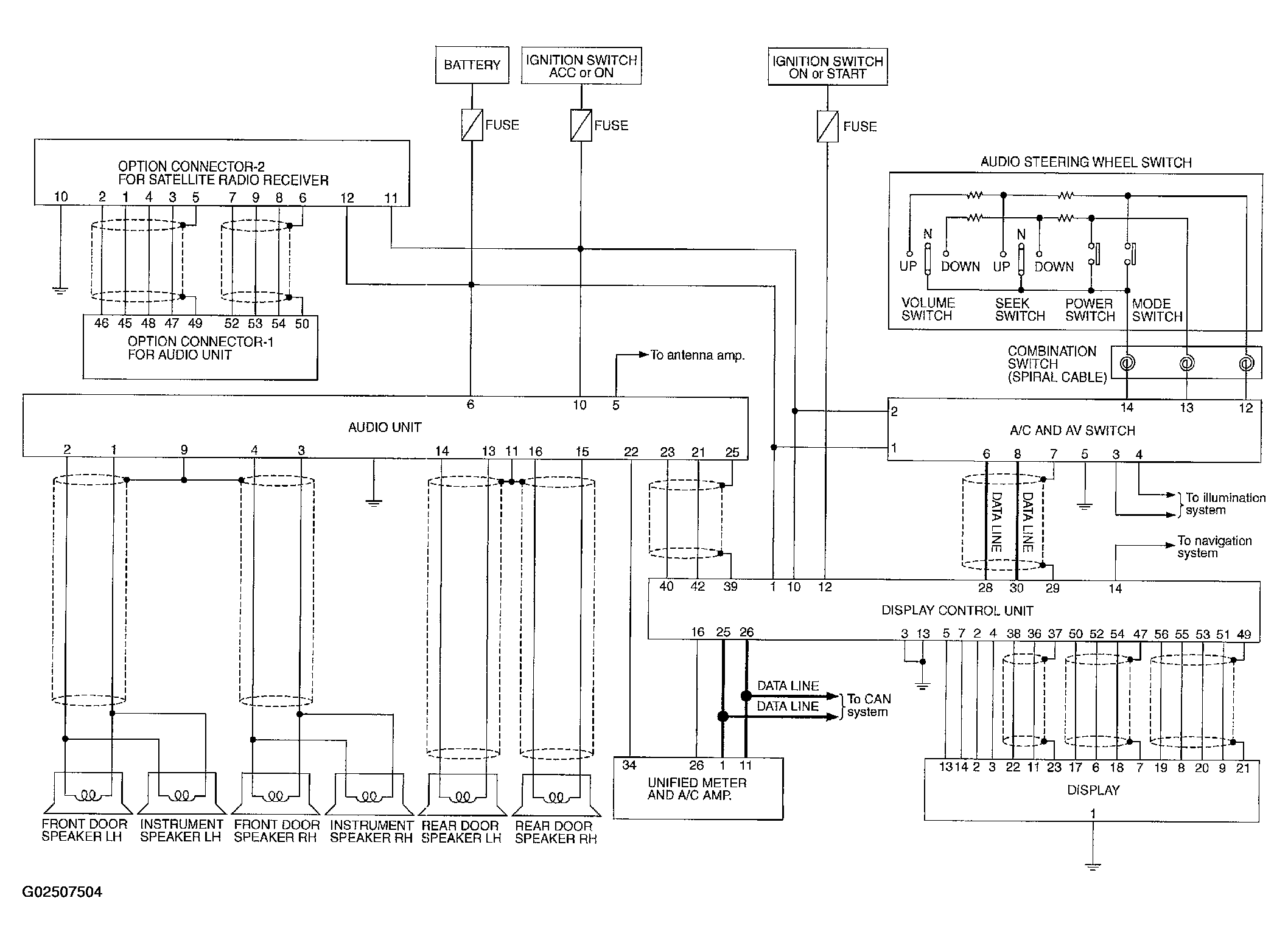

Fig 1: Displaying Audio Schematic -Base System- With Navigation System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
