Intelligent Cruise Control
>>
Description
>>
Components Description
Components Description

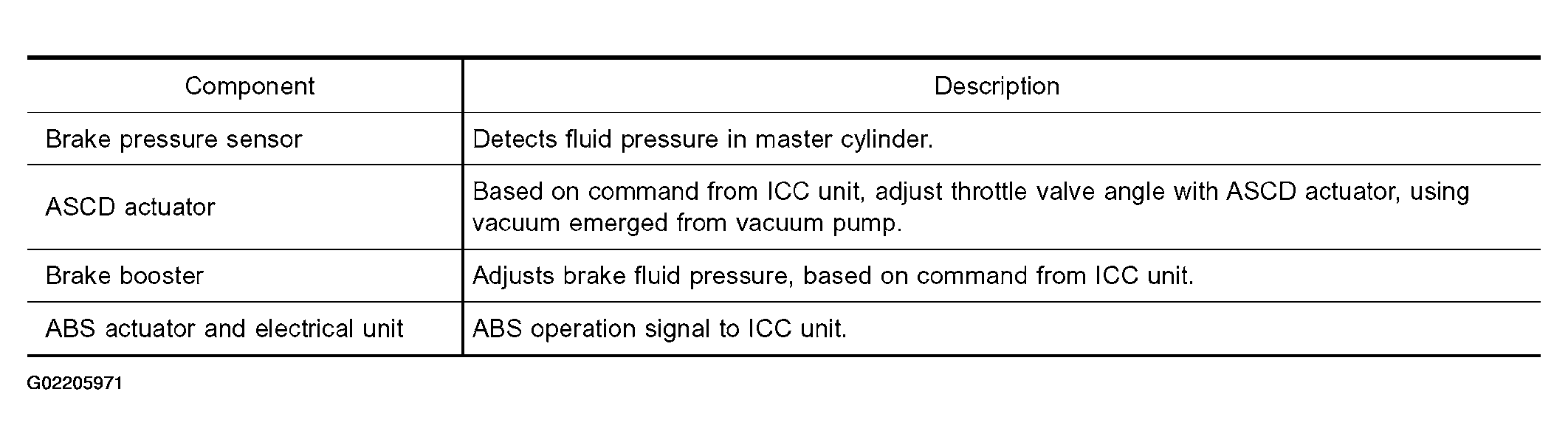

Fig 1: Components Description (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

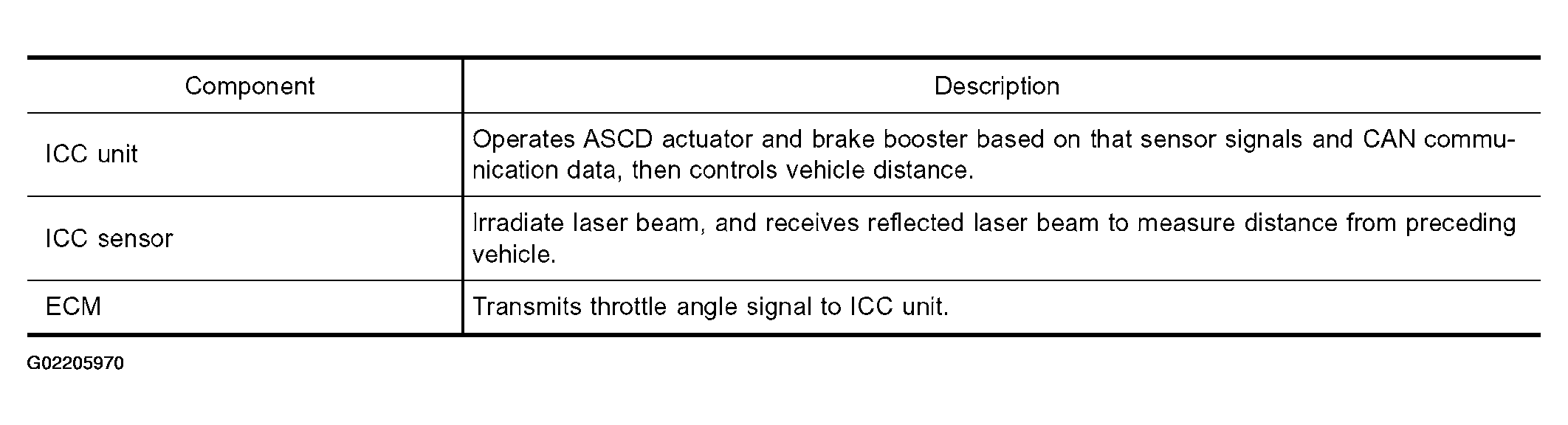

Fig 2: Components Description (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
