Terminals and Reference Value for Display

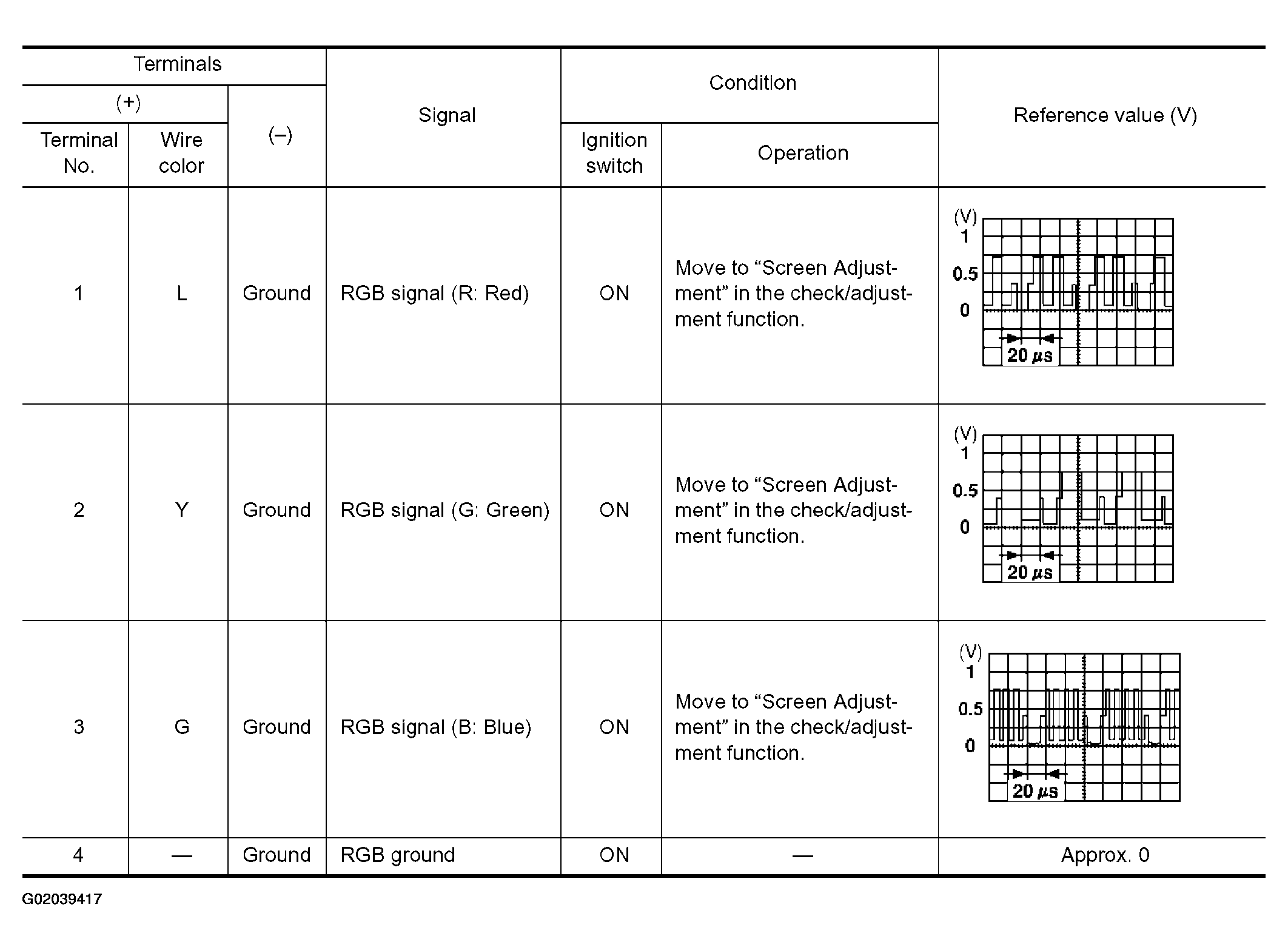

Fig 1: Terminals And Reference Value For Display (Terminals 1 - 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

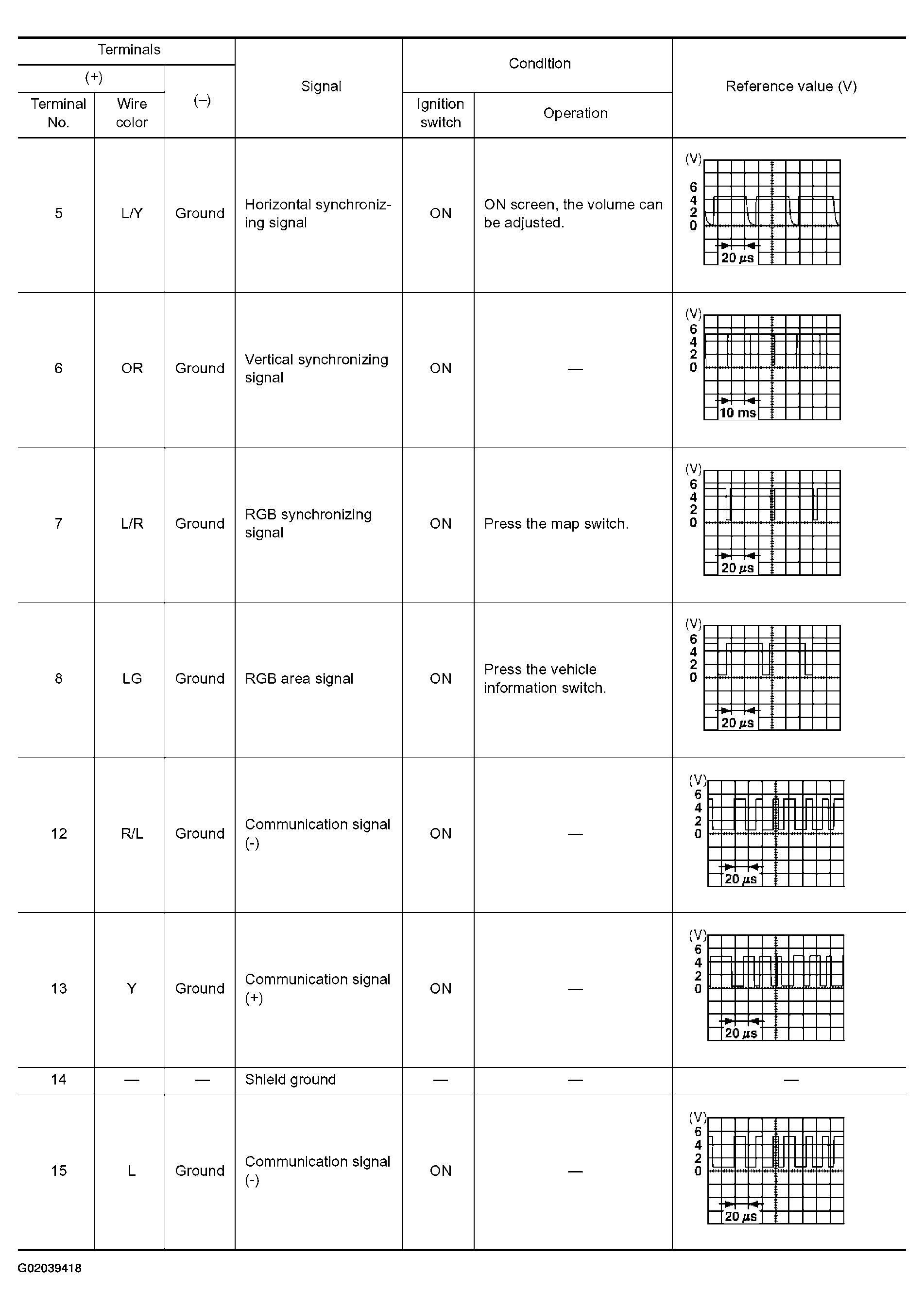

Fig 2: Terminals And Reference Value For Display (Terminals 5 - 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

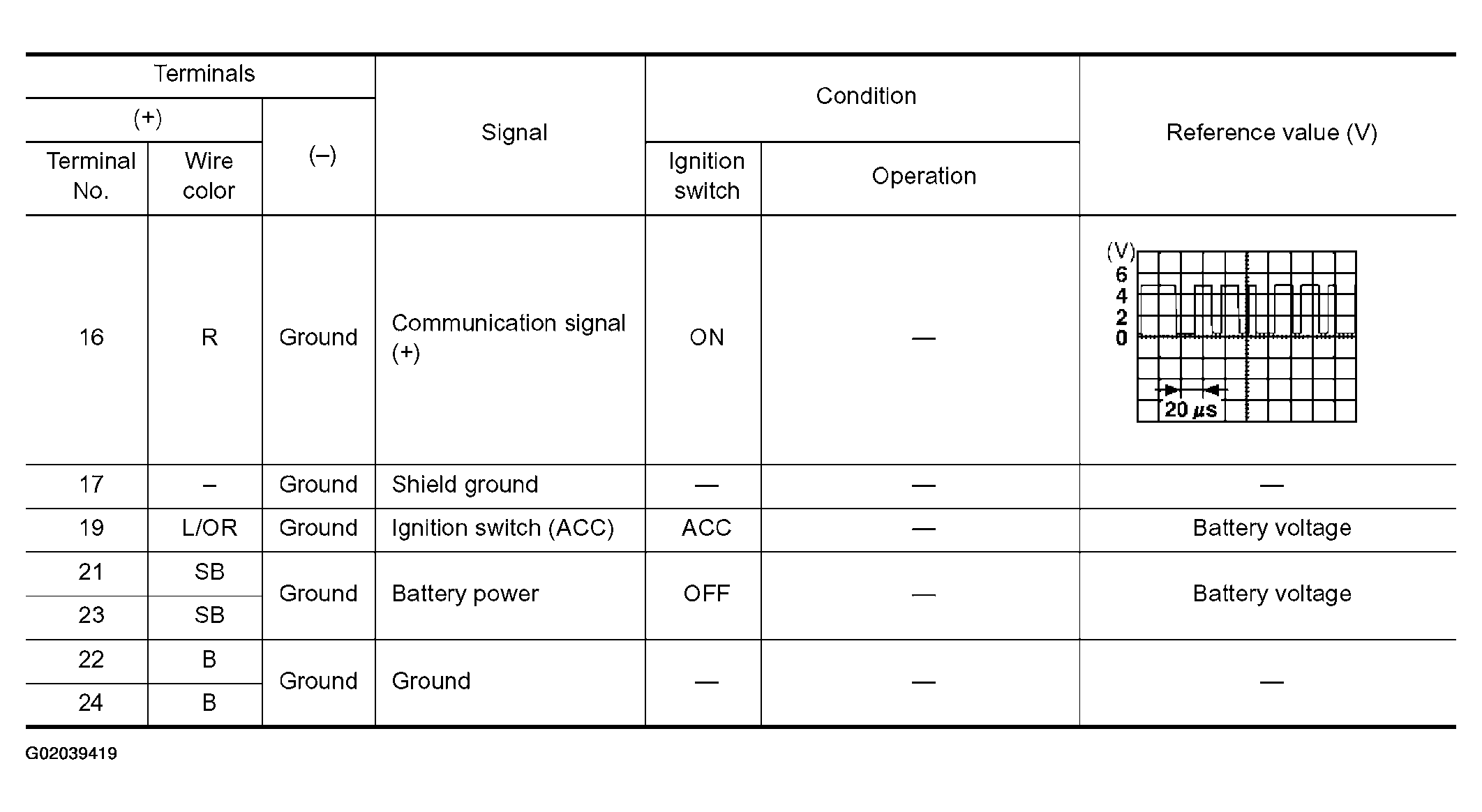

Fig 3: Terminals And Reference Value For Display (Terminals 16 - 24)

Courtesy of NISSAN MOTOR CO., U.S.A.
