Terminals and Reference Value for Display

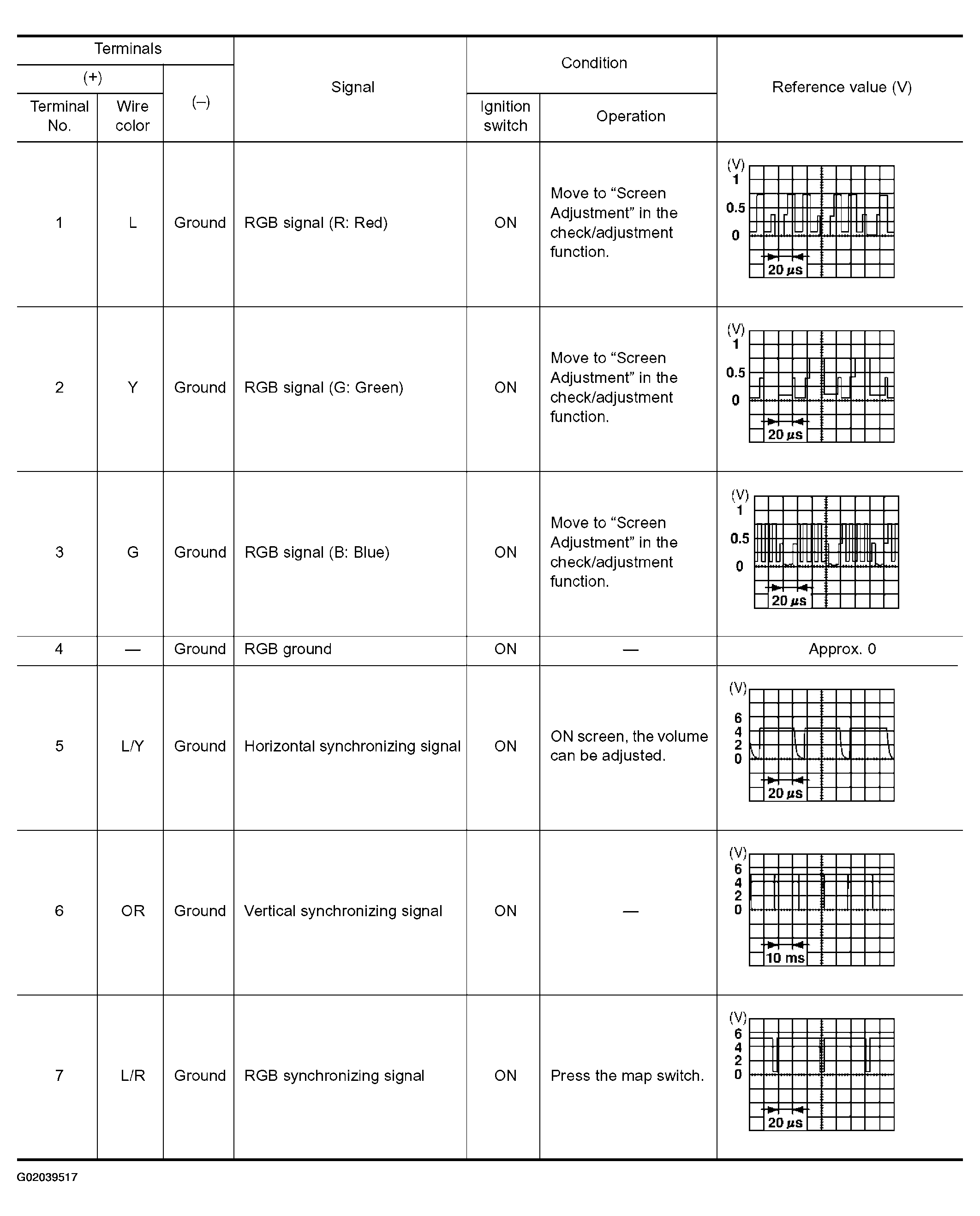

Fig 1: Terminals And Reference Value For Display (Terminals 1 - 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

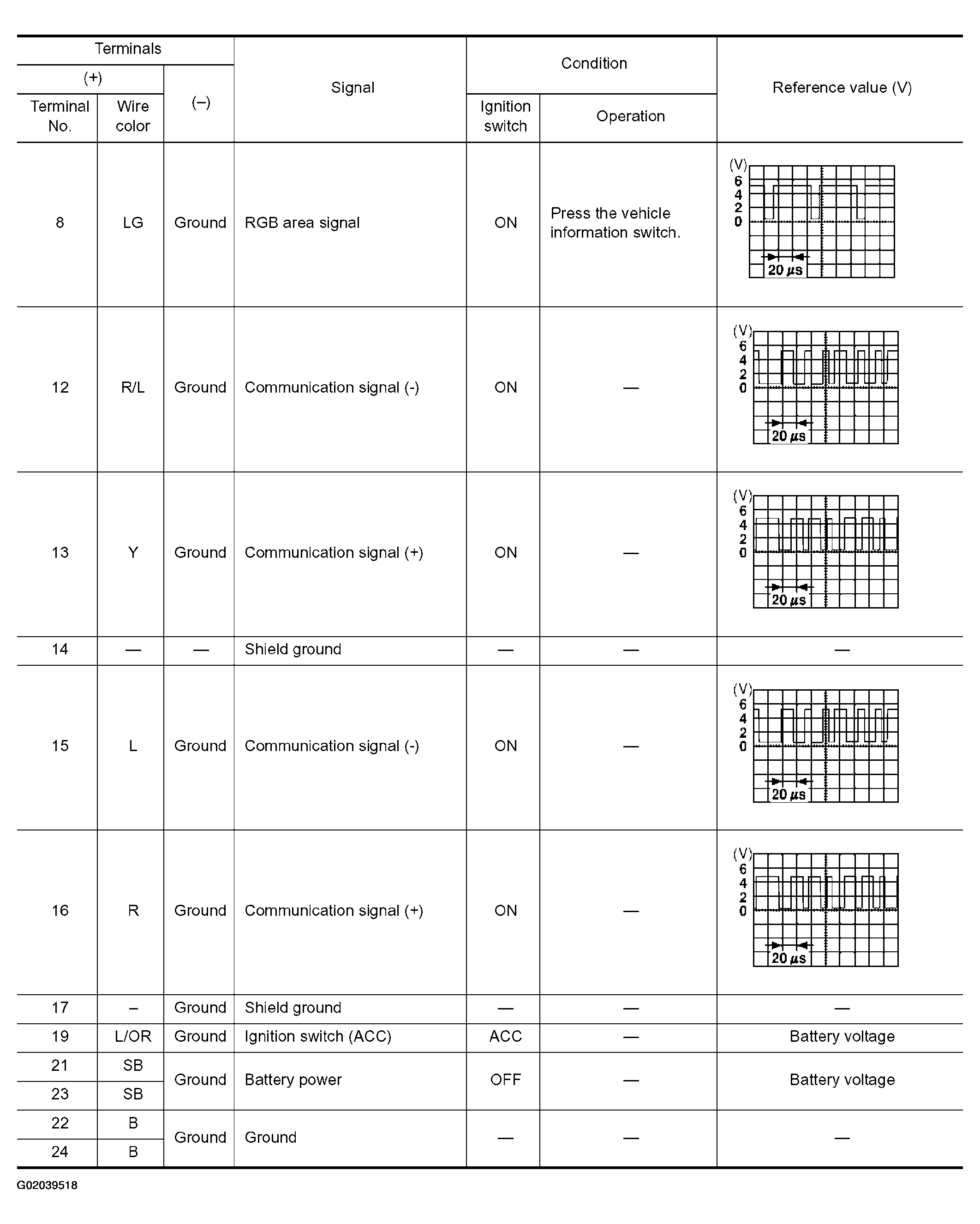

Fig 2: Terminals and Reference Value for Display (Terminals 8 - 24)

Courtesy of NISSAN MOTOR CO., U.S.A.
