Disassembly and Assembly for Multifunction Switch

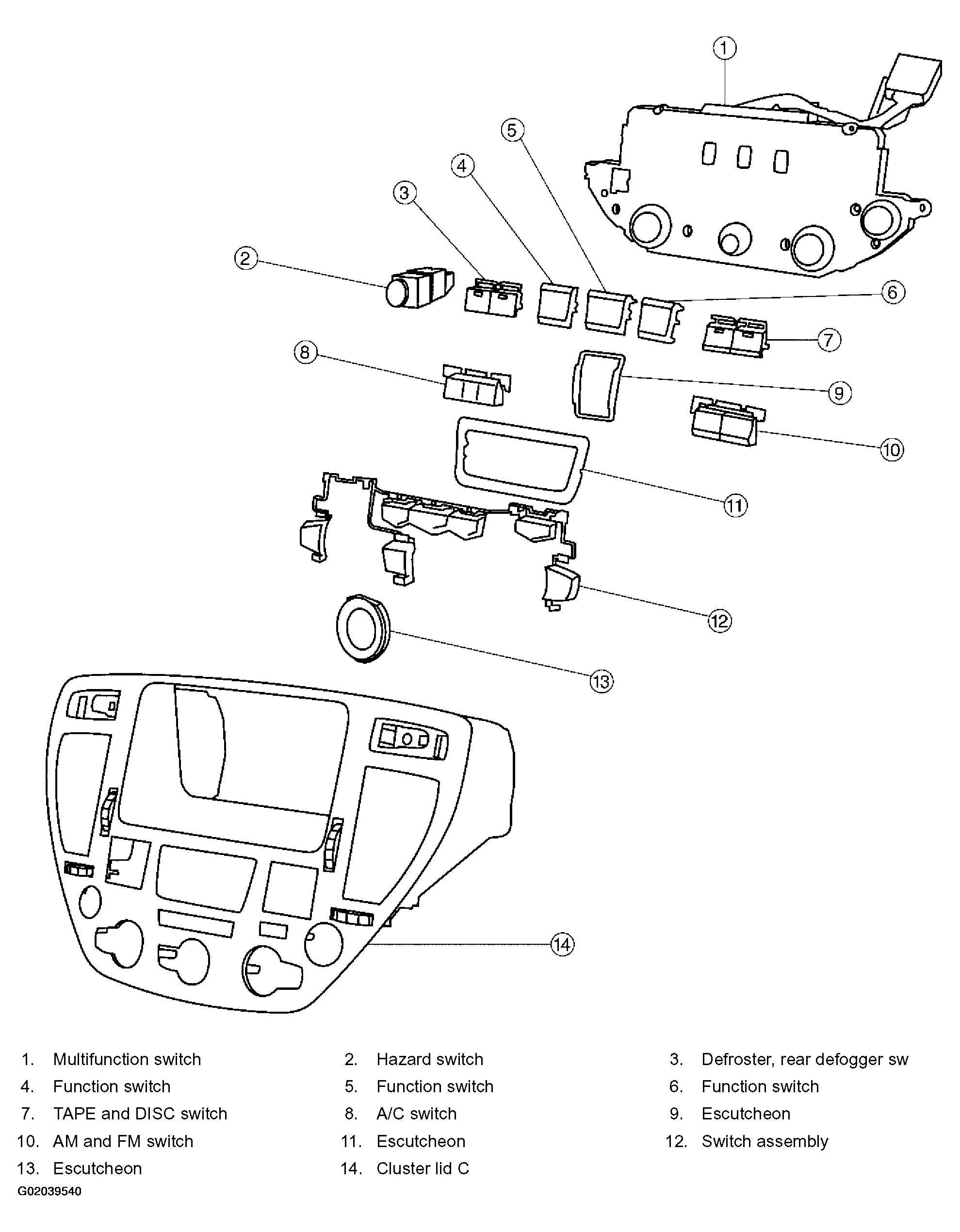

Fig 1: Exploded View Of Multifunction Switch
G02039540Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the screw (7)
  2. Remove the switches.
