Wiring Diagram - Shift -

NOTE: For wiring diagram references to EL-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION .

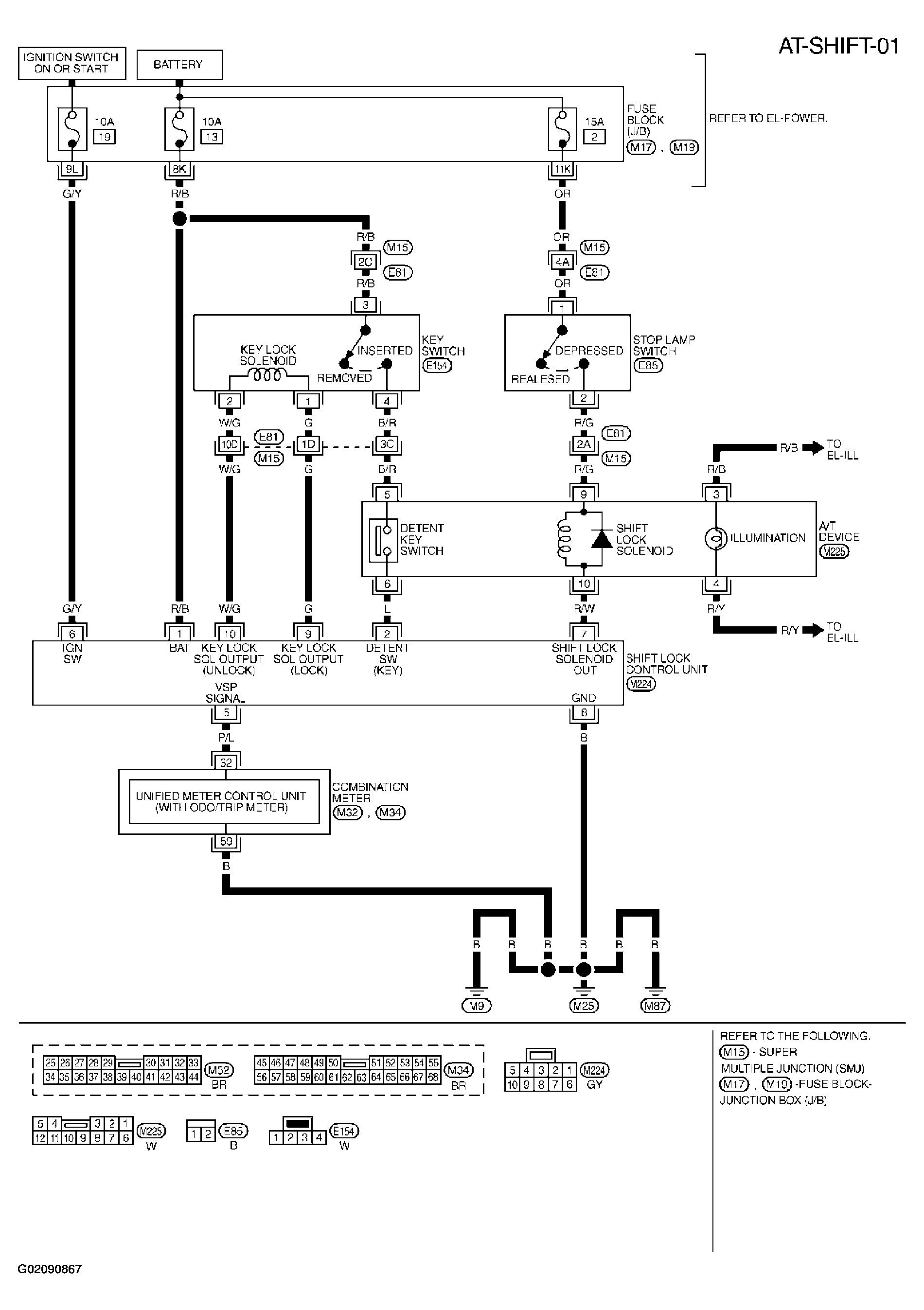

Fig 1: Wiring Diagram - SHIFT

G02090867

Courtesy of NISSAN MOTOR CO., U.S.A.
