Rear Defogger

WARNING: This page is about a different car, the 2004 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

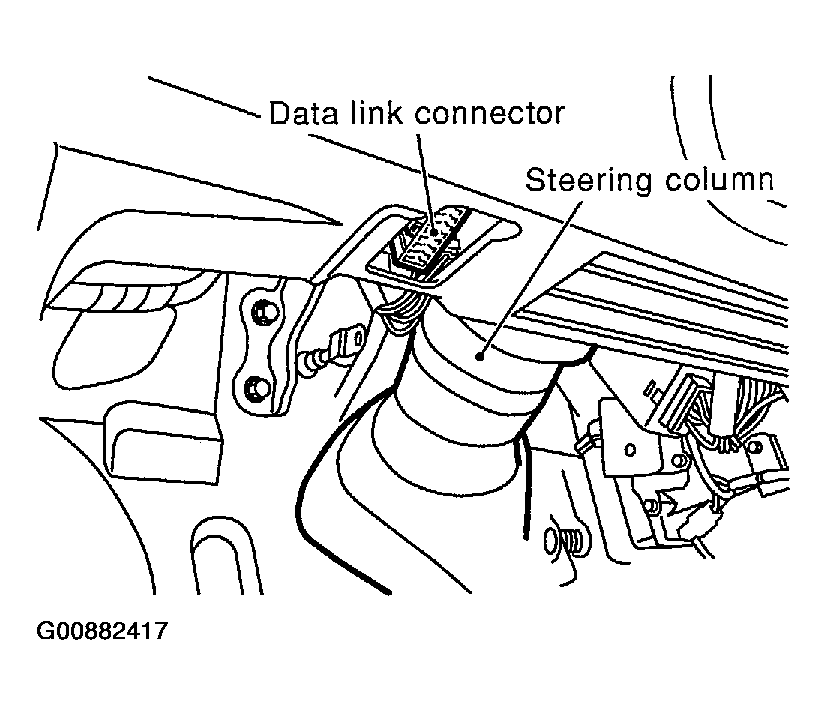

Fig 1: Locating Data Link Connector And Steering Column
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)."

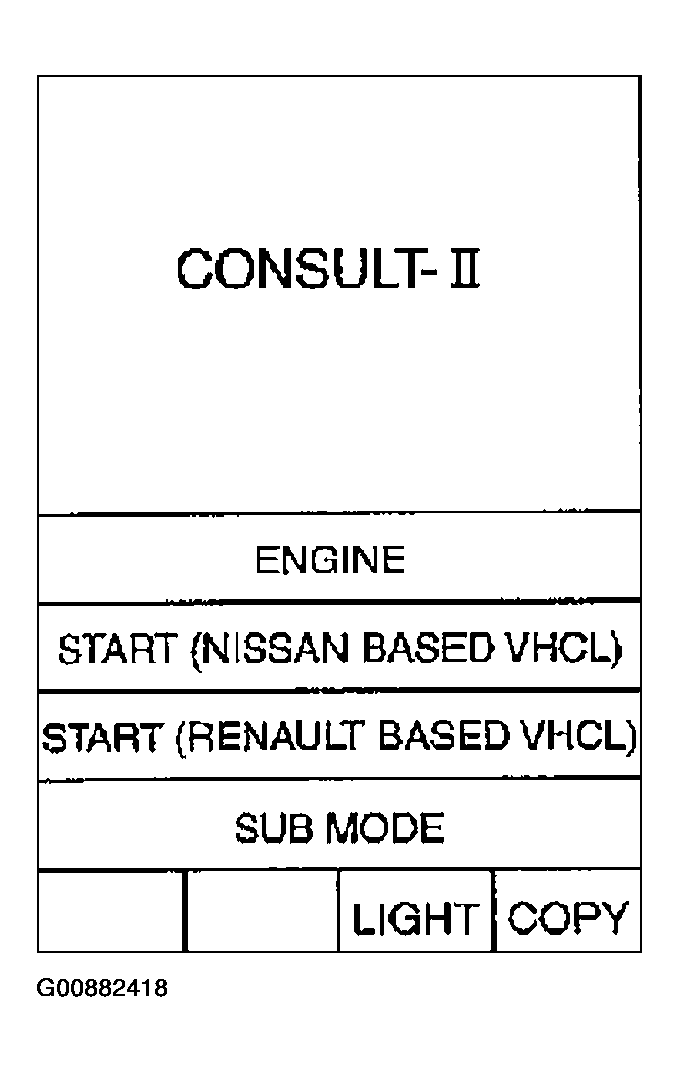

Fig 2: Rear Window Defogger Consult-II Inspection Display (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".

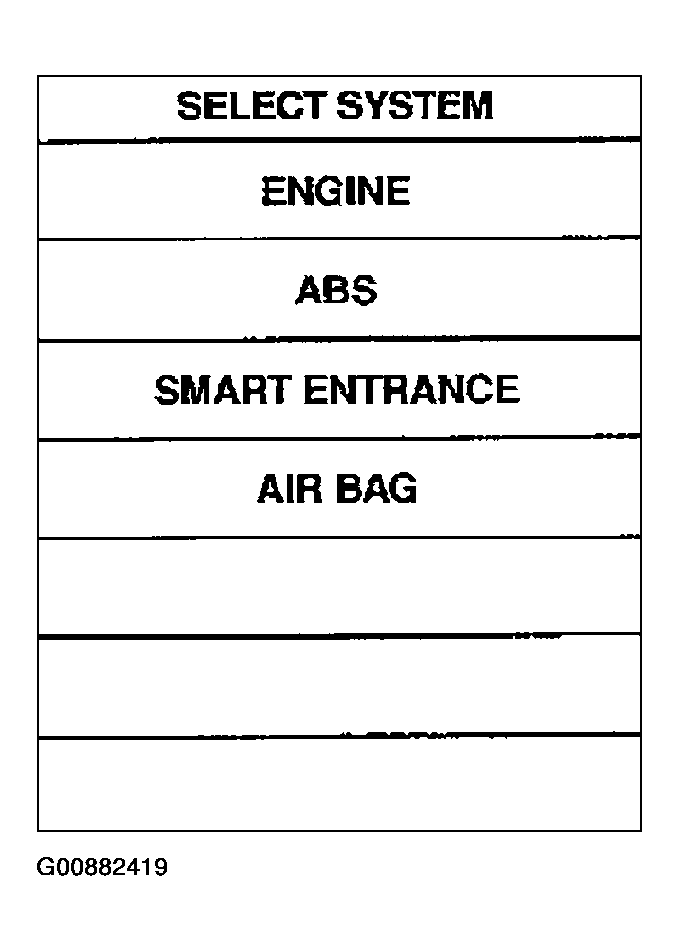

Fig 3: Rear Window Defogger Consult-II Inspection Display (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

If "SMART ENTRANCE" is not indicated, go to CONSULT II START PROCEDURE .
Touch "REAR DEFOGGER".

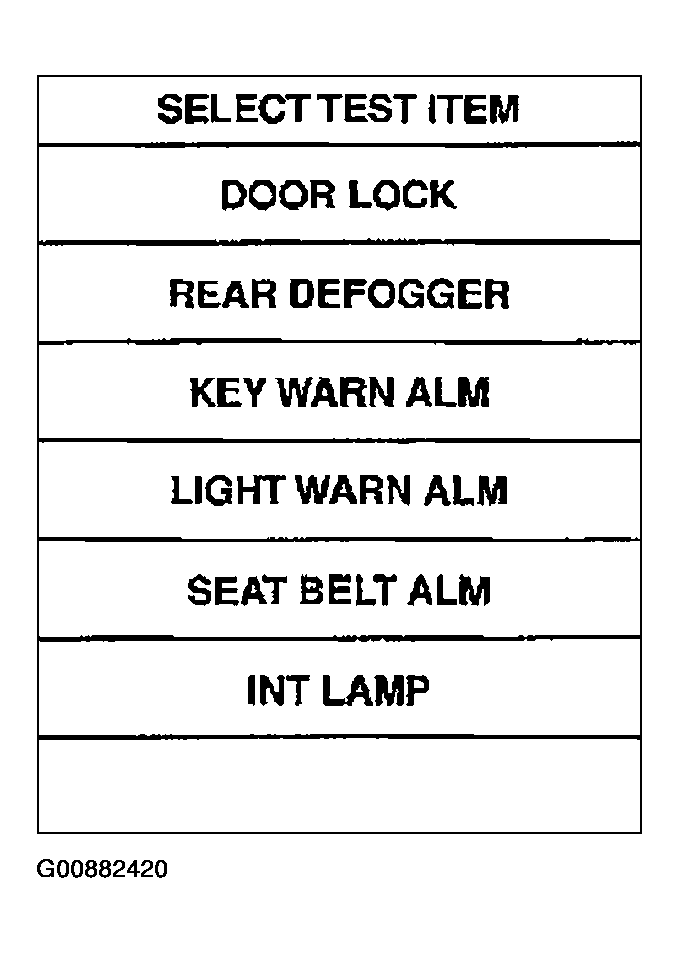

Fig 4: Rear Window Defogger Consult-II Inspection Display (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR" and "ACTIVE TEST" are available.

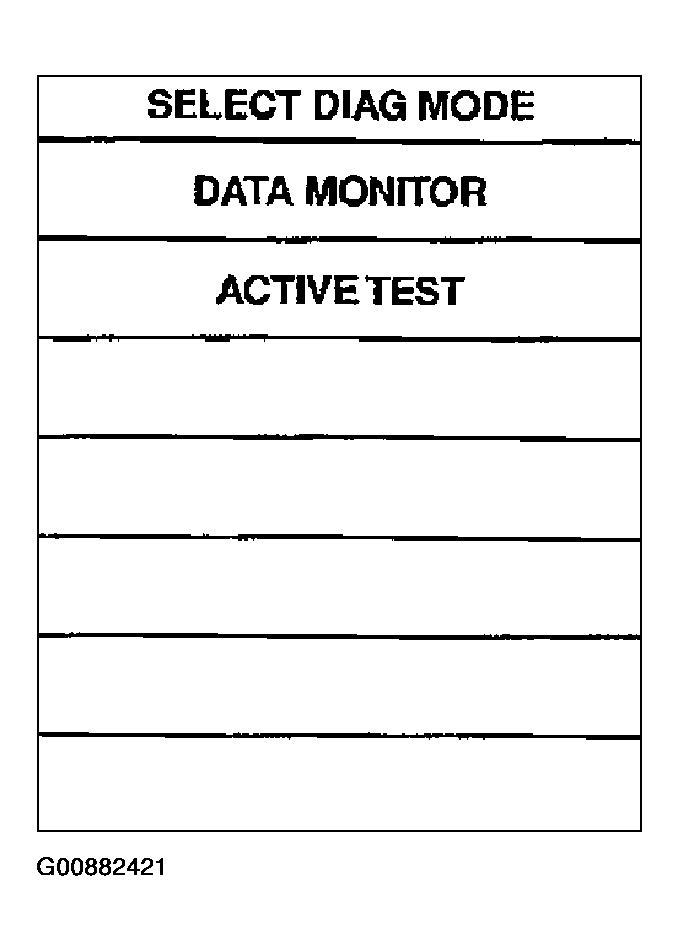

Fig 5: Rear Window Defogger Consult-II Inspection Display (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
