Home >> Infiniti >> 2003 >> FX45 >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> VK45DE >> Oil Pump >> Removal And Installation >> Notes

Removal And Installation: Notes

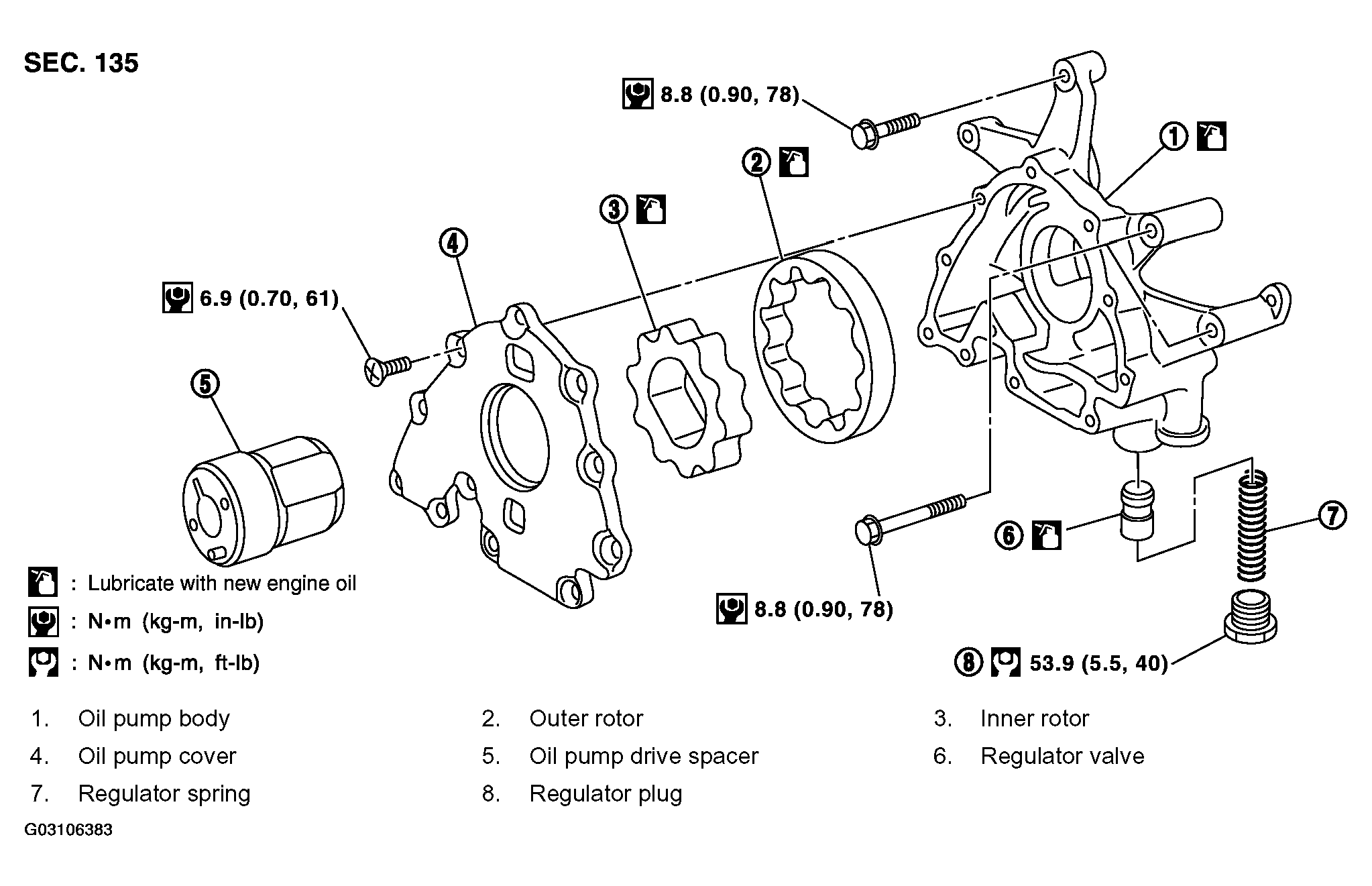

Fig 1: Removing Sequence Of Oil Pump

G03106383

Courtesy of NISSAN MOTOR CO., U.S.A.
