Front Final Drive Assembly: Components

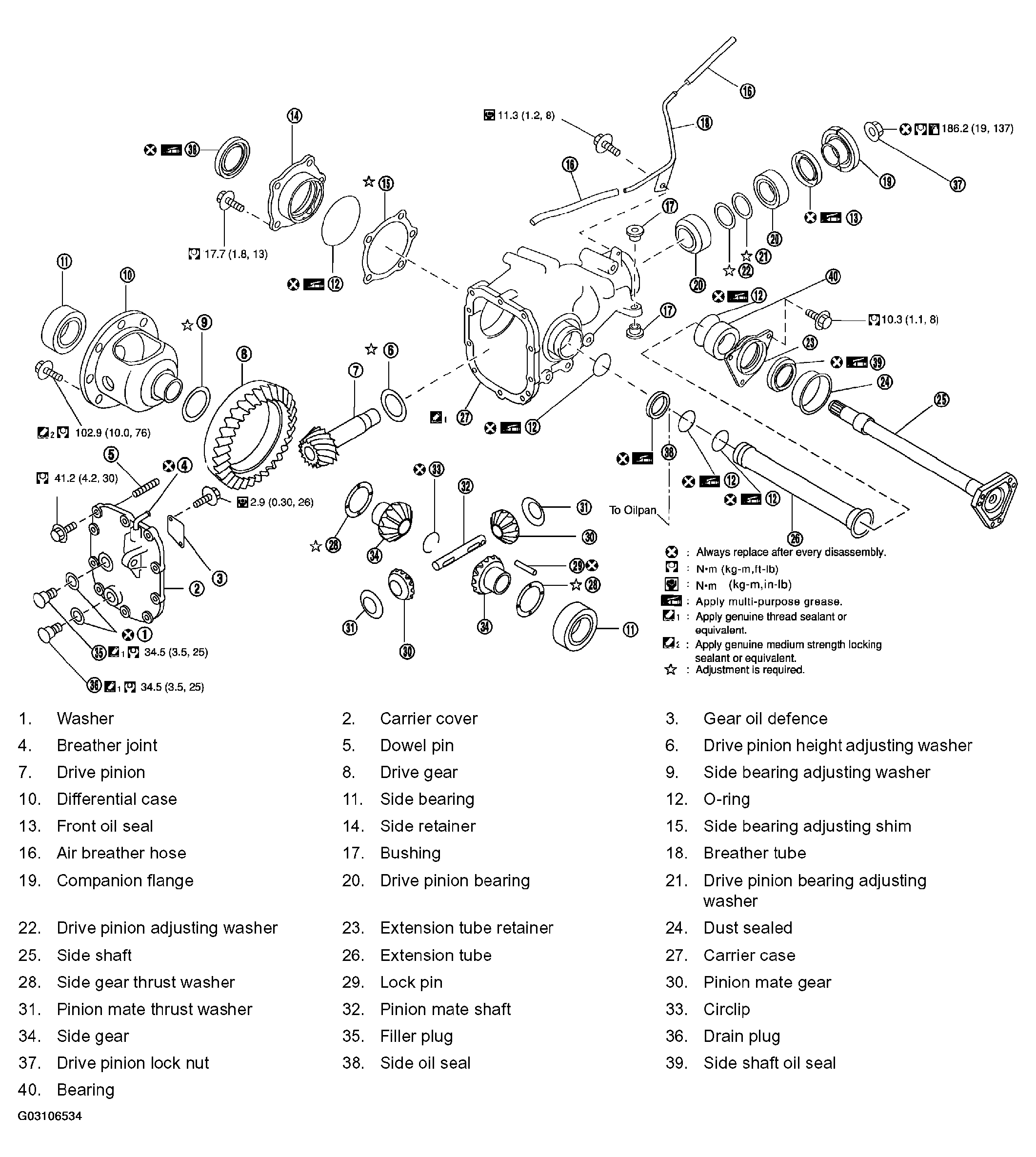

Fig 1: Exploded View Of Front Final Drive Assembly Components (VQ35DE)
G03106534Courtesy of NISSAN MOTOR CO., U.S.A.

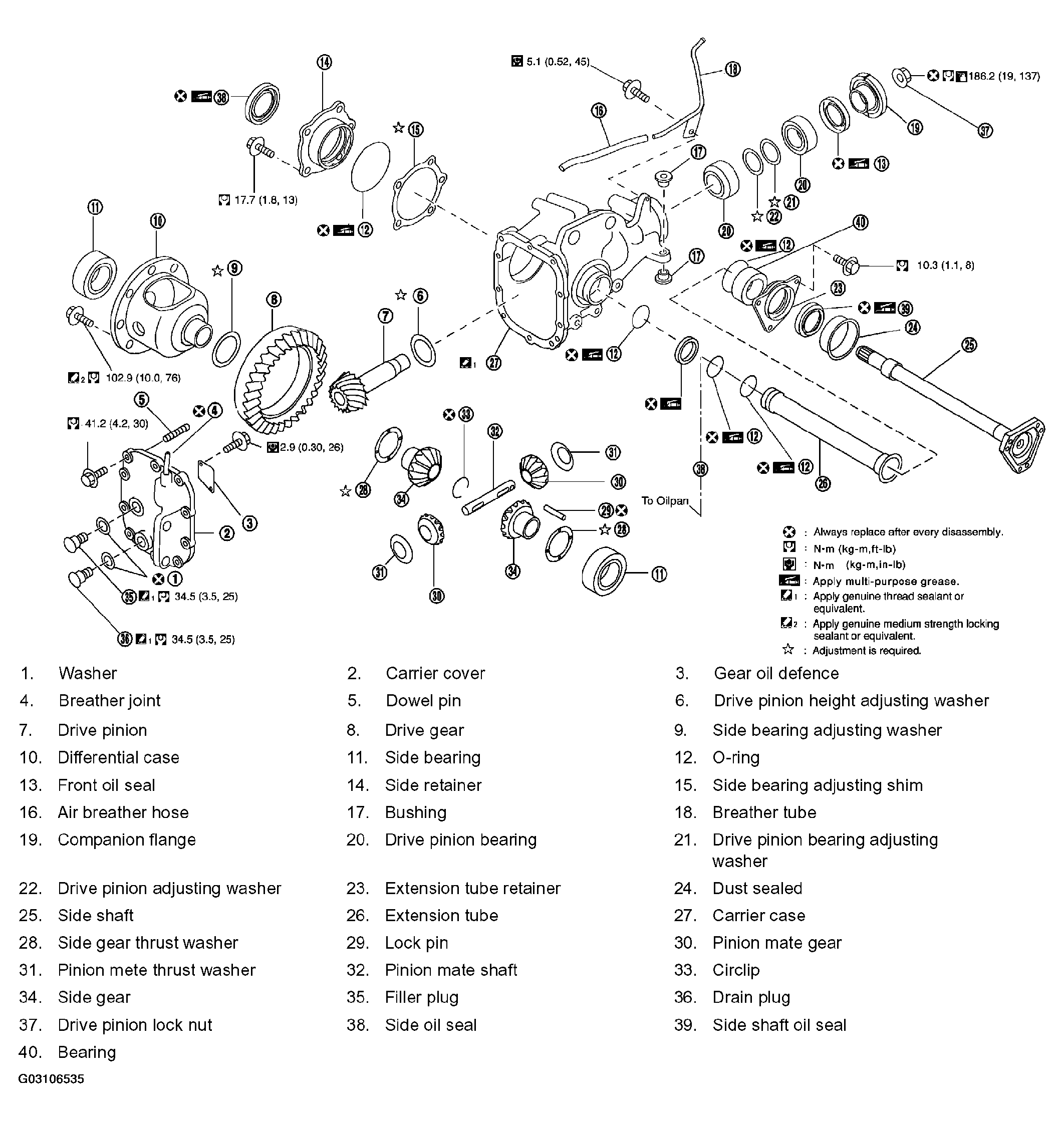

Fig 2: Exploded View Of Front Final Drive Assembly Components (VK45DE)
G03106535Courtesy of NISSAN MOTOR CO., U.S.A.
