Diagnostic Procedure

For DTC P1805 diagnostic procedure, related circuits and connector identification, see Fig 1-Fig 4 .

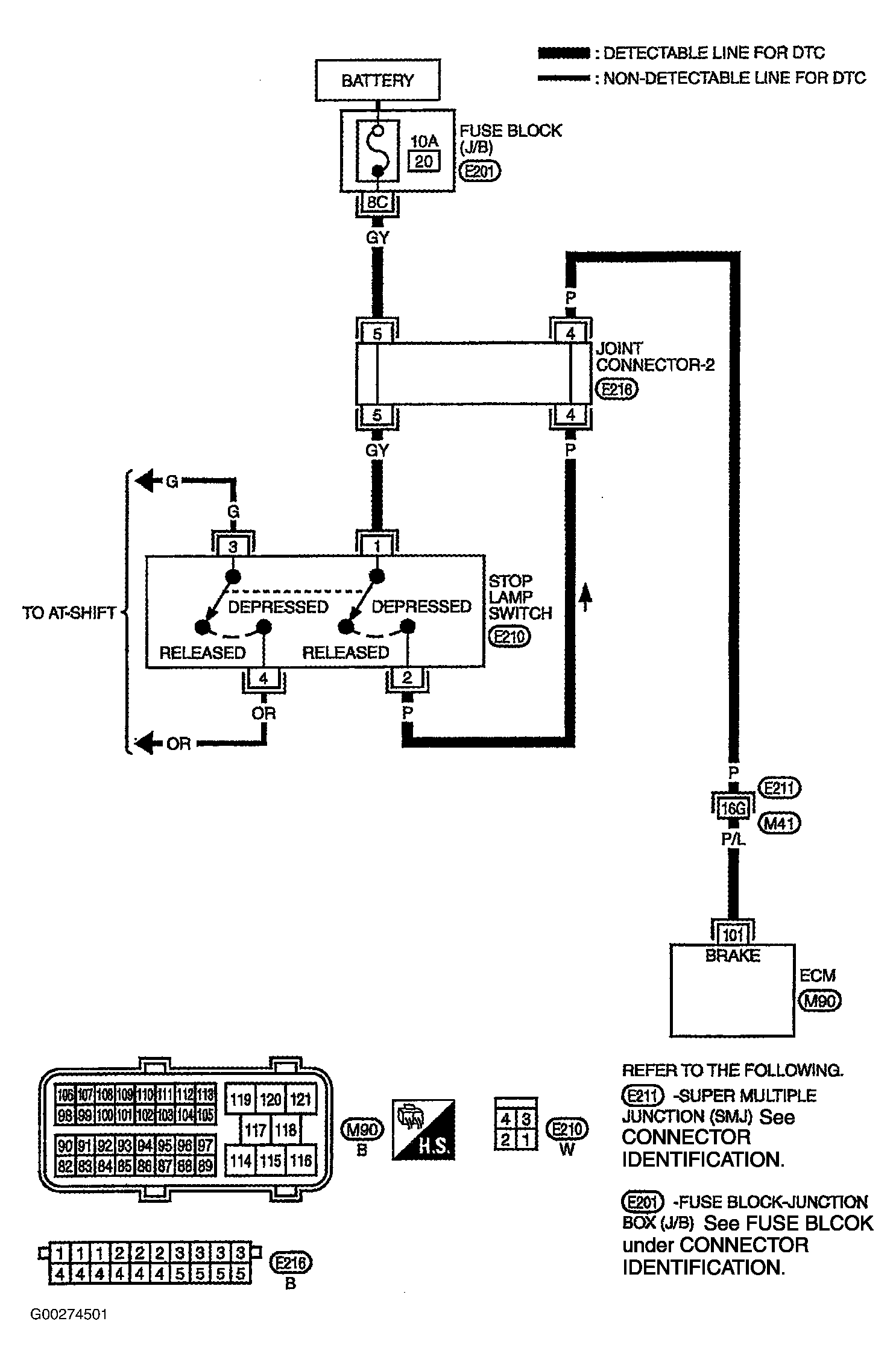

Fig 1: Identifying Brake Switch Related Circuits & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

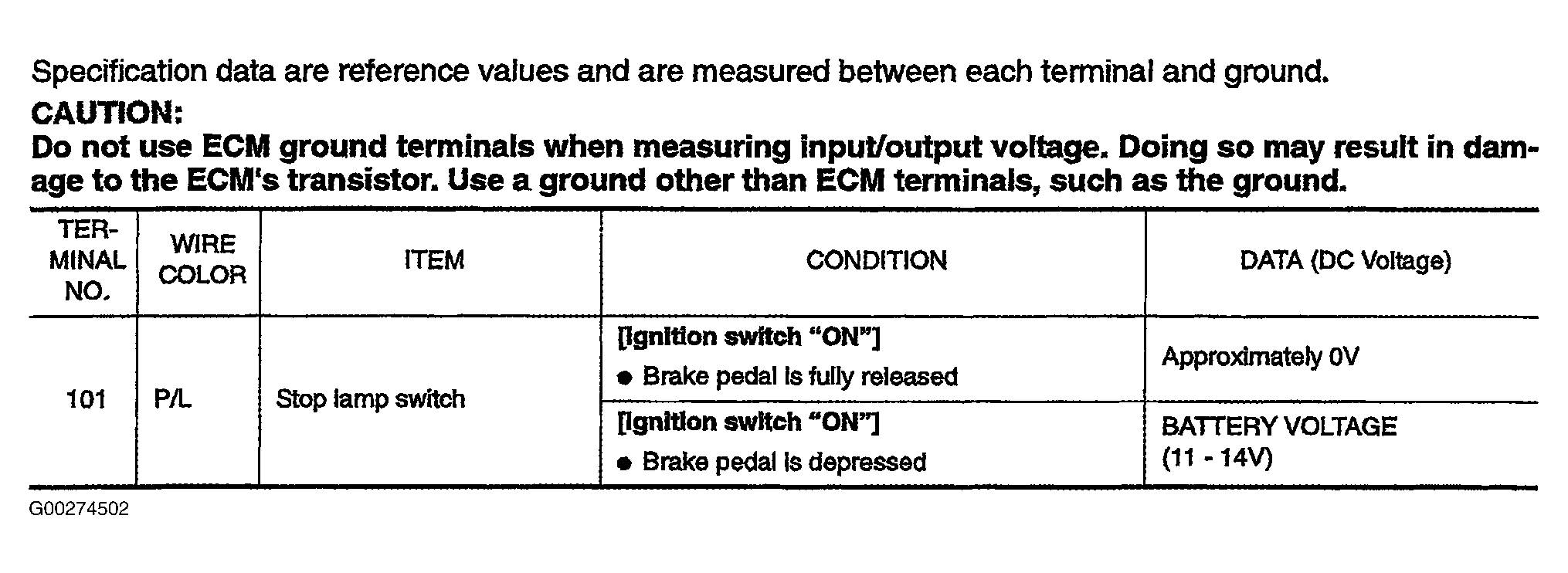

Fig 2: Identifying Brake Switch Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.

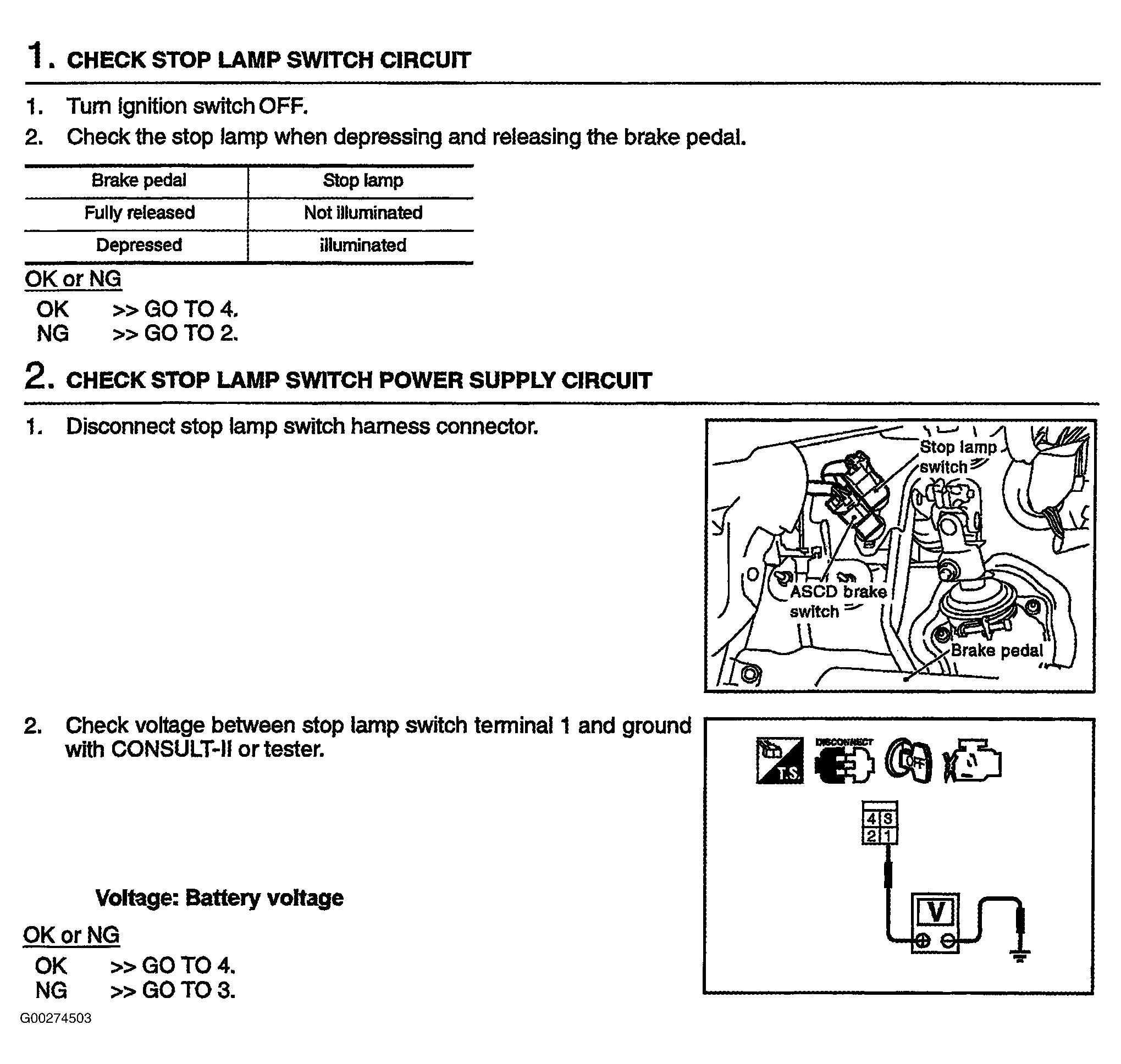

Fig 3: DTC P1805 Diagnostic Procedure (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

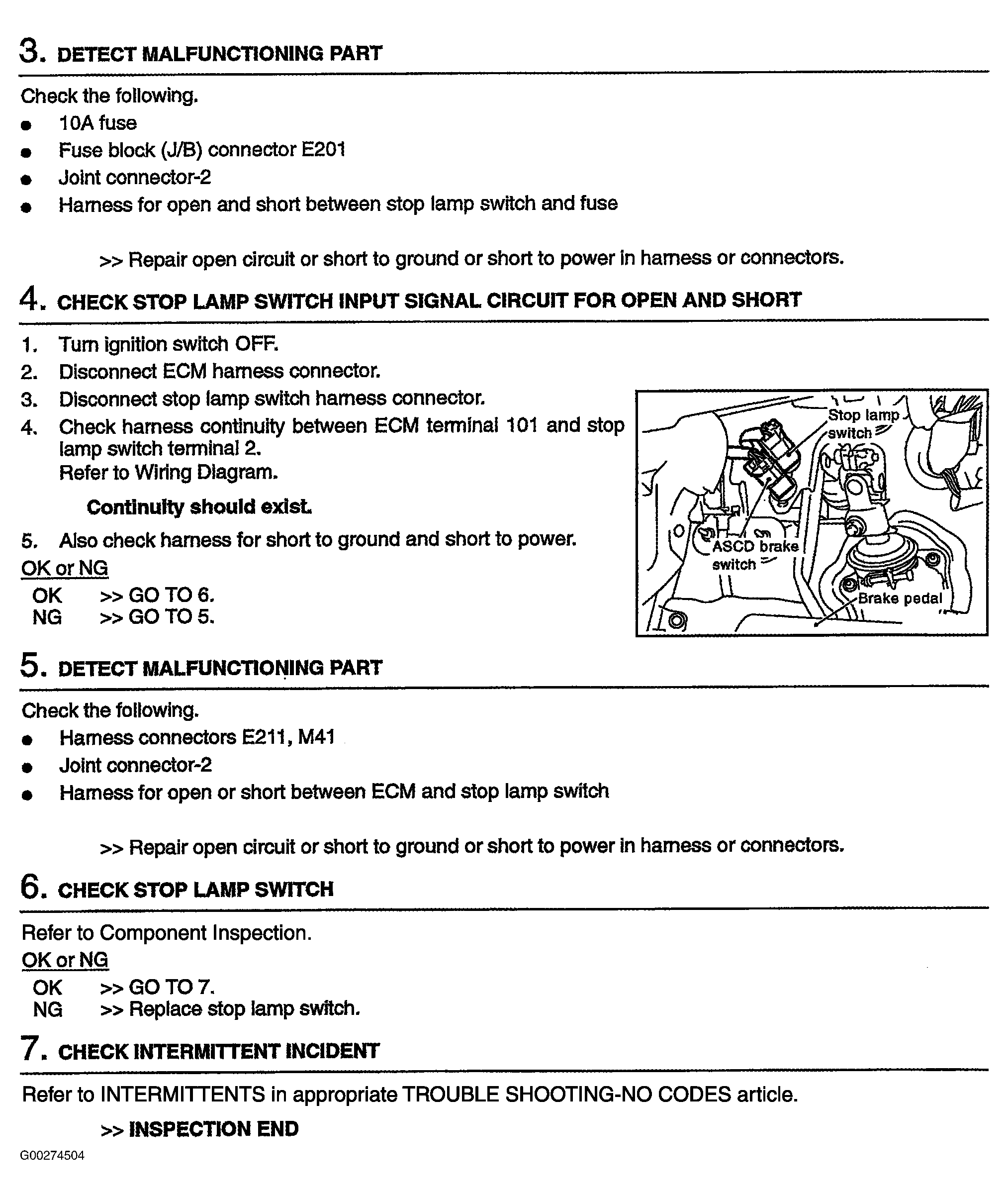

Fig 4: DTC P1805 Diagnostic Procedure (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
