Active Test Mode

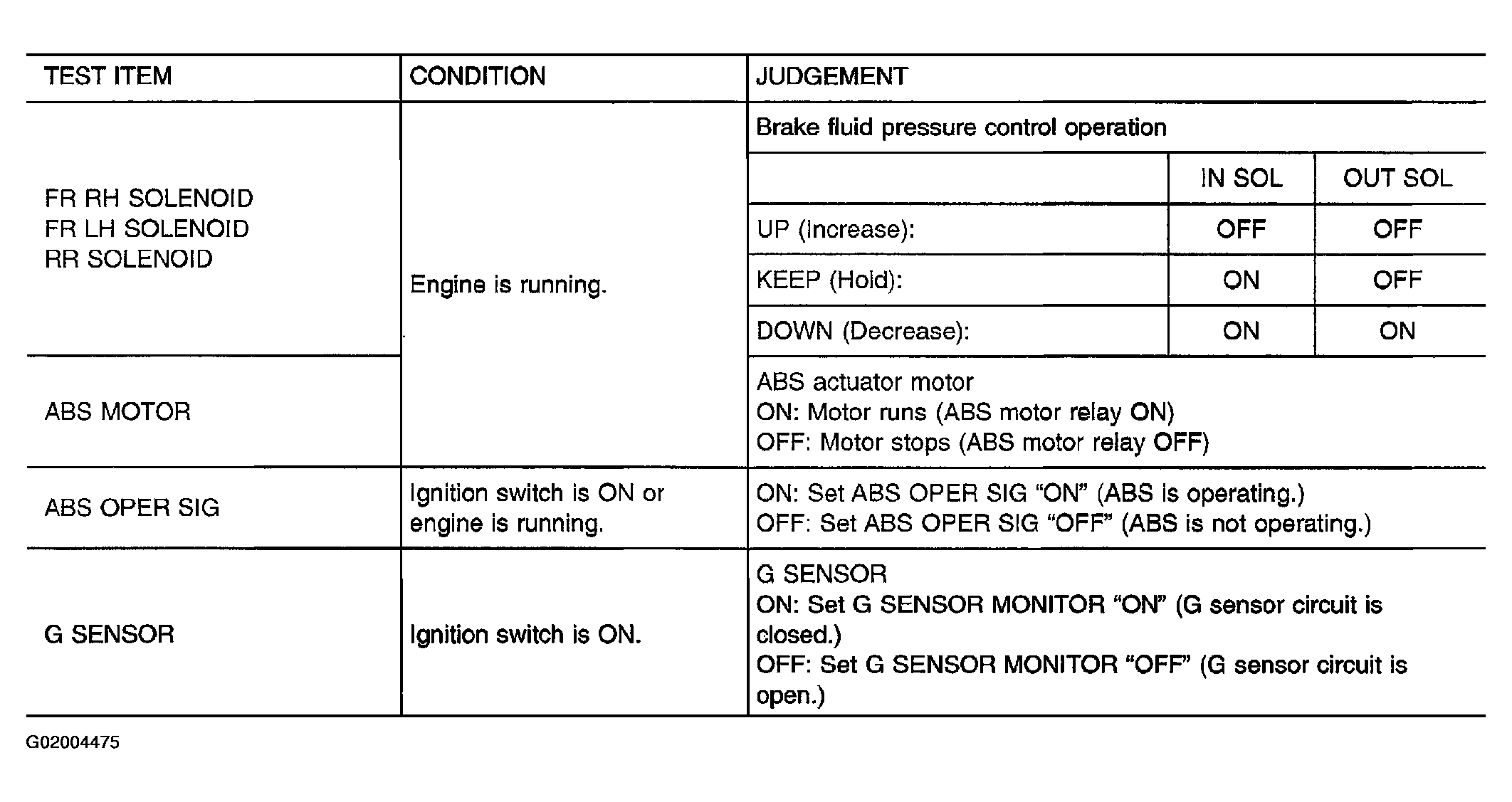

Fig 1: Active Test Mode Specification Table
G02004475Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Active test will automatically stop ten seconds after the test starts. (TEST IS STOPPED monitor shows ON.)
