Trouble Diagnosis: Schematic

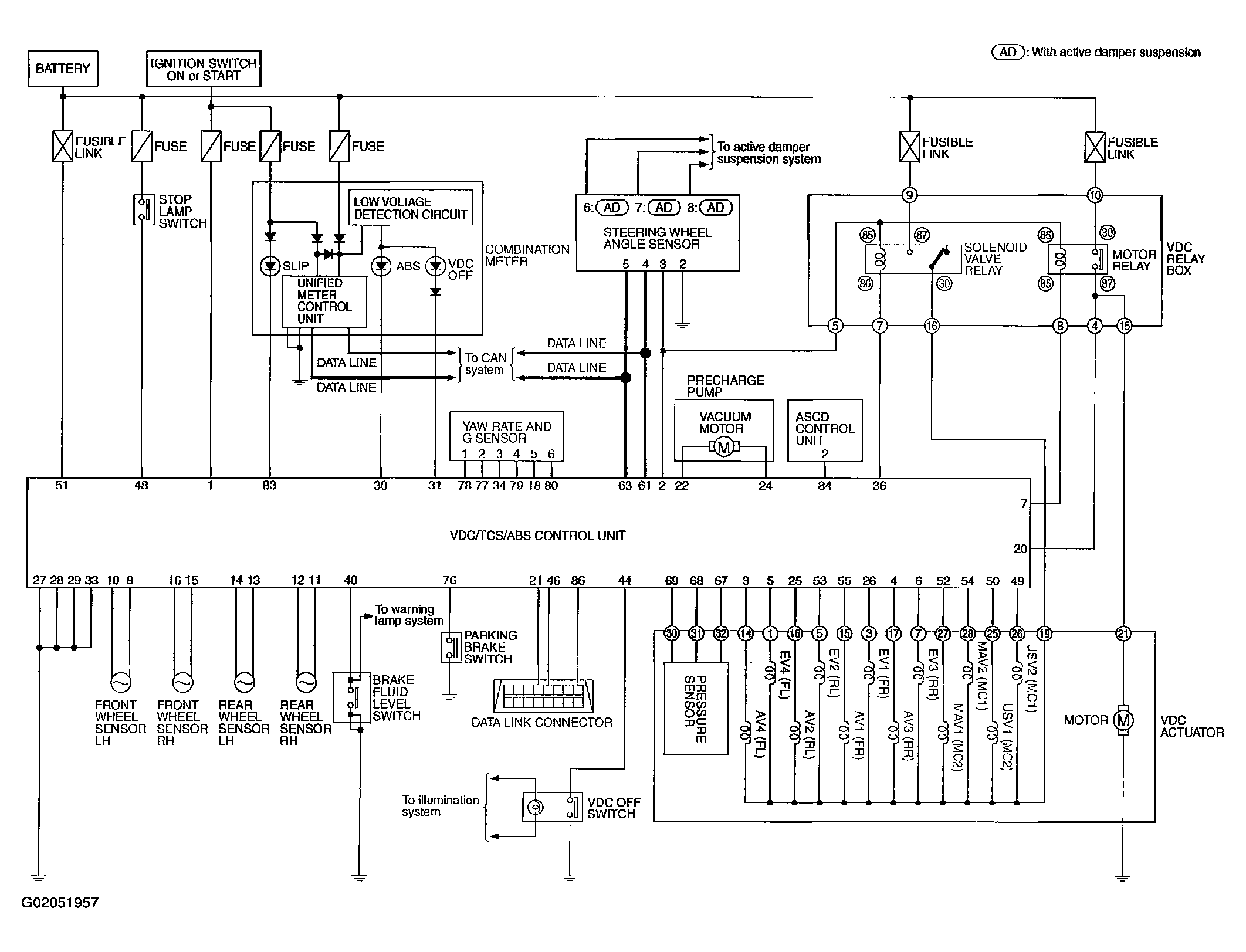

Fig 1: Identifying Anti-Lock/Traction Control System Components & Circuits
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
