Items To Be Displayed

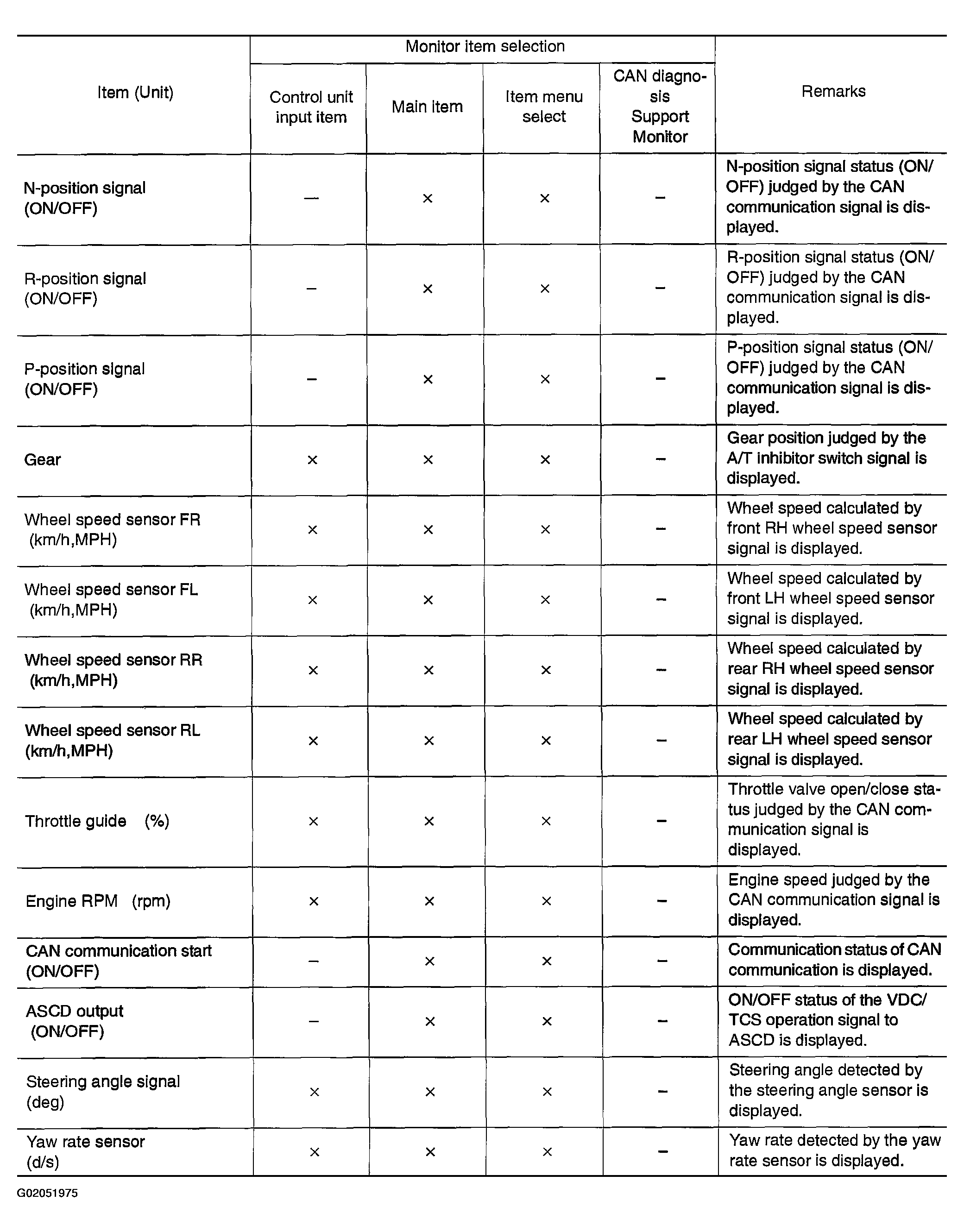

Fig 1: Identifying Items Displayed On Data Monitor (1 Of 4)
G02051975Courtesy of NISSAN MOTOR CO., U.S.A.

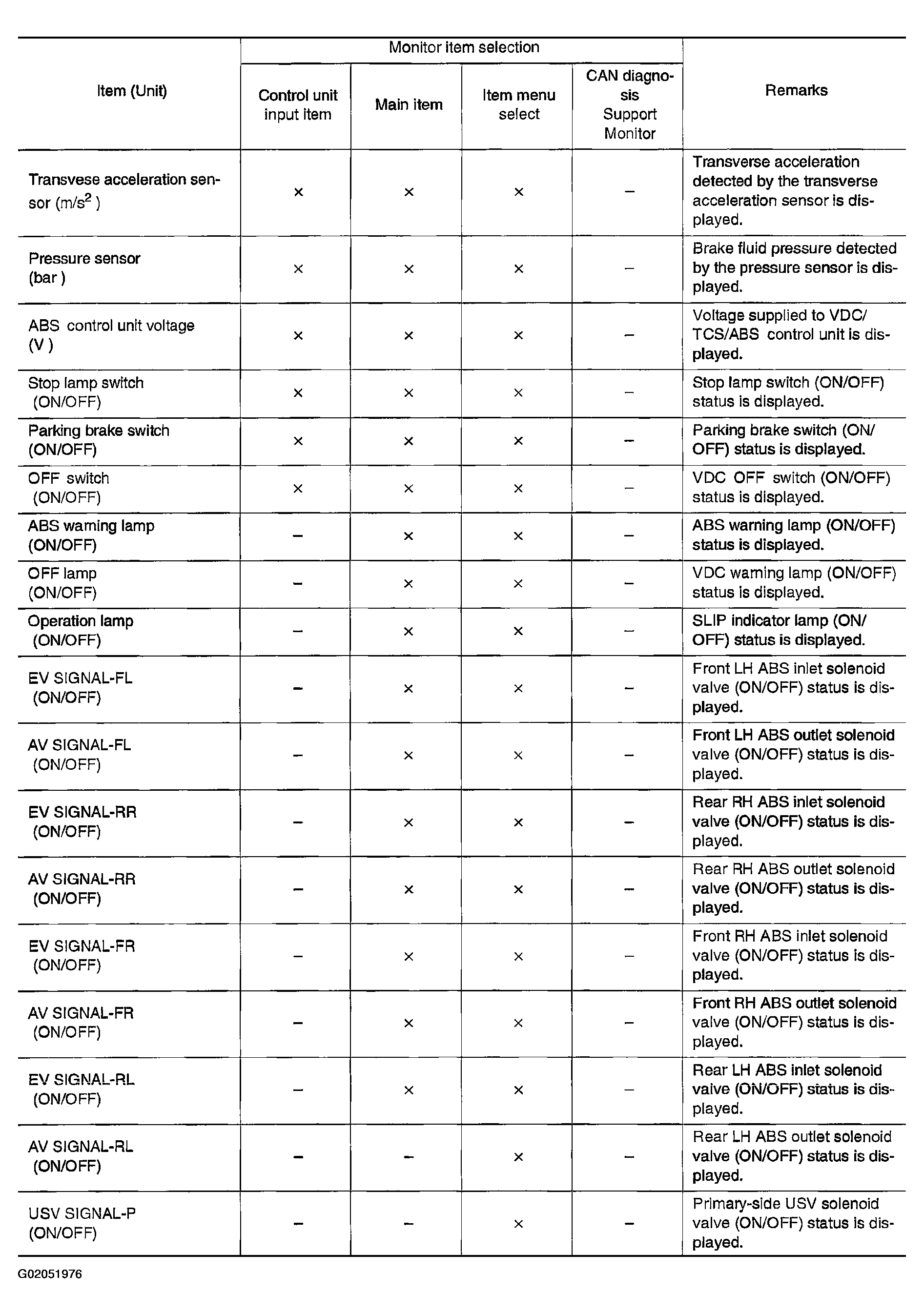

Fig 2: Identifying Items Displayed On Data Monitor (2 Of 4)
G02051976Courtesy of NISSAN MOTOR CO., U.S.A.

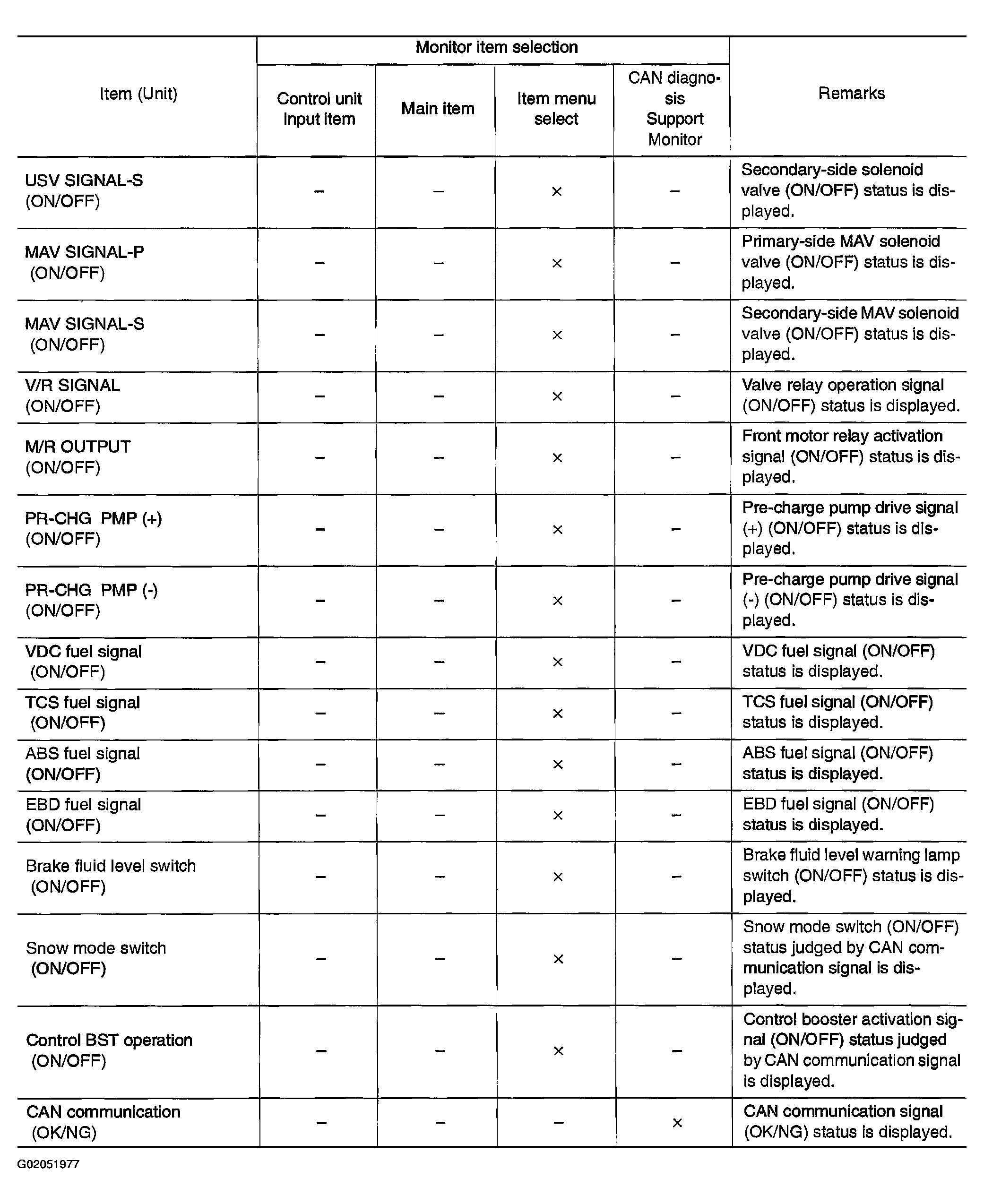

Fig 3: Identifying Items Displayed On Data Monitor (3 Of 4)
G02051977Courtesy of NISSAN MOTOR CO., U.S.A.

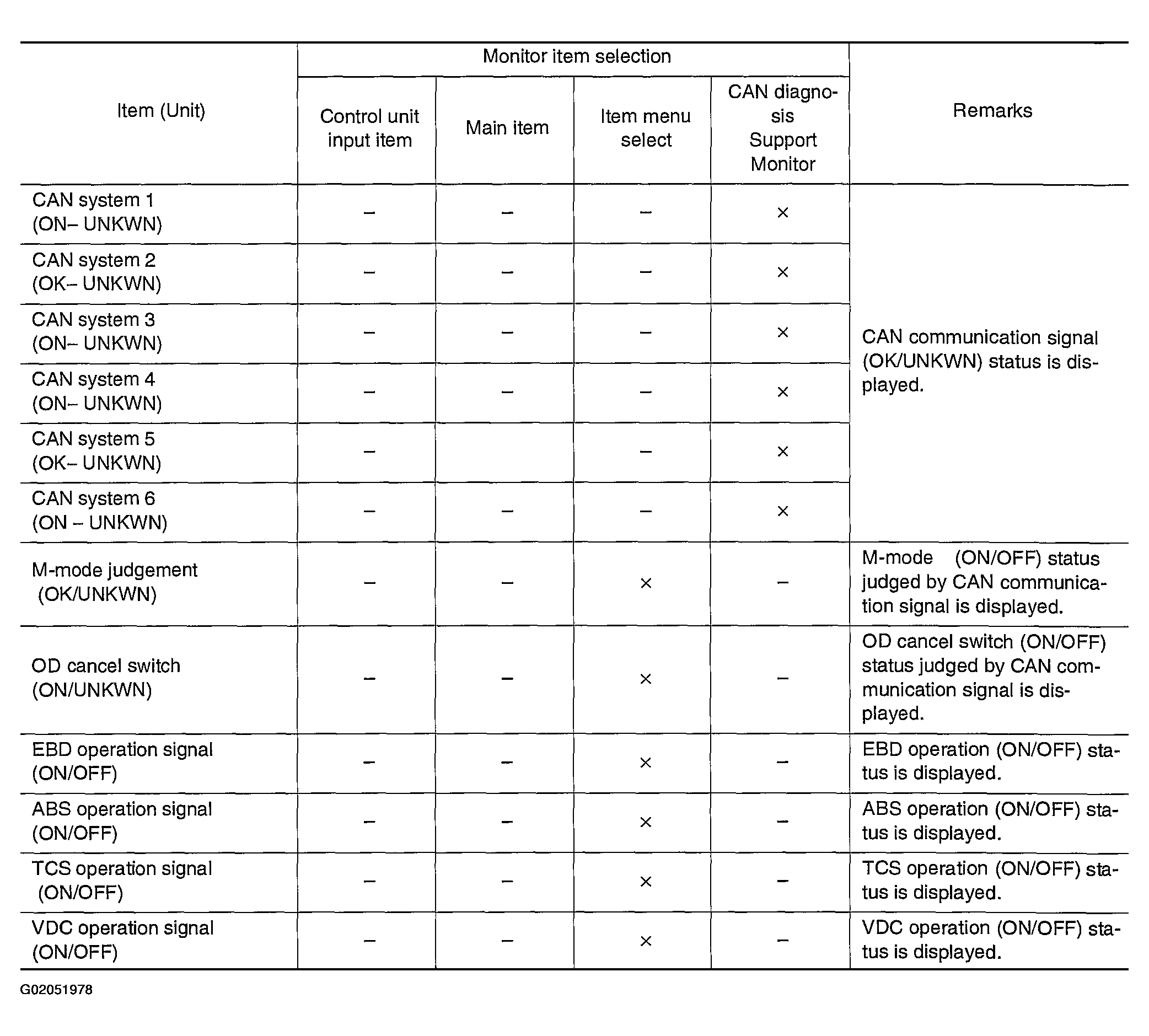

Fig 4: Identifying Items Displayed On Data Monitor (4 Of 4)
G02051978Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  1. Automatic vehicle distance control system main control unit
