Home >> Infiniti >> 2002 >> G20 Standard, RS5F70W >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle >> Service Data And Specifications (SDS) >> General Specifications >> Transaxle

General Specifications: Transaxle

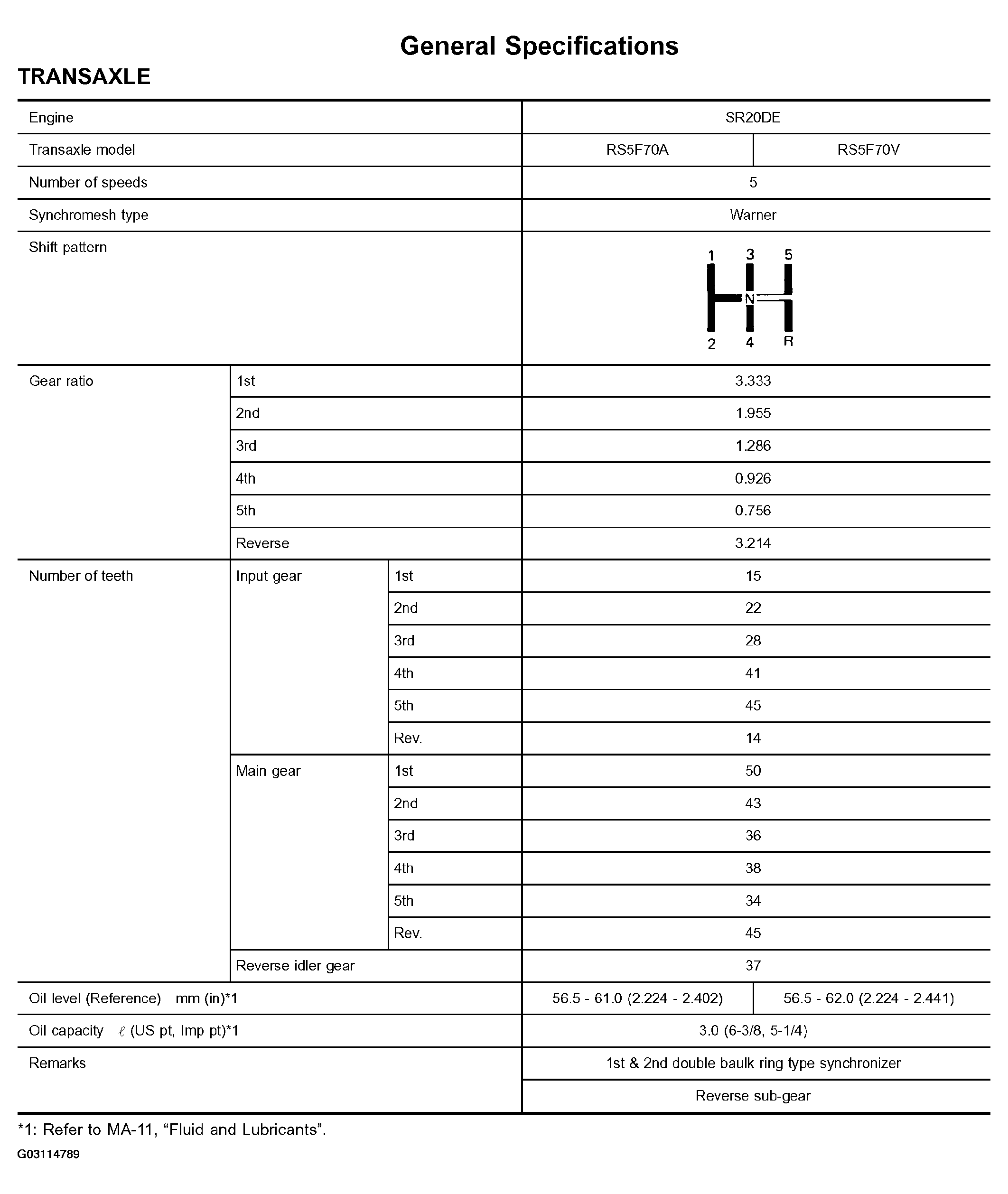

Fig 1: Transaxle Specifications

G03114789

Courtesy of NISSAN MOTOR CO., U.S.A.
