Section 2 (Manual Transaxle)
>>
On-Vehicle Service
>>
Position Switch Check
>>
PNP Switch
PNP Switch
WARNING:
This page is about a different variant/trim than selected.
Check continuity.
PNP SWITCH CONTINUITY SPECIFICATIONS
Gear position
Continuity
Neutral
Yes
Except neutral
No

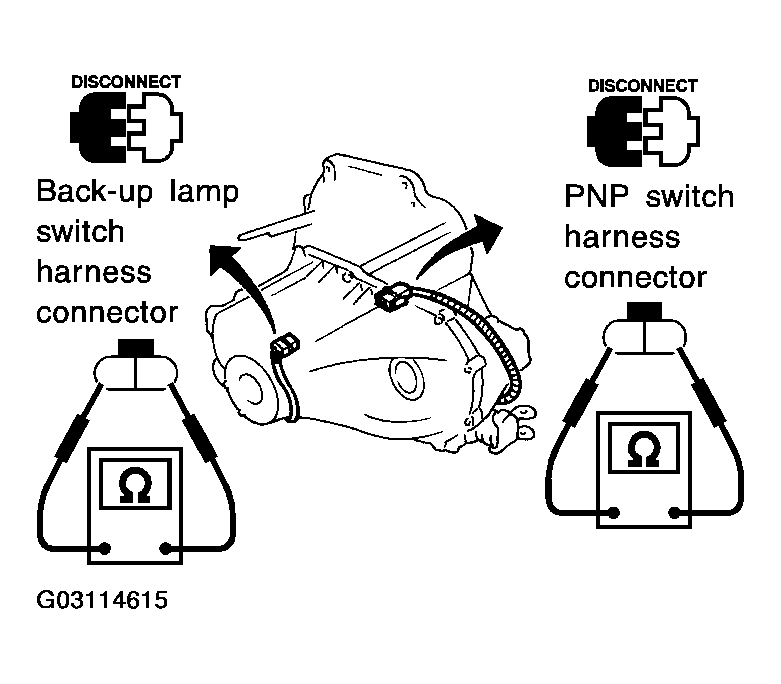

Fig 1: Checking Back-Up Lamp & PNP Switch Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
