Checking Key Switch (Insert)

Use illustration to check key switch. See Fig 1 .

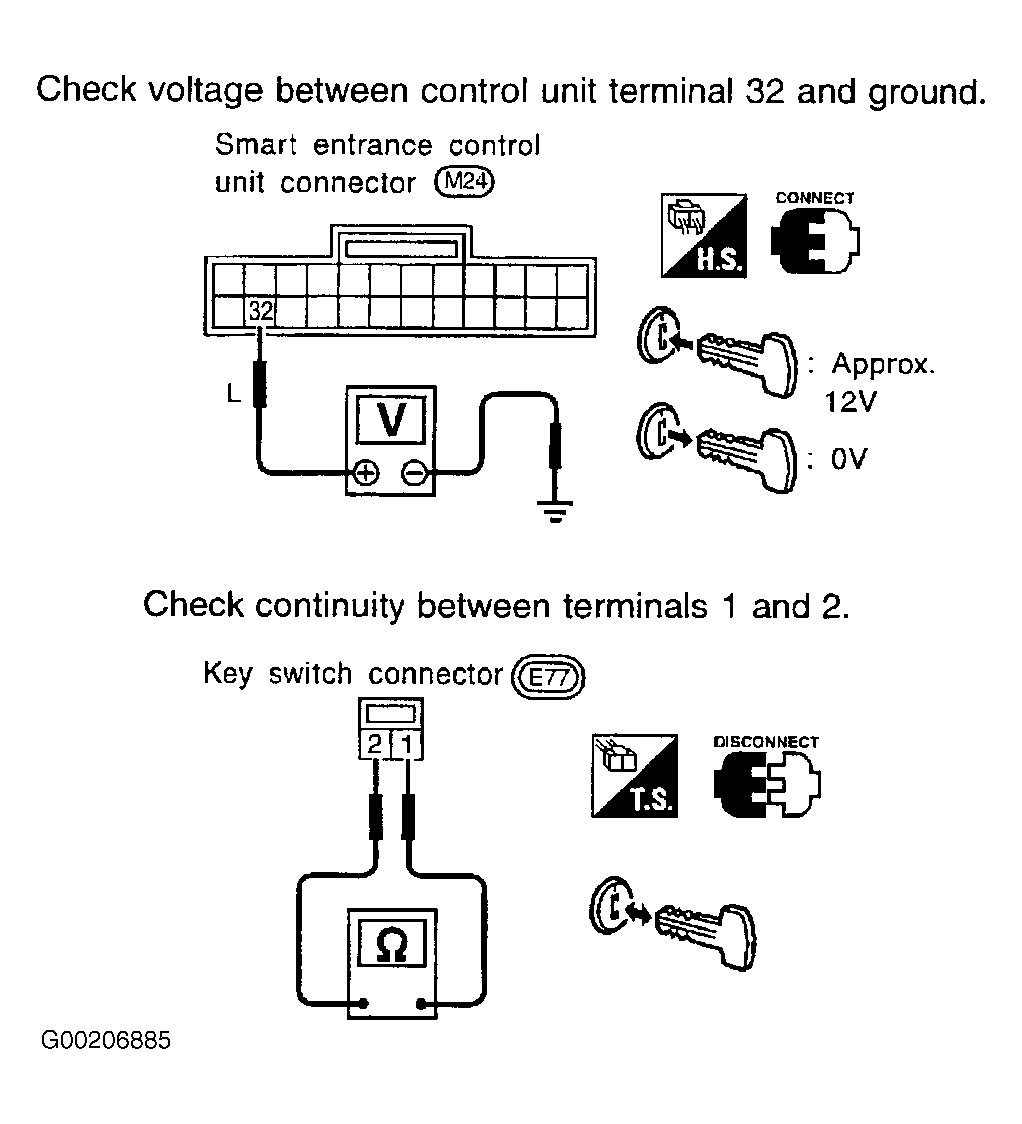

Fig 1: Checking Key Switch (Insert)

G00206885

Courtesy of NISSAN MOTOR CO., U.S.A.
