Home >> Infiniti >> 2001 >> Q45 Base >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Cooling System Servicing >> Engine Cooling System >> Thermostat >> Notes

Engine Cooling System: Thermostat: Notes

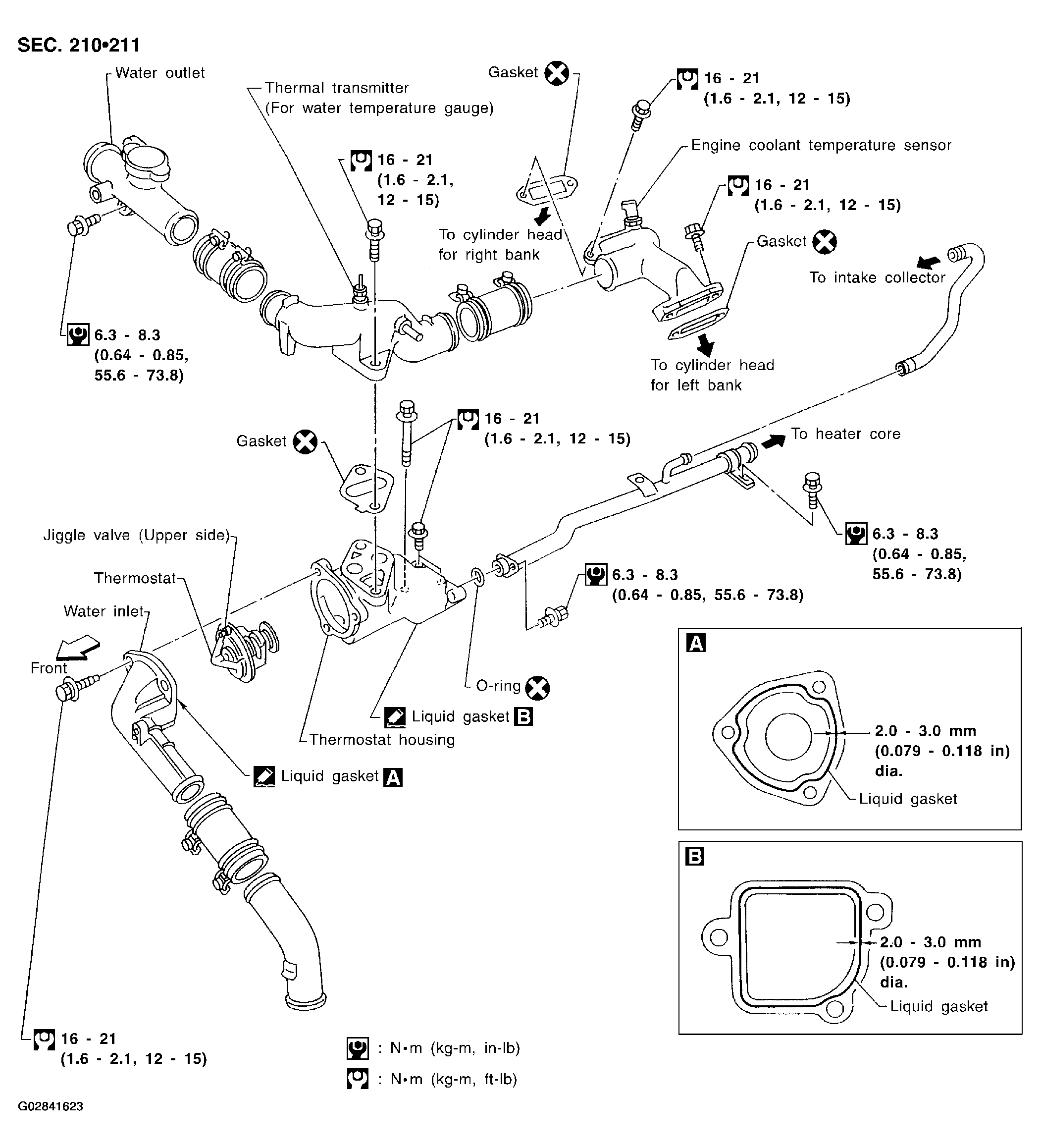

Fig 1: Removing Thermostat

G02841623
