Wiring Diagram - Navigation System

NOTE: For complete Wiring Diagram information see NAVIGATION .

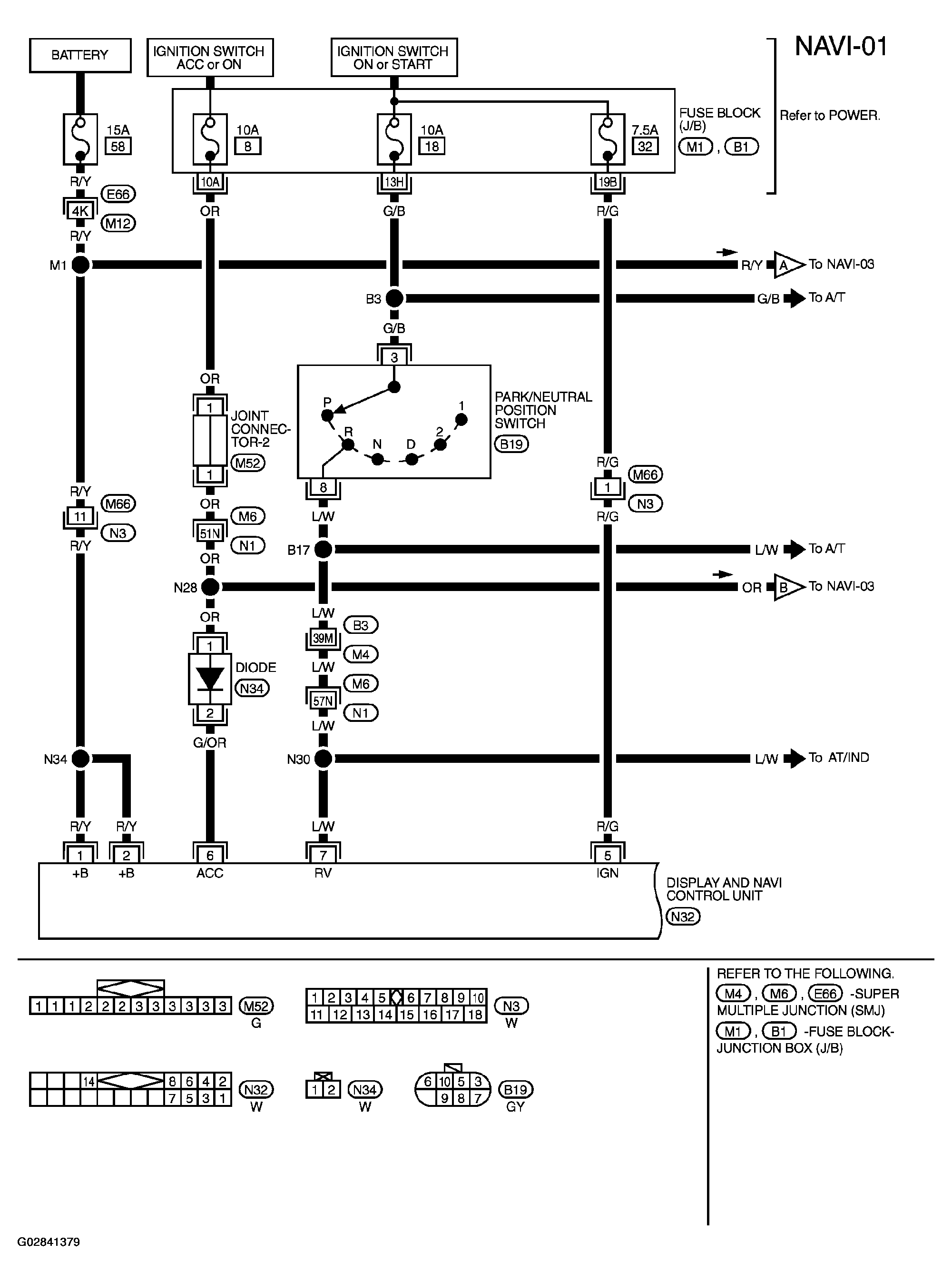

Fig 1: Wiring Diagram - NAVI (1 Of 4)

G02841379

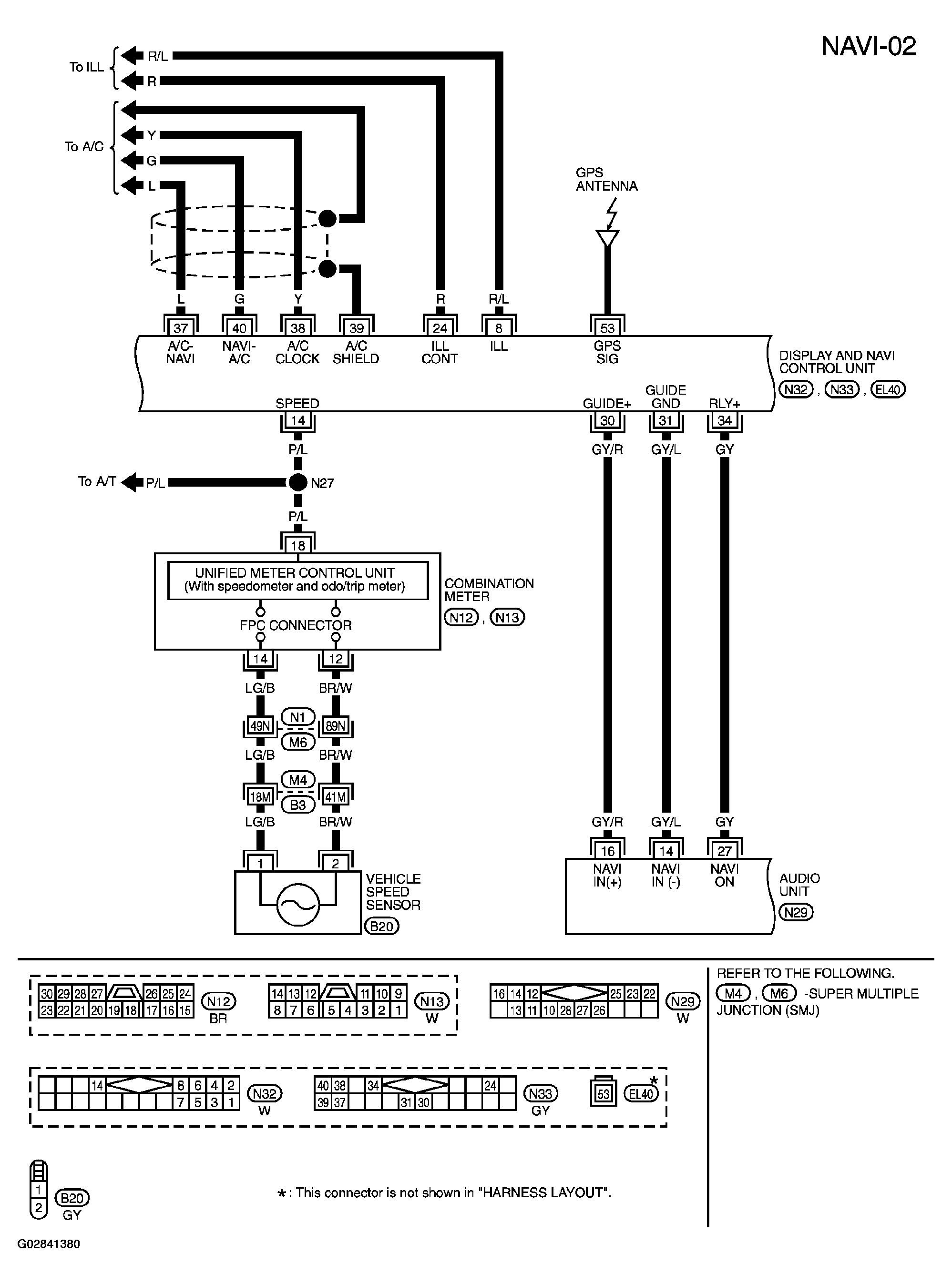

Fig 2: Wiring Diagram - NAVI (2 Of 4)

G02841380

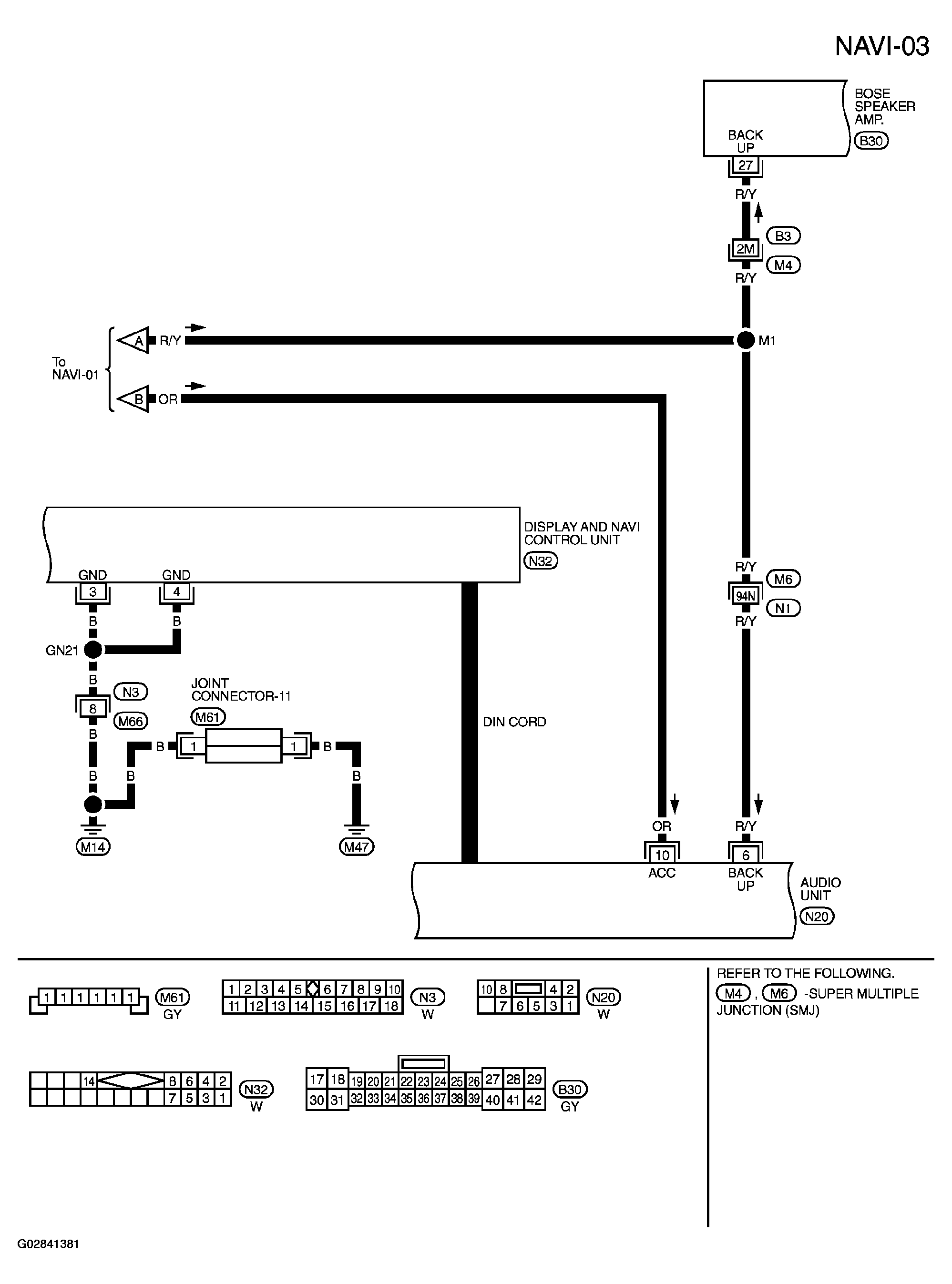

Fig 3: Wiring Diagram - NAVI (3 Of 4)

G02841381

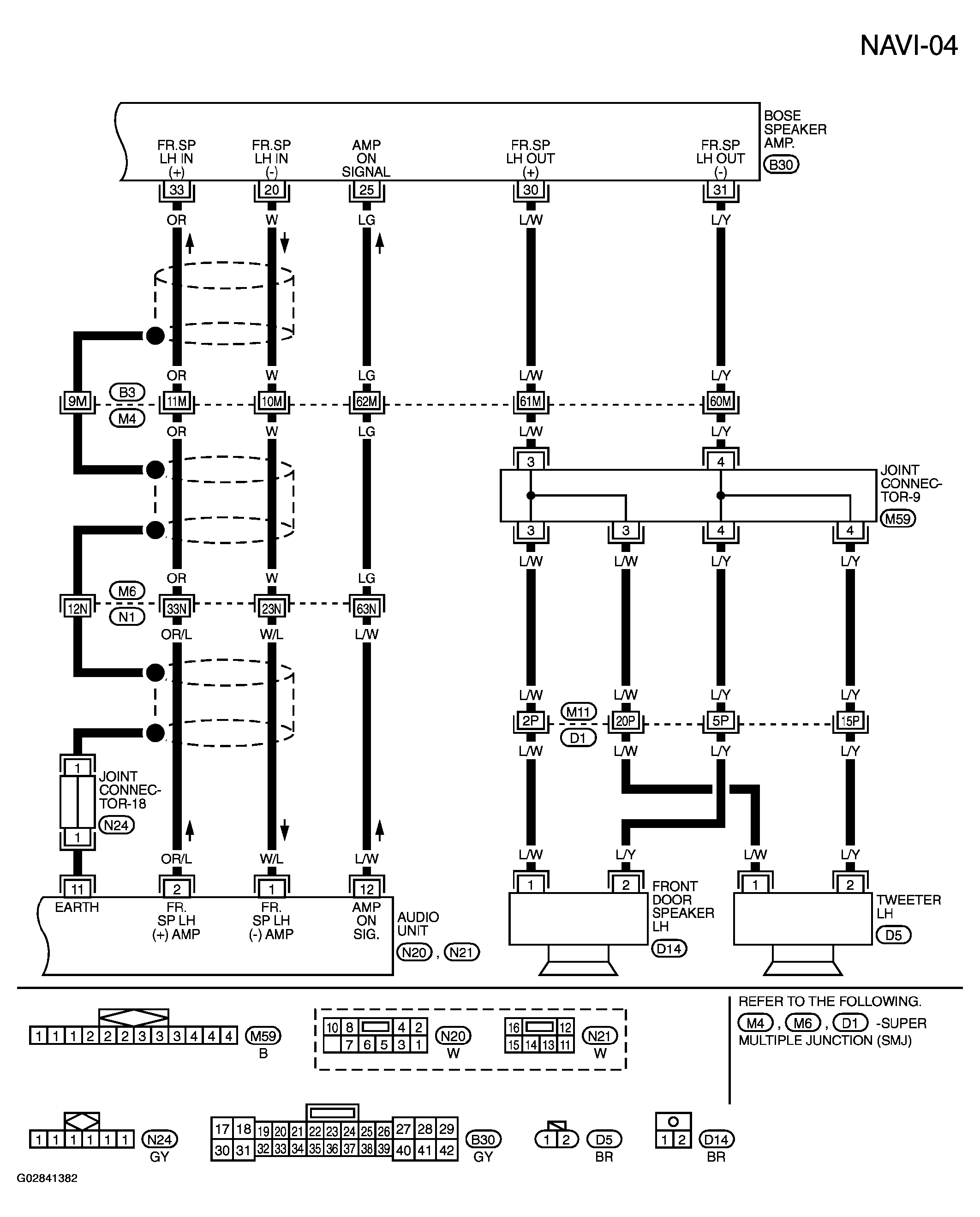

Fig 4: Wiring Diagram - NAVI (4 Of 4)

G02841382
