Active Test Procedure

When conducting Active test, vehicle must be stationary.

When ABS warning lamp stays on, never conduct Active test.

1. Turn ignition switch OFF.
2. Connect CONSULT-II to Data Link Connector.
3. Start engine.
4. Touch "START" on CONSULT-II screen.

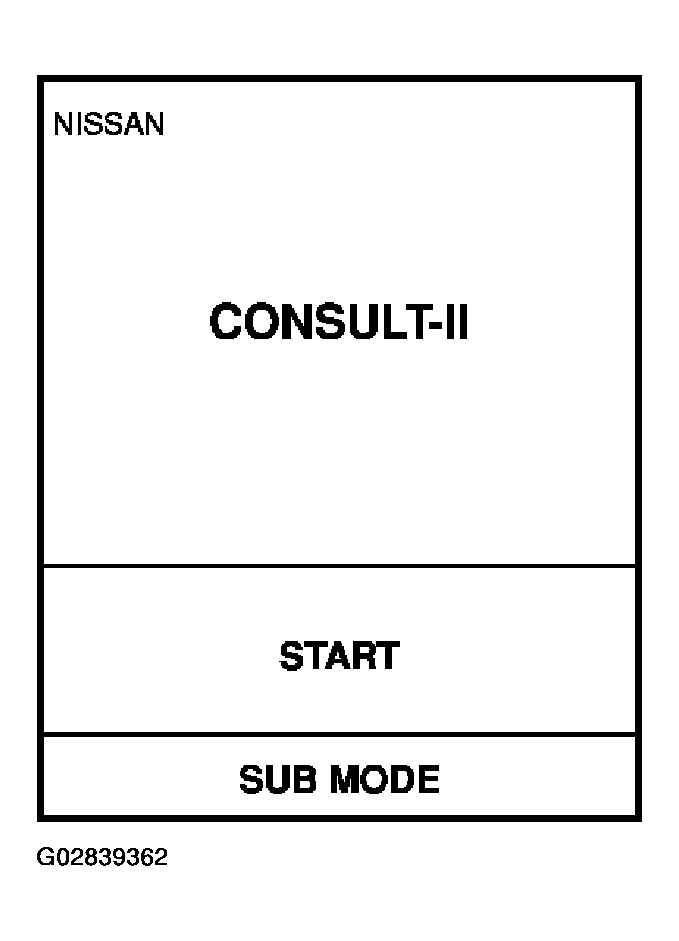

   Fig 1: Identifying Touch CONSULT-II Screen Display


5. Touch "ABS".

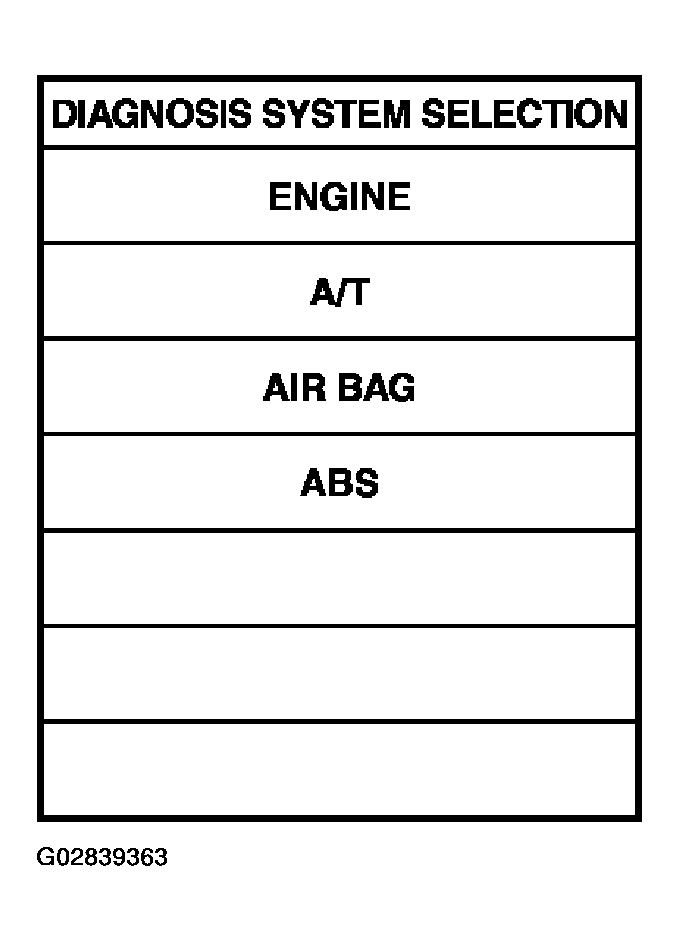

   Fig 2: Identifying Touch ABS Display


6. Touch "ACTIVE TEST".

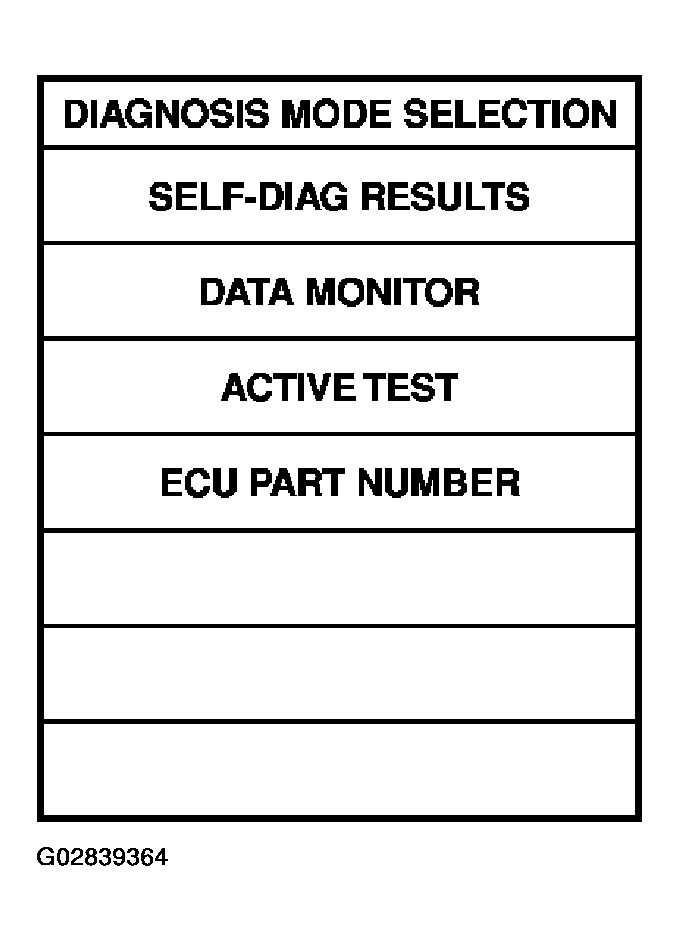

   Fig 3: Identifying Touch ACTIVE TEST


7. Select active test item by touching screen.

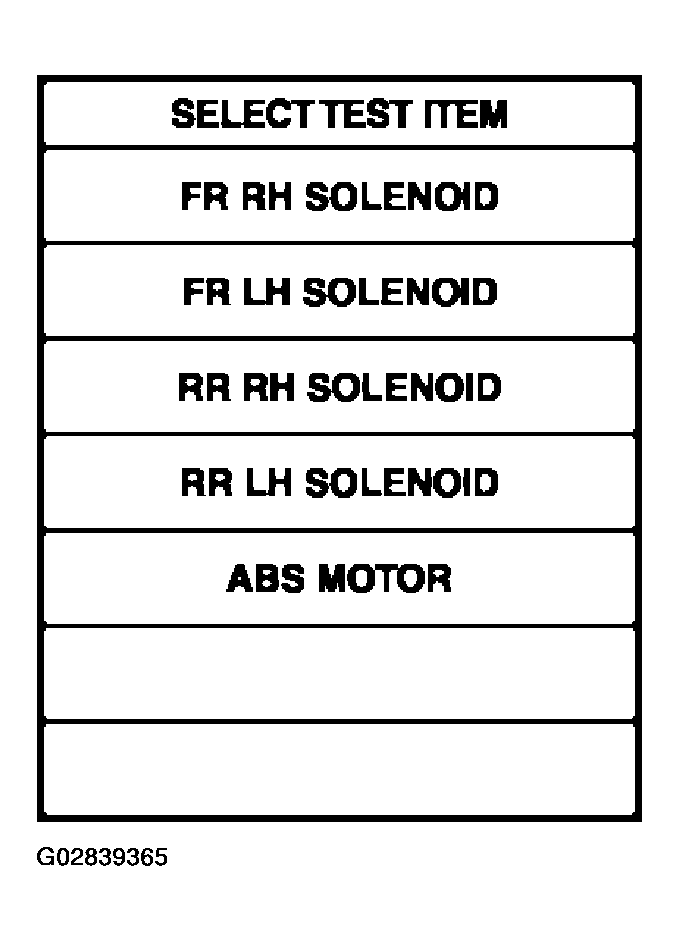

   Fig 4: Selecting Active Test Item By Touching Screen


8. Touch "START".
9. Carry out the active test by touching screen key.

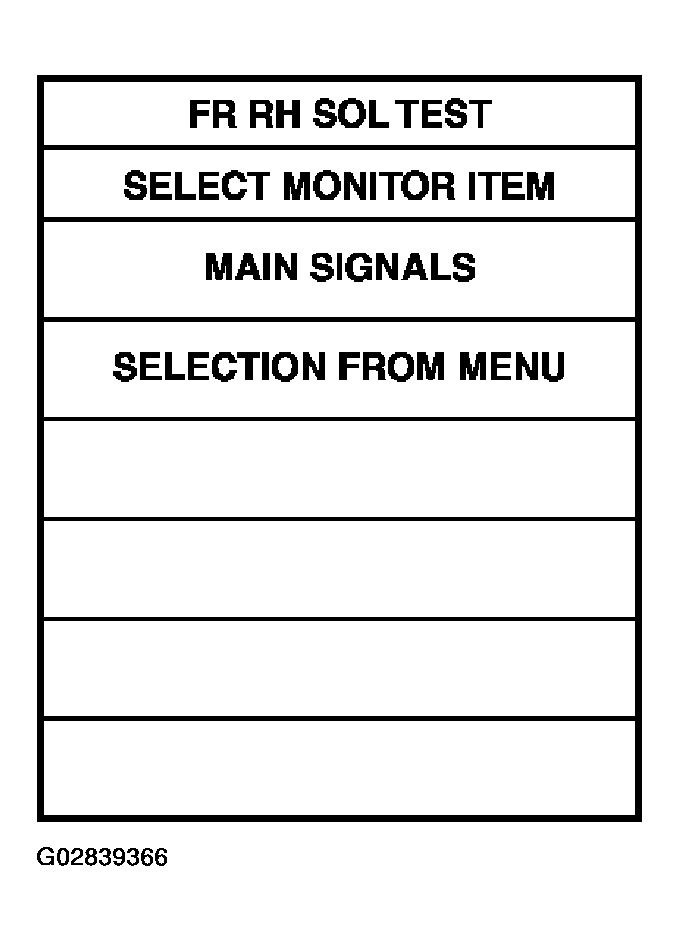

   Fig 5: Identifying Touch START Display
