Wiring Diagram-WINDOW-

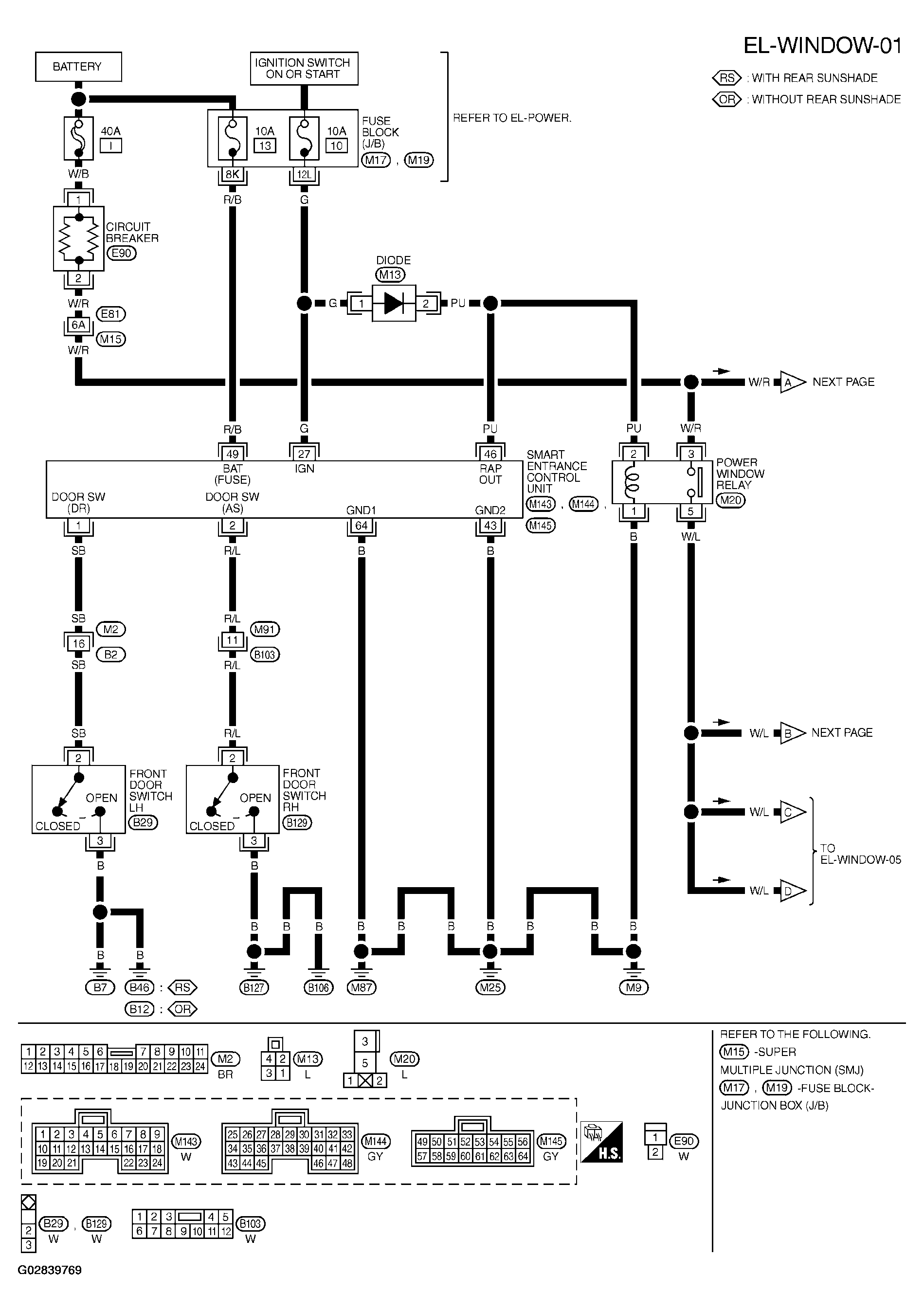

Fig 1: Power Window Wiring Diagram (1 Of 5)

G02839769

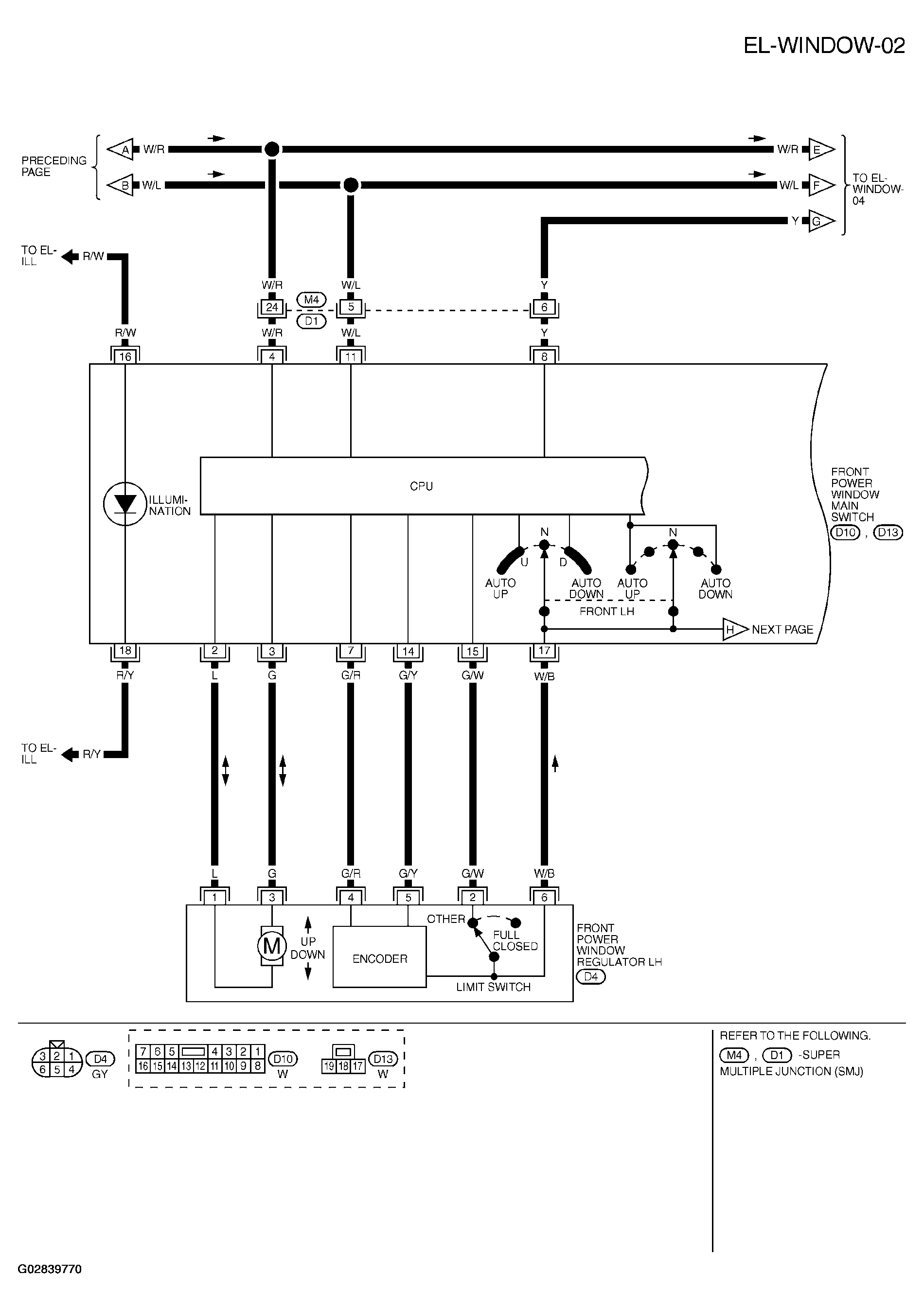

Fig 2: Power Window Wiring Diagram (2 Of 5)

G02839770

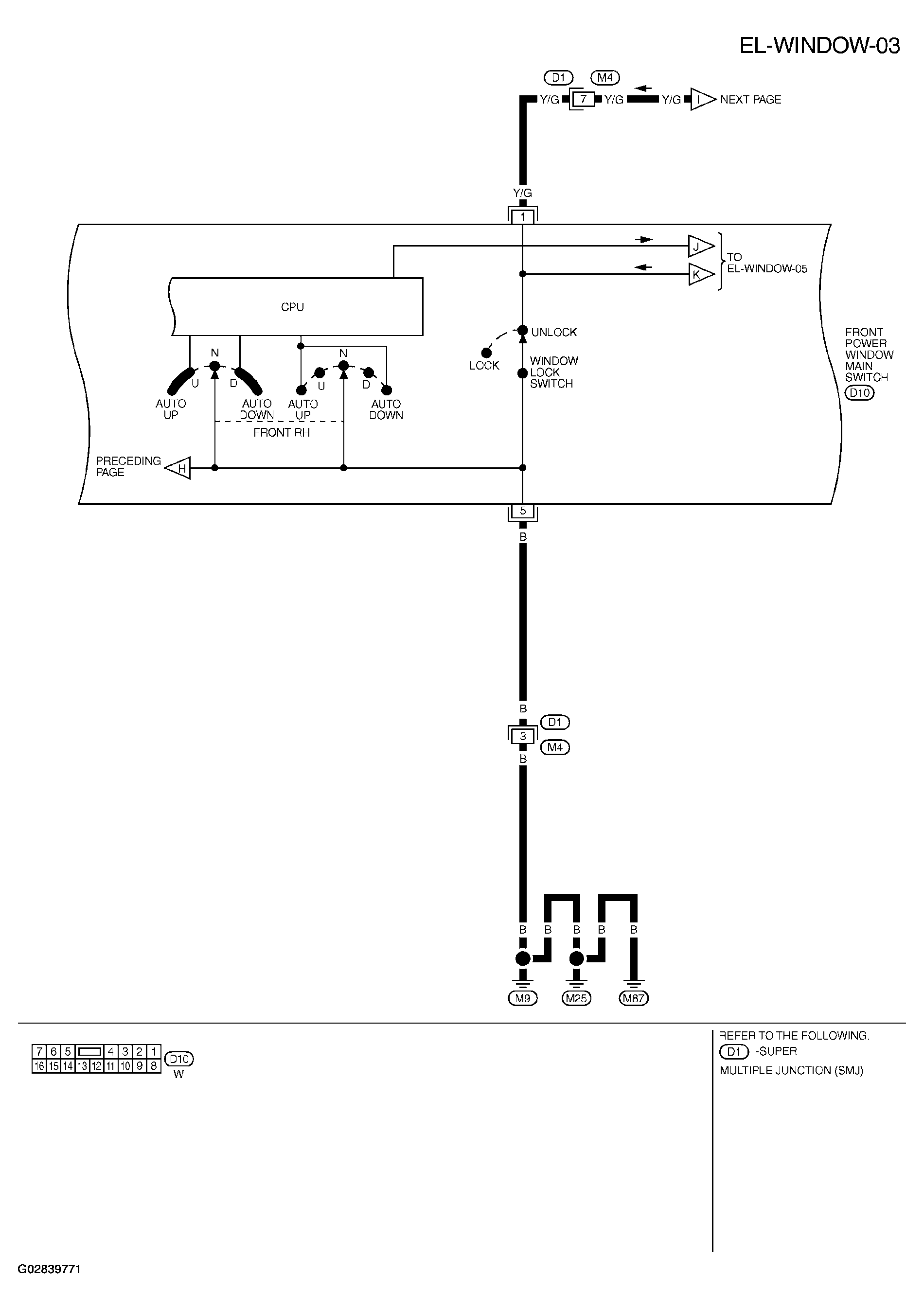

Fig 3: Power Window Wiring Diagram (3 Of 5)

G02839771

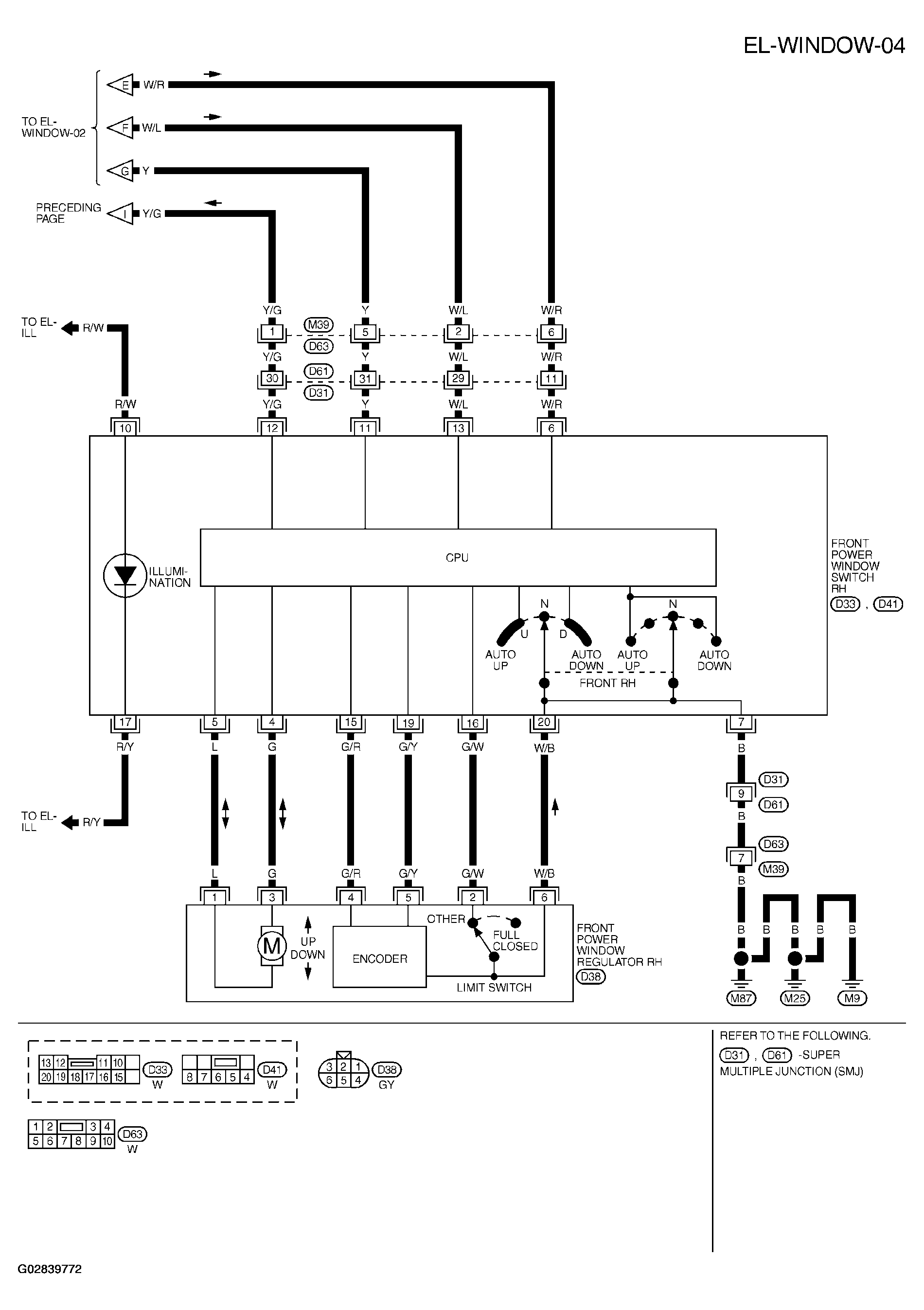

Fig 4: Power Window Wiring Diagram (4 Of 5)

G02839772

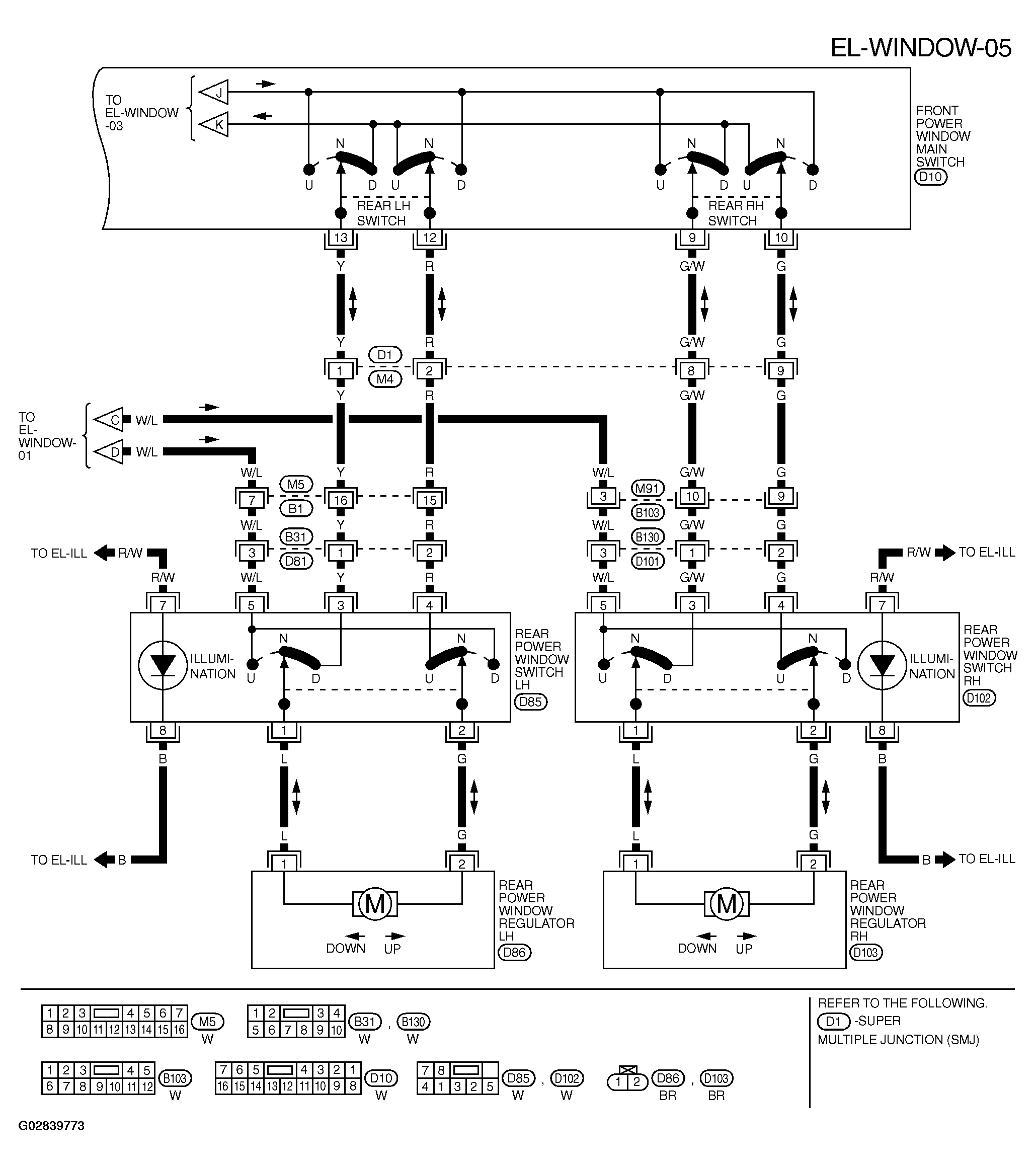

Fig 5: Power Window Wiring Diagram (5 Of 5)

G02839773
