Consult-II Inspection Procedure: Notes

  1. Turn the ignition switch "OFF".
  2. Connect "CONSULT-II" to the data link connector.

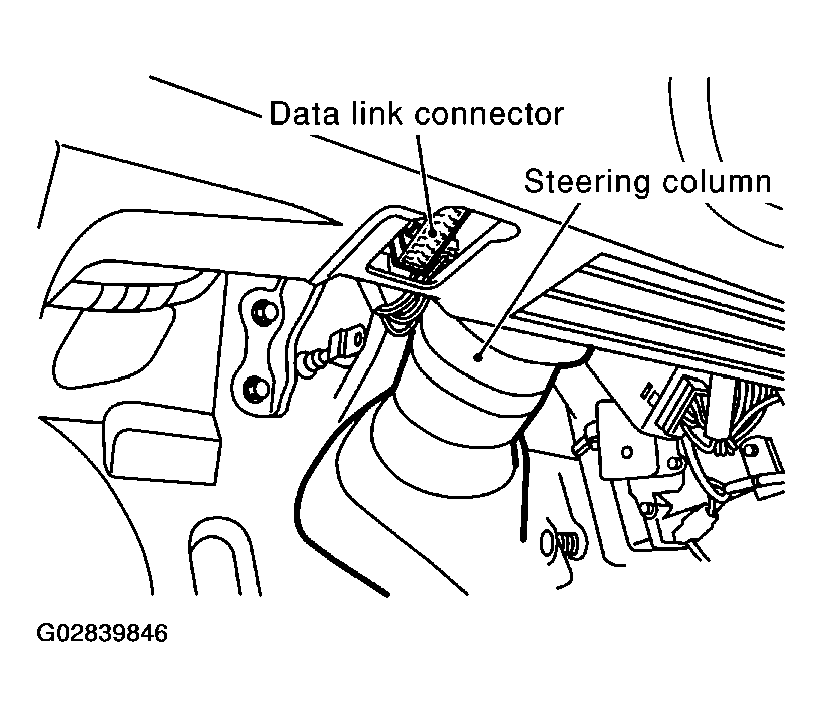

    Fig 1: Connecting CONSULT-II To Data Link Connector
    G02839846
  3. Turn ignition switch "ON".
  4. Touch "START".

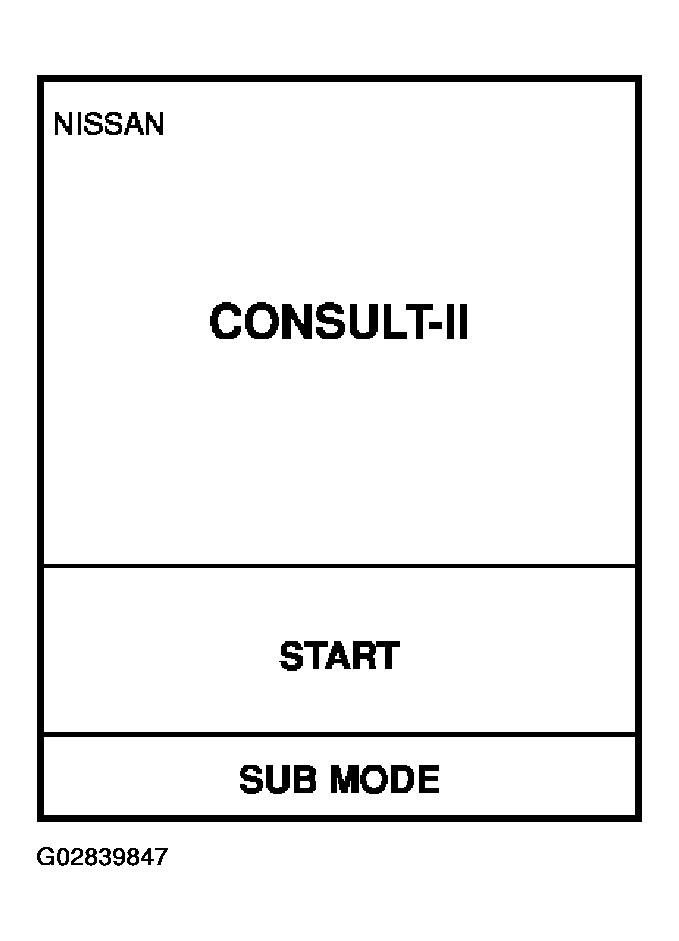

    Fig 2: Displaying Start
    G02839847
  5. Touch "SMART ENTRANCE".

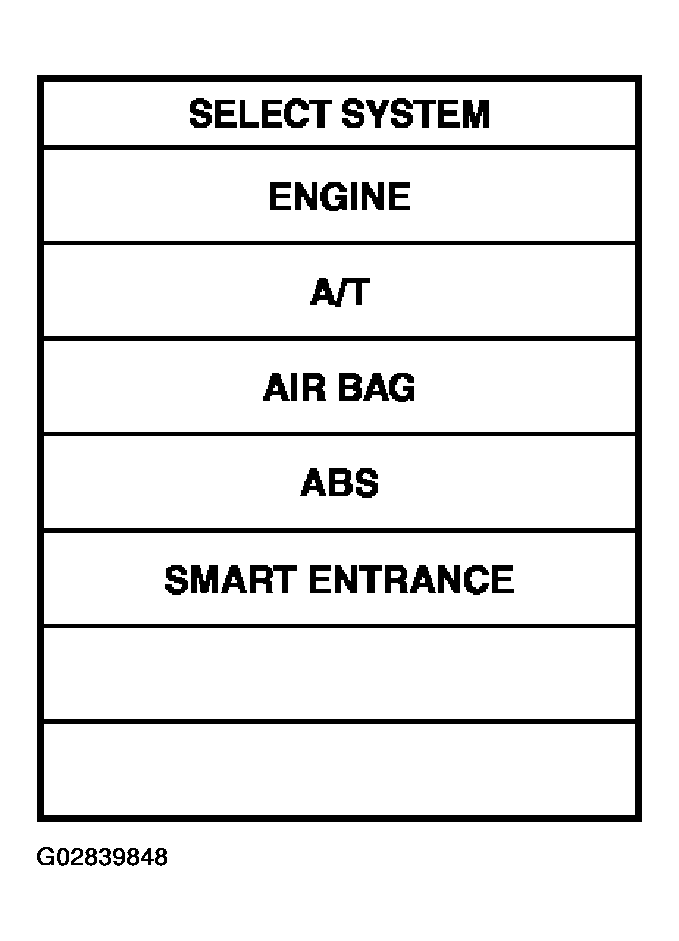

    Fig 3: Displaying Smart Entrance
    G02839848
  6. Perform each diagnostic item according to "DIAGNOSTIC ITEMS APPLICATION  ".

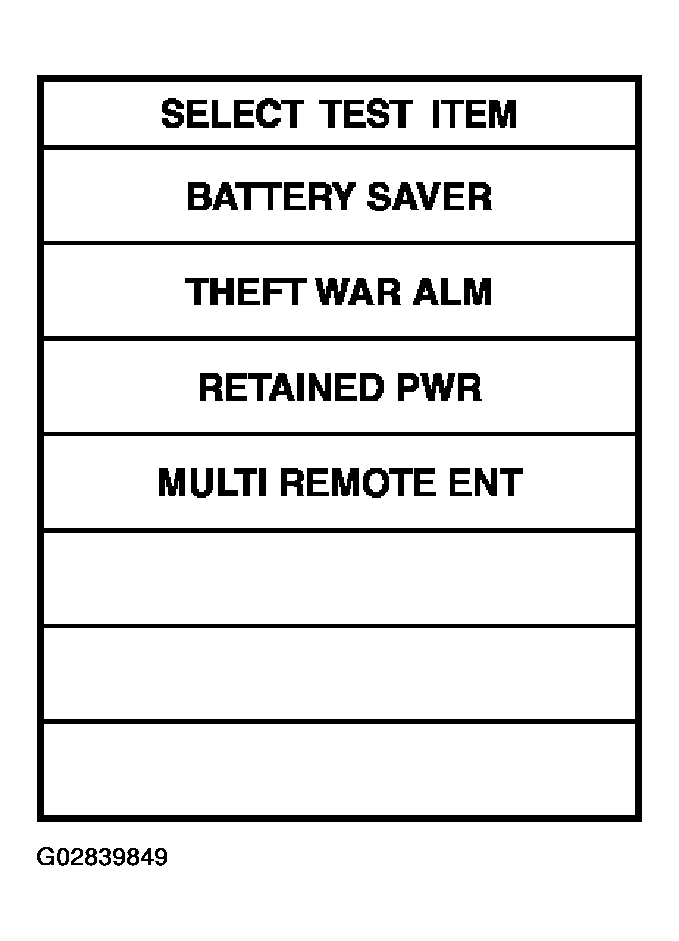

    Fig 4: Displaying Select Test Item
    G02839849
