Main Power Supply & Ground Circuit Check

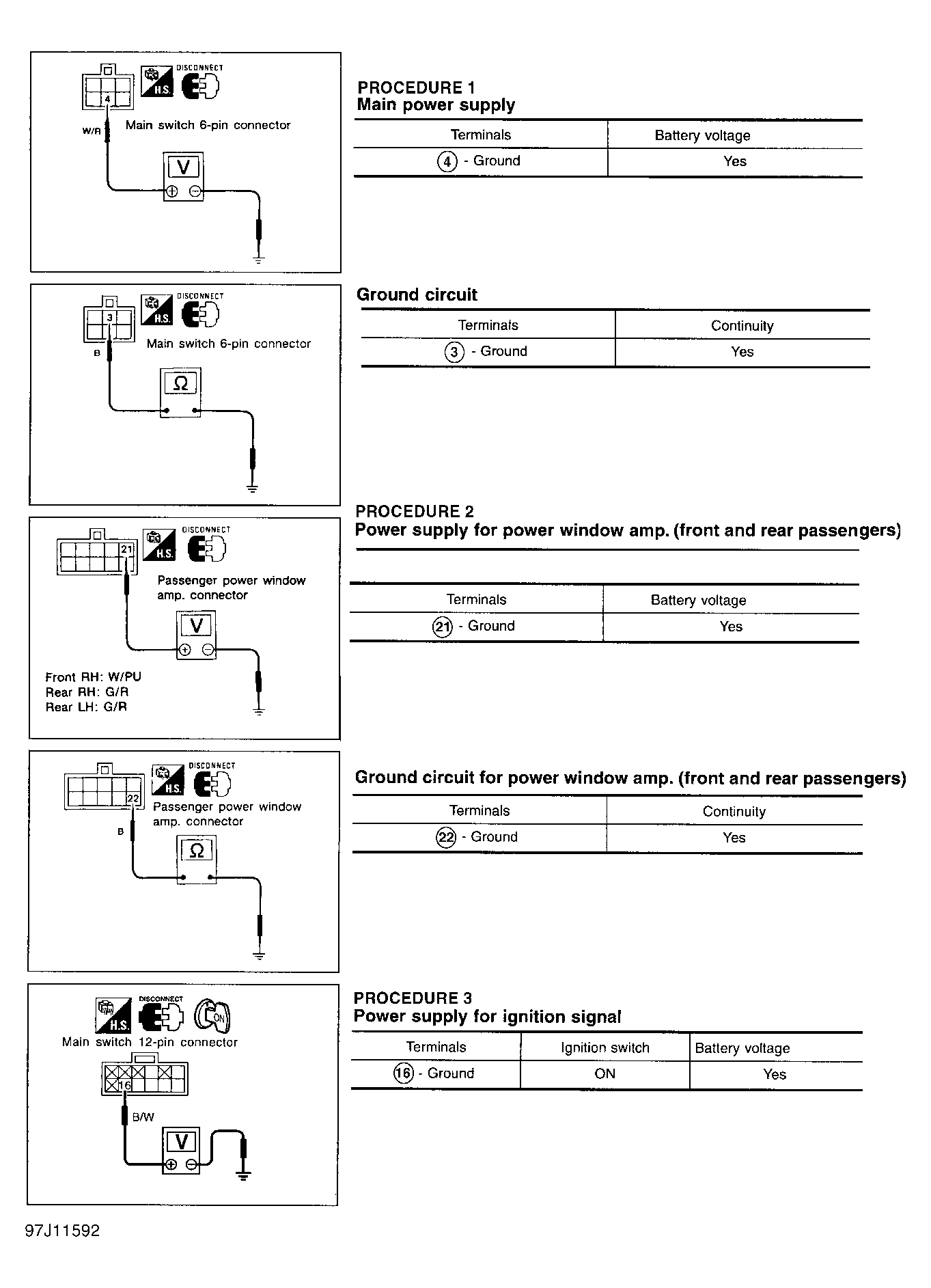

Fig 1: Main Power Supply & Ground Circuit Check

G97J11592

Courtesy of NISSAN MOTOR CO., U.S.A.
