Diagnostic Procedure 2: Passenger-Side Power Windows Inoperative

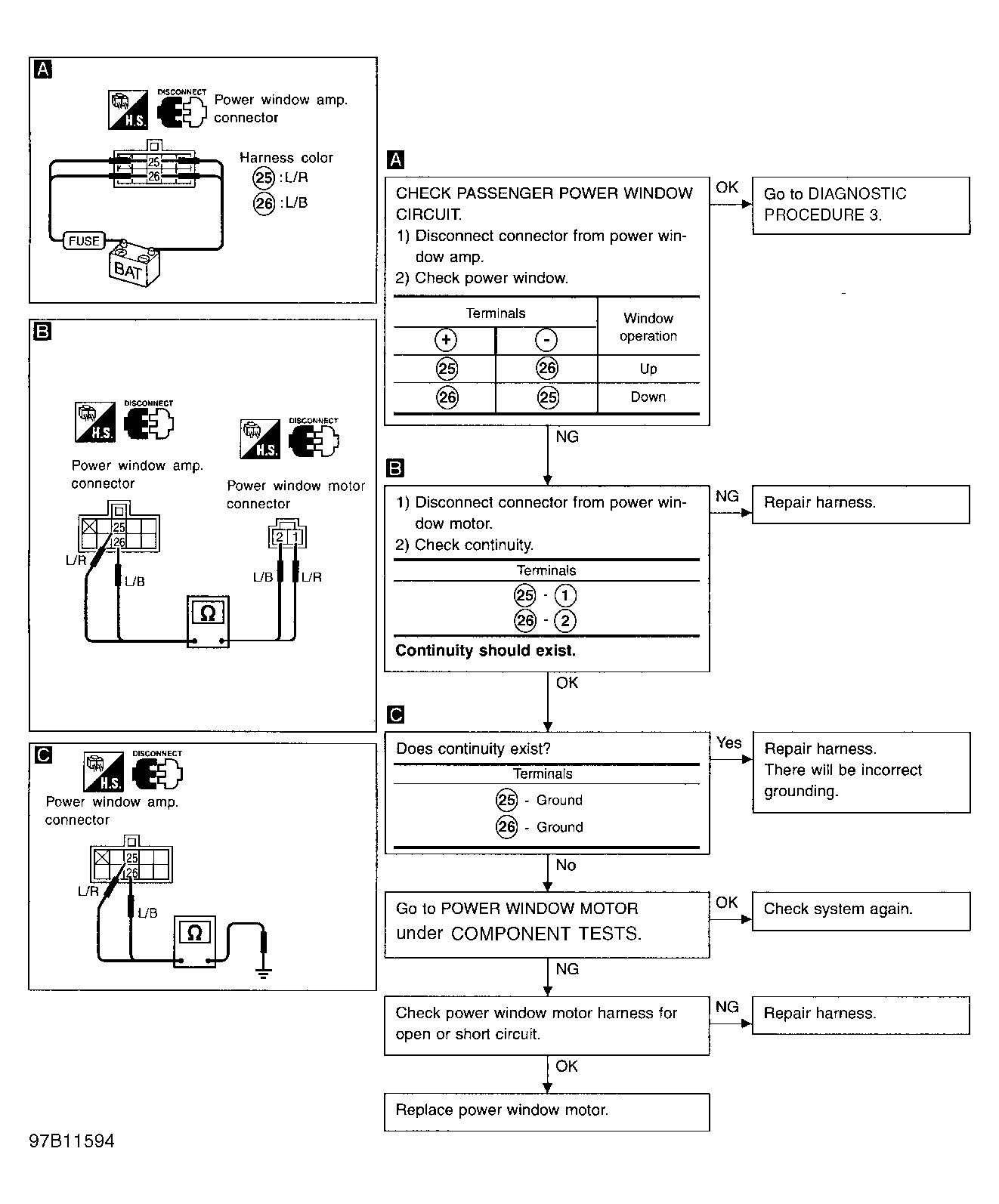

Fig 1: Diagnostic Procedure 2 - Passenger-Side Power Windows Inoperative

G97B11594

Courtesy of NISSAN MOTOR CO., U.S.A.
