Diagnostic Procedure 5: Power Window Regulator Check

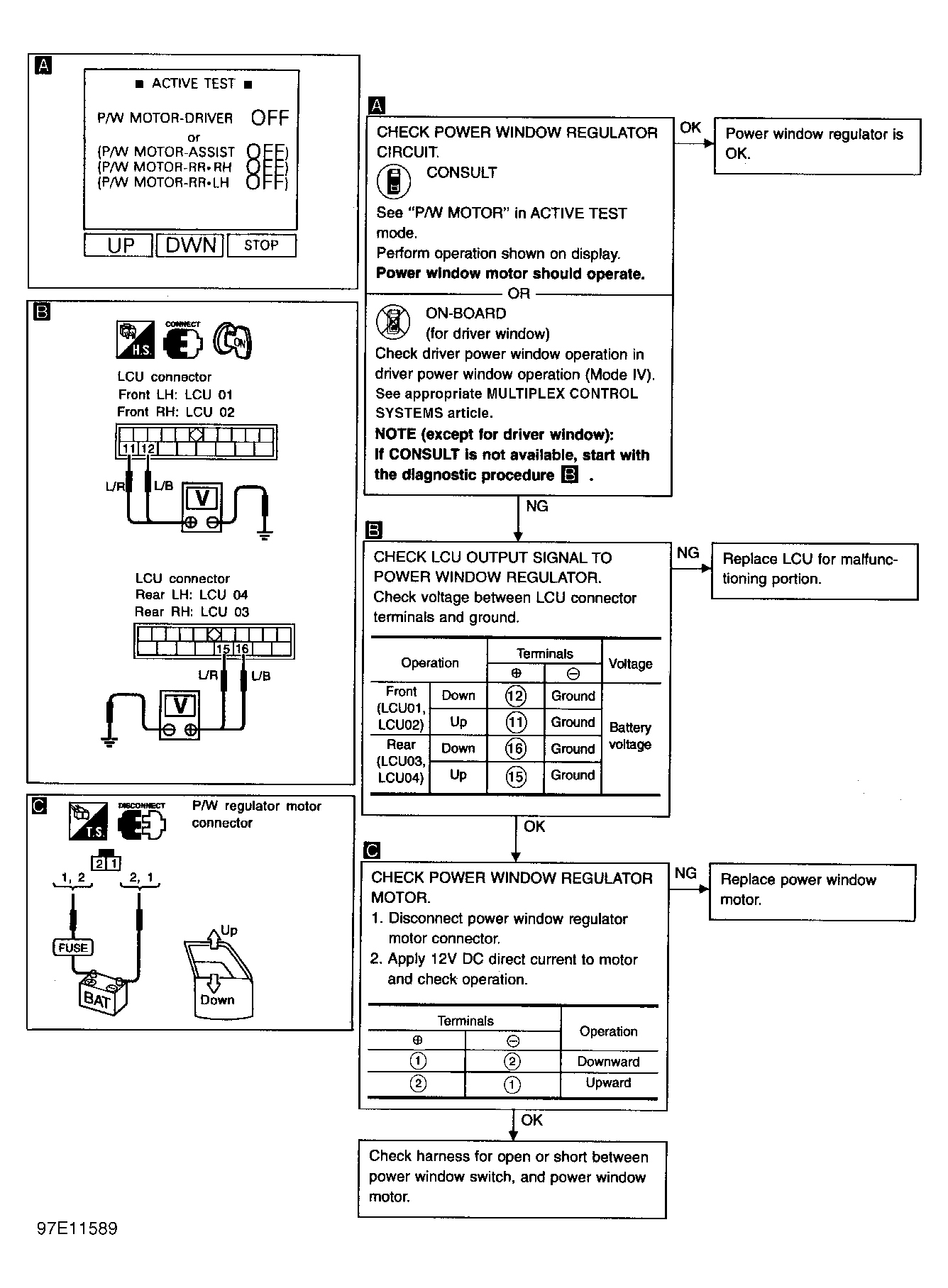

Fig 1: Diagnostic Procedure 5 - Power Window Regulator Check

G97E11589

Courtesy of NISSAN MOTOR CO., U.S.A.
