Home >> Hyundai >> 2024 >> Tucson Plug-In Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (2 Of 8) >> DTC P013E-00: O2 Sensor Delayed Response - Rich To Lean Bank 1 Sensor 2 >> Troubleshooting >> Diagnostic Flowchart

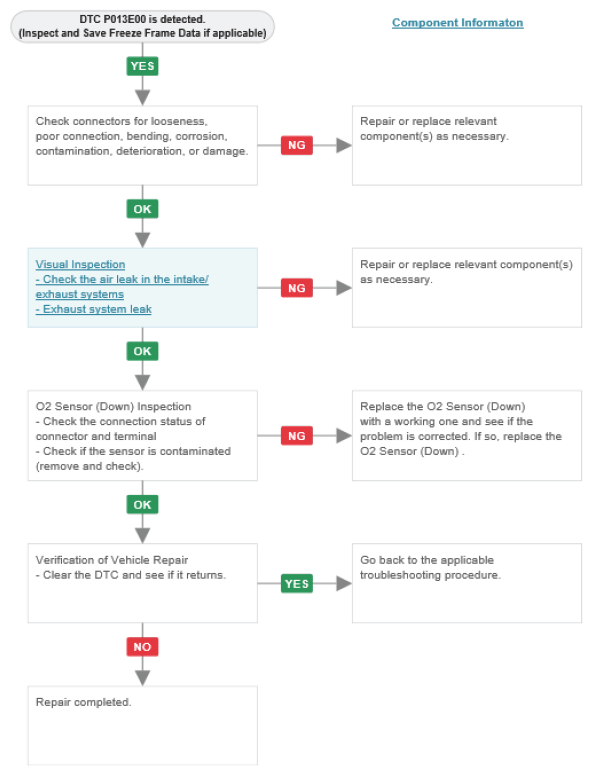

Diagnostic Flowchart

G16170416Courtesy of HYUNDAI MOTOR AMERICA
