Repair Procedures: Removal

  1. Disconnect the 12V battery (Lithium Polymer Type) (+) connector.
  2. Remove the Shift by wire Control Unit (SCU).

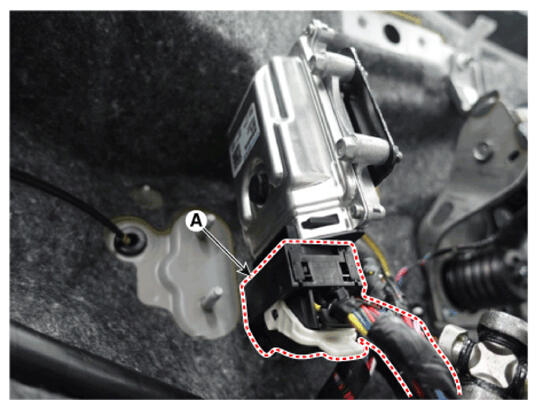

    1. Disconnect the connector (A).
      G16801346Courtesy of HYUNDAI MOTOR AMERICA

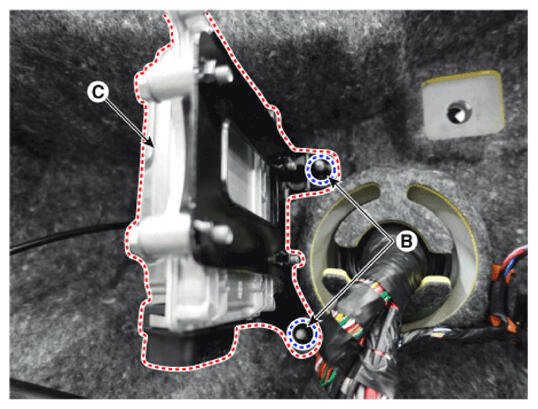

    2. Loosen the bolts (B) and then removing the SCU (C).
G16801347Courtesy of HYUNDAI MOTOR AMERICA
