IMS Button

  1. Disconnect the 12V battery (-) terminal.

    (Refer to Vehicle Control System - " AUXILIARY BATTERY (12V)  ")

  2. Remove the front dear trim.

    (Refer to Front Door - " FRONT DOOR TRIM  ")

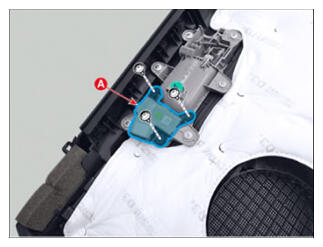

  3. Remove the IMS switch (A), after removing the screws.
    G16203955Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
