Ioniq 6 Limited, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Driver & Driving Assistance System
>>
Integrated Memory System
>>
Connector And Terminal Information
>>
IMS Button
IMS Button
Courtesy of HYUNDAI MOTOR AMERICA

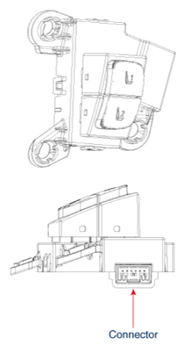

Connector
Pin No
Function
Courtesy of HYUNDAI MOTOR AMERICA
1
Tail Lamp Illumination (+)
2
-
3
IMS switch
4
-
5
Ground
6
Illumination (-)
Courtesy of HYUNDAI MOTOR AMERICA
