Repair Procedures: Removal

Move the shift lever to "N".
Turn ignition OFF switch and the disconnect the negative (-) battery terminal.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

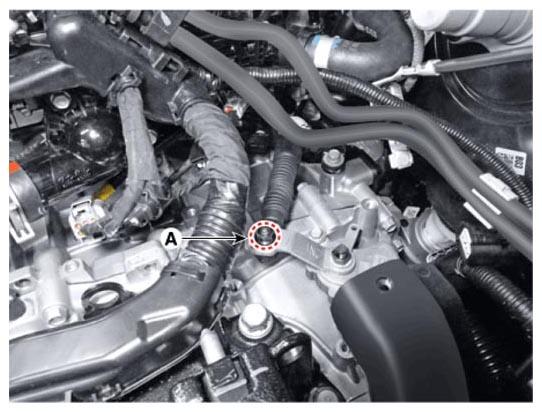

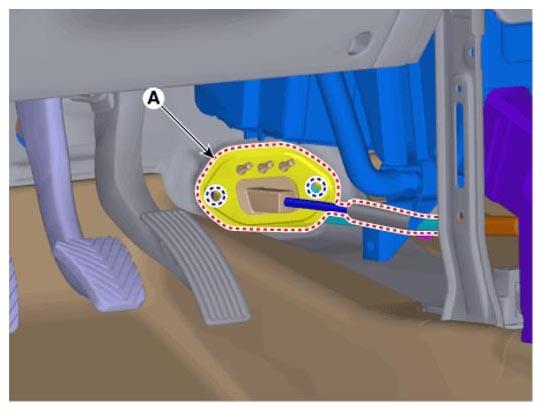

Disconnect the shift cable mounting nut (A).

Courtesy of HYUNDAI MOTOR AMERICA

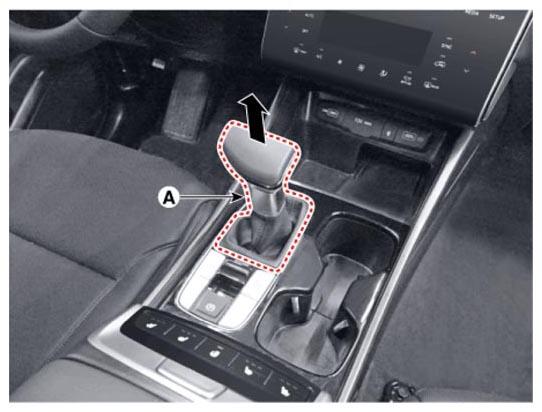

Remove the shift knob & boots (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

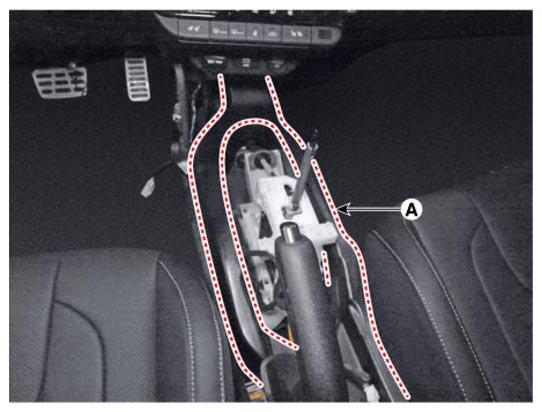

Remove the floor console air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

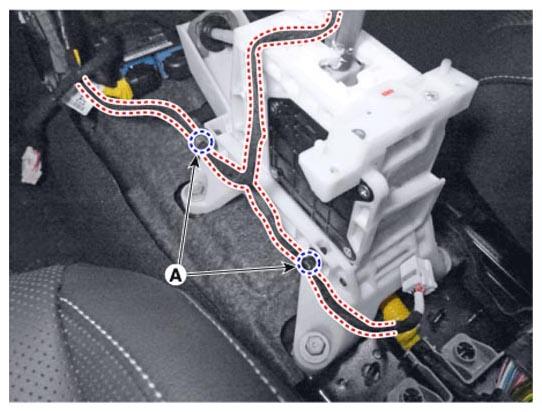

Disconnect the wiring clip (A).

Courtesy of HYUNDAI MOTOR AMERICA

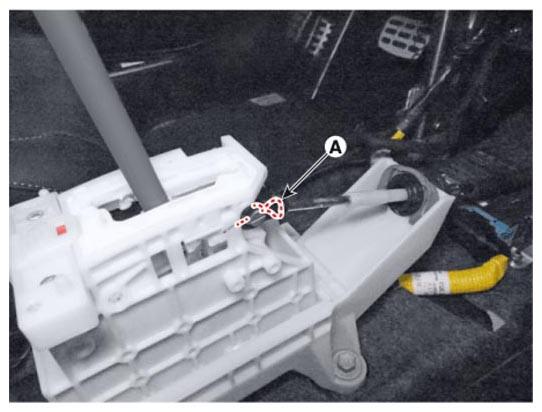

Remove the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

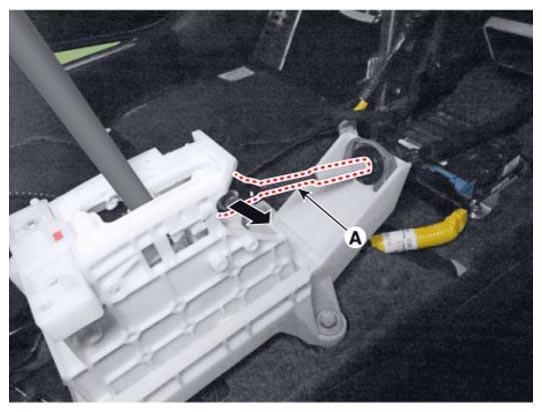

Disconnect the shift cable end (A).

Courtesy of HYUNDAI MOTOR AMERICA

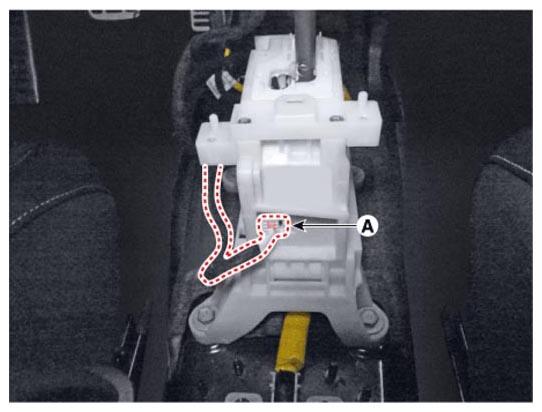

Disconnect the shift cable socket (A).

Courtesy of HYUNDAI MOTOR AMERICA

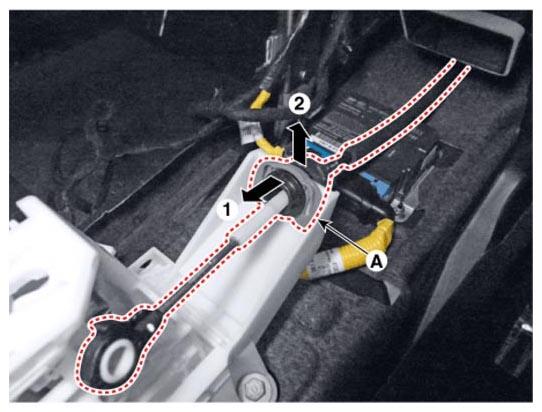

Loosen the nuts and then remove the cable retainer (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift cable by pulling it to inward.
