Schematic Diagram

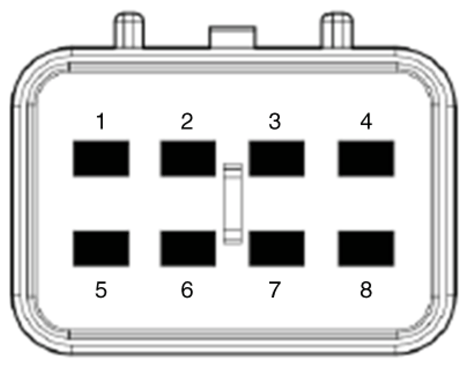

Connector	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-
	2	-
	3	-
	4	-
	5	Power 5V
	6	Ground
	7	Signal 1
	8	Signal2

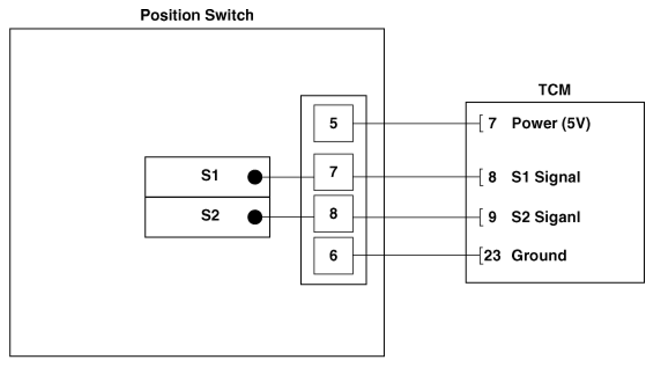

G16772534

Courtesy of HYUNDAI MOTOR AMERICA
