Repair Procedures: Removal: Notes
- Disconnect the battery (-) cable.
- Turn the steering wheel so that the front wheels are facing straight ahead.
- Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

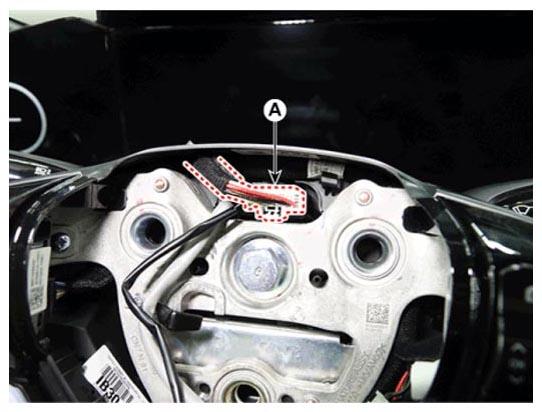

- Disconnect the steering wheel connector (A).

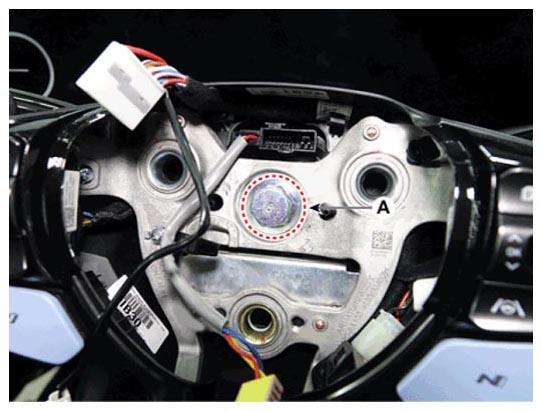

- Remove the steering wheel after loosening the steering wheel lock bolt (A).
Tightening torque:
44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)
NOTE:
- Do not reuse the steering lock bolt.

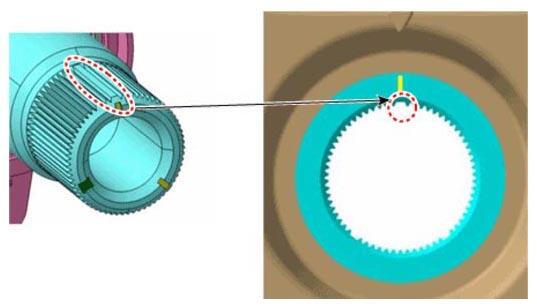

- When assembling, match the gear teeth as the below illustration.
