Diagnostic Flowchart

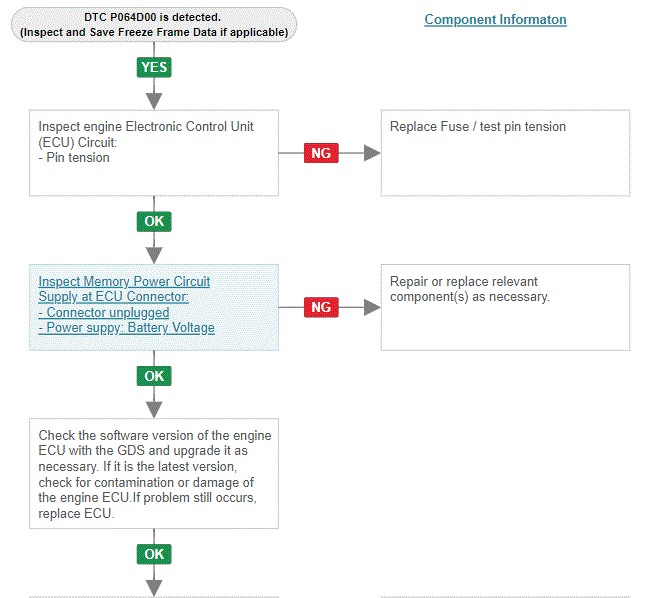

Fig 1: 1 Of 2
G16158153Courtesy of HYUNDAI MOTOR AMERICA

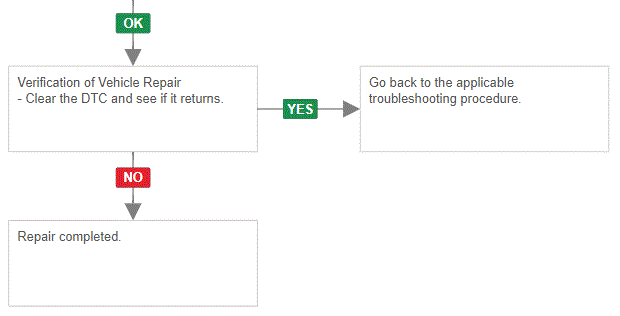

Fig 2: 2 Of 2
G00665331Courtesy of HYUNDAI MOTOR AMERICA
