Integrated Body Control Unit (IBU)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX ")

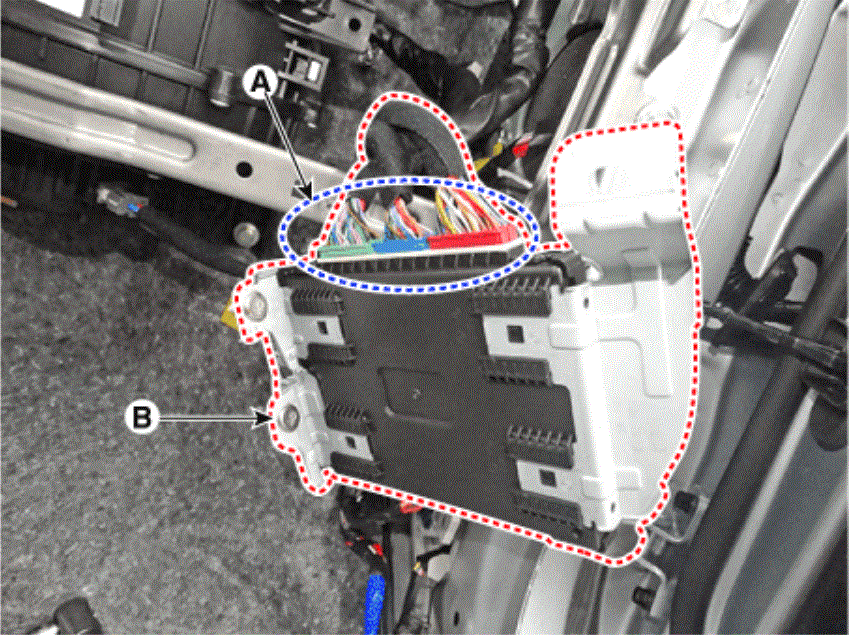

  3. Remove the smart key unit (B) after loosening mounting bolts and disconnecting the connector (A).
G16148760Courtesy of HYUNDAI MOTOR AMERICA
