Smart Key Status Check

  1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.
  2. Select the 'S/W Management' and 'Car model'.

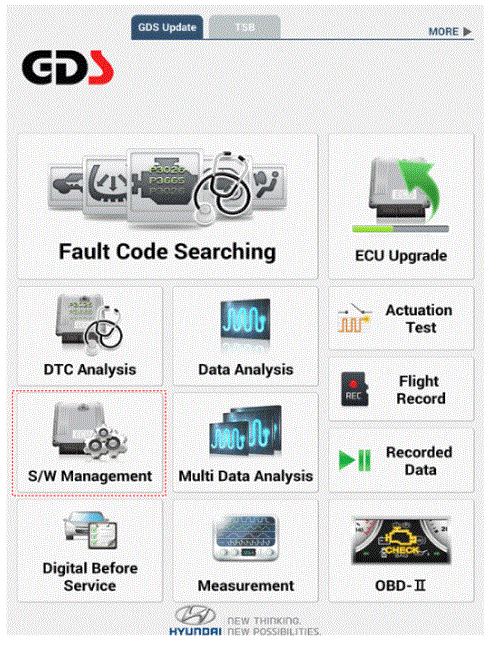

    G16148774Courtesy of HYUNDAI MOTOR AMERICA
  3. Select the 'Smart Key Unit' and 'SMK STATUS INFORMATION'.

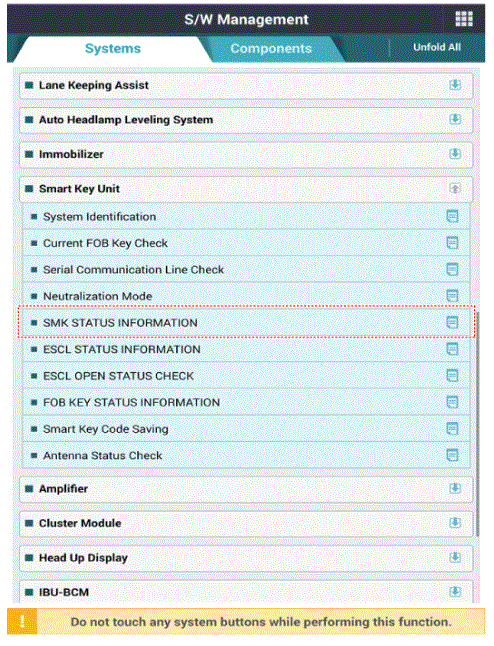

G16148775Courtesy of HYUNDAI MOTOR AMERICA

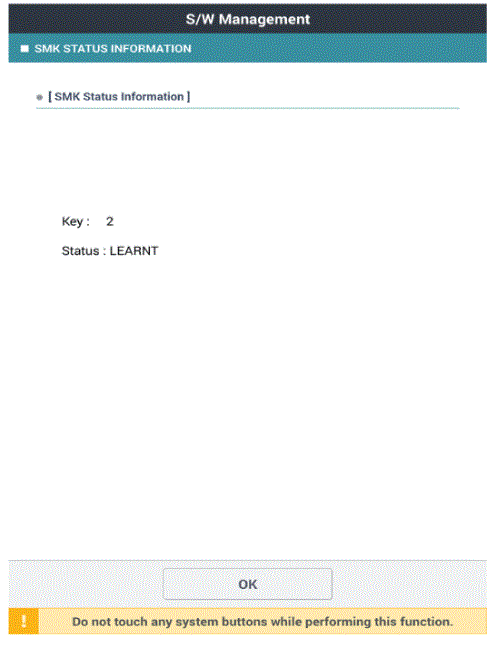

G16148776Courtesy of HYUNDAI MOTOR AMERICA
