Neutralization Status Check

  1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.

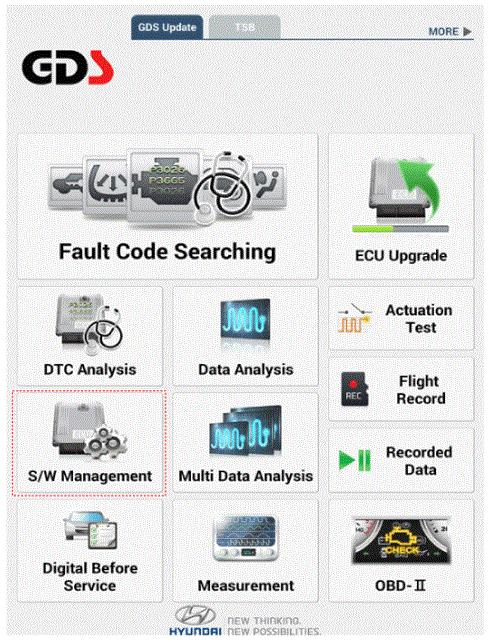

  2. Select the 'S/W Management' and 'Car model'.
    G16148777Courtesy of HYUNDAI MOTOR AMERICA

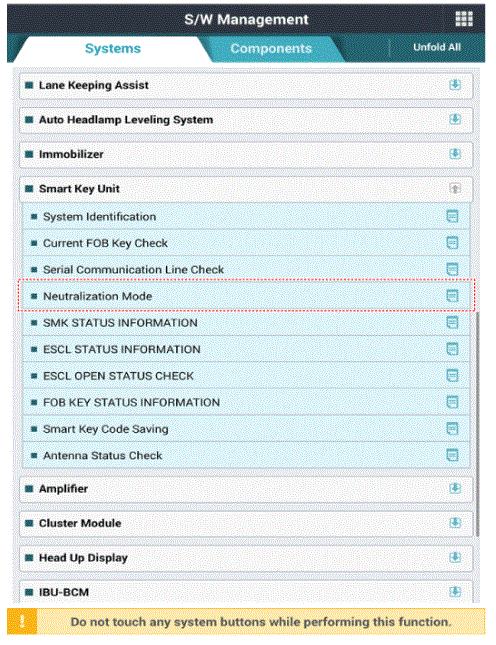

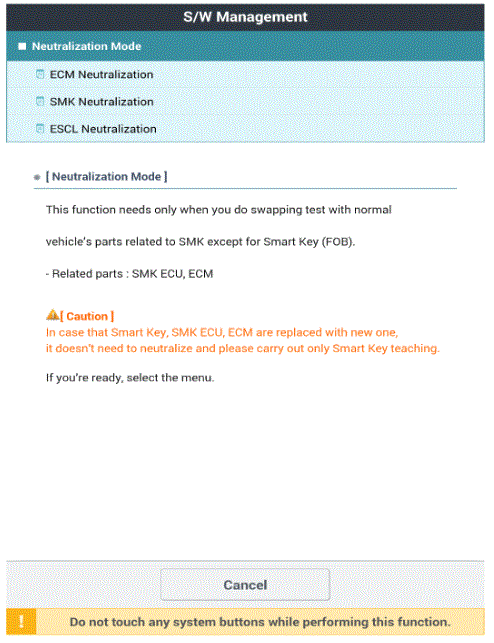

  3. Select the 'Smart Key Unit' and 'Neutralization Mode'.
G16148778Courtesy of HYUNDAI MOTOR AMERICA
G16148779Courtesy of HYUNDAI MOTOR AMERICA
